FRONT WHEEL

VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA

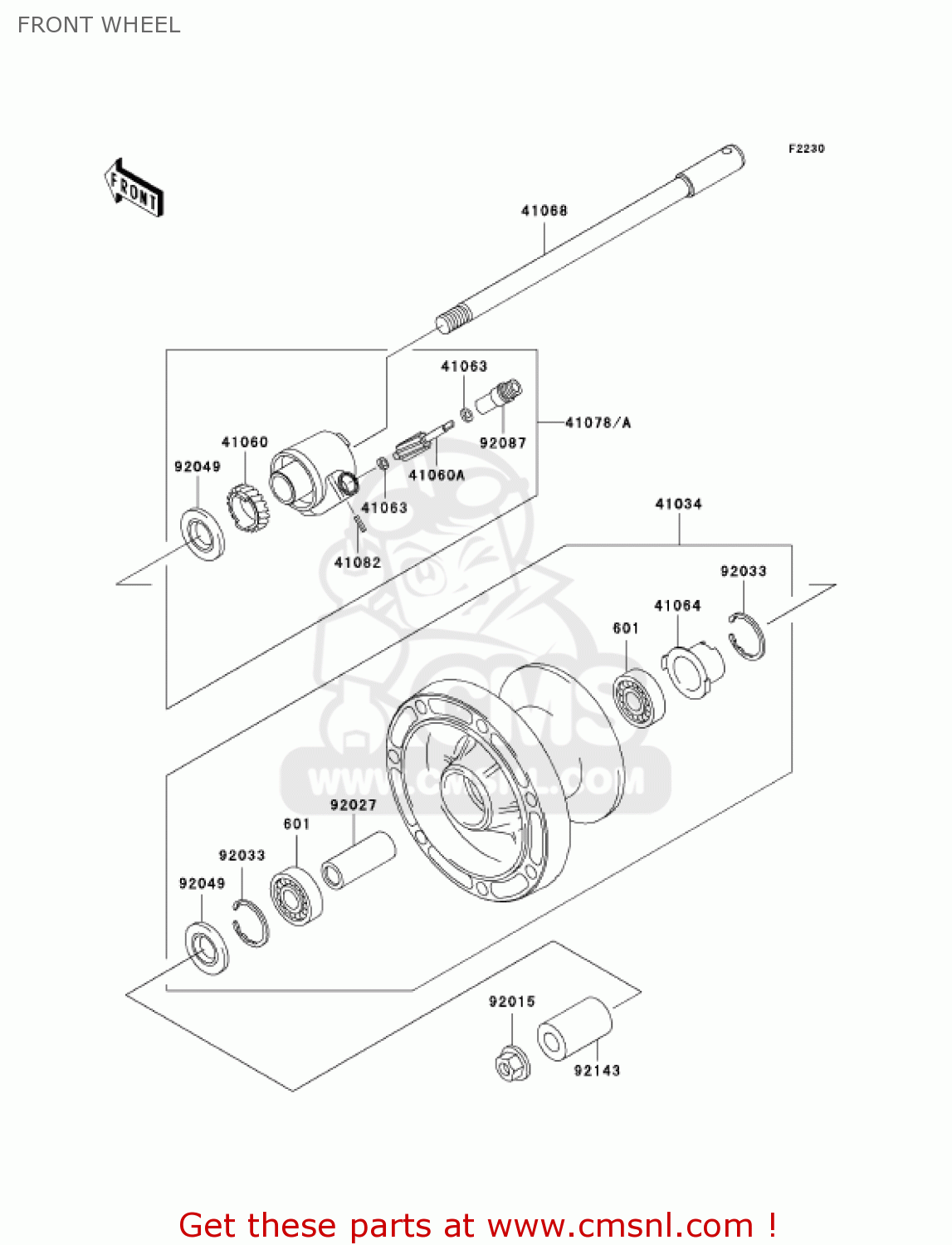

Front wheel diagram VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

601

601B6004UU
ref: 601

BEARING-BALL,#6004UUC

€ 27.00

41034

410341259
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 577.00

41060

410601160
ref: 41060

GEAR-METER SCREW,25T

€ 17.50

41060A

410601161
ref: 41060A

GEAR-METER SCREW,9T

€ 17.50

41063

41063001
ref: 41063

WASHER-THRST SPD PINI

€ 3.00

41064

410641056
ref: 41064

RECEIVER-SPEEDOMETER

€ 16.00

41068

410681378
ref: 41068

AXLE,FR

€ 61.50

41078A

410781107
ref: 41078A

CASE-ASSY-METER GEAR

€ 117.00

41082

41082001
ref: 41082

PIN-SPRING

€ 2.50

92015

920151993
ref: 92015

NUT,FLANGED,18MM

€ 6.50

92027

920271752
ref: 92027

COLLAR,20.2X28X70

€ 13.00

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92049

920491057
ref: 92049

OIL SEAL,BJN30427-C3

€ 7.50

92087

920871056
ref: 92087

BUSHING-METER GEAR

€ 14.00

92143

921431837
ref: 92143

COLLAR,FR AXLE,LH,L=4

€ 21.50

FRONT WHEEL

all assemblies
