RIGHT ENGINE COVER(S)

VN1500E2 VULCAN 1500 CLASSIC 1999 USA CALIFORNIA CANADA

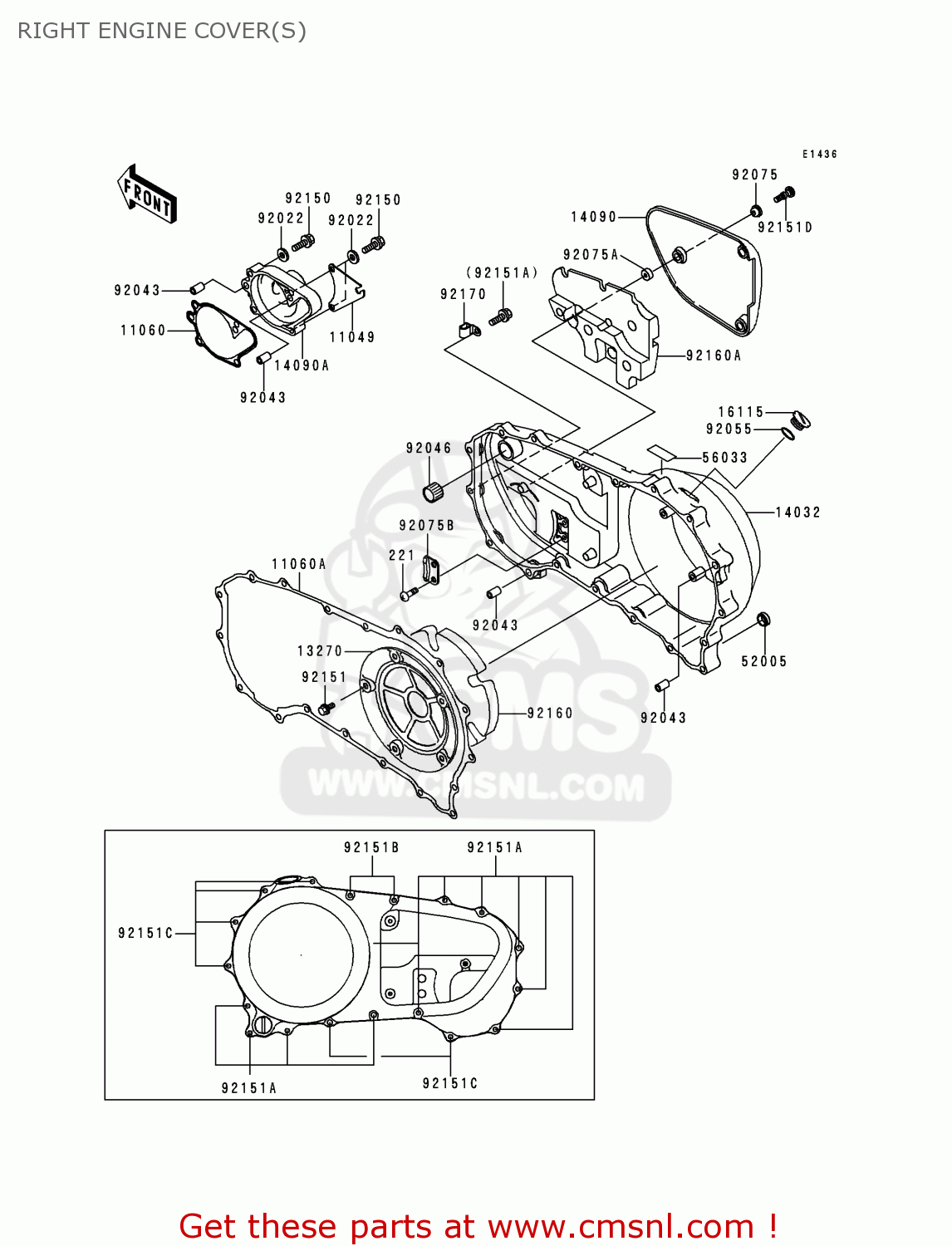

Right engine cover(s) diagram VN1500E2 VULCAN 1500 CLASSIC 1999 USA CALIFORNIA CANADA

RIGHT ENGINE COVER(S) VN1500E2 VULCAN 1500 CLASSIC 1999 USA CALIFORNIA CANADA
RIGHT ENGINE COVER(S) VN1500E2 VULCAN 1500 CLASSIC 1999 USA CALIFORNIA CANADA
RIGHT ENGINE COVER(S) VN1500E2 VULCAN 1500 CLASSIC 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
221
221B0612
ref: 221
SCREW-CNTSNK HD,6X12
221B0612
€ 1.50
11049
110491789
ref: 11049
BRACKET
110491789
€ 4.00
11060
110601124
ref: 11060
GASKET,WATER PUMP COV (NAS)
110601124
€ 8.00
11060A
110601879
ref: 11060A
GASKET,CLUTCH COVER (NAS)
110601879
€ 30.00
13270
132701592
ref: 13270
PLATE
€ 14.00
14032
140321493
ref: 14032
COVER-CLUTCH
€ 664.50
14090
140901678
ref: 14090
COVER,CLUTCH OUTER
€ 146.00
14090A
140901932
ref: 14090A
COVER,WATER PUMP
140901932
€ 44.50
16115
161151063
ref: 16115
CAP-OIL FILLER
161151063
€ 19.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
520051009
€ 12.00
56033
560331156
ref: 56033
LABEL-MANUAL,OIL CAPA
€ 4.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
92022077
€ 0.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92046
920461163
ref: 92046
BEARING-NEEDLE,HK1212
920461163
€ 13.50
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92075
920751855
ref: 92075
DAMPER
920751855
€ 5.50
92075A
920751856
ref: 92075A
DAMPER
920751856
€ 6.00
92075B
920751905
ref: 92075B
DAMPER
920751905
€ 6.00
92150
921501021
ref: 92150
BOLT,6X30
921501021
€ 2.50
92151
921511064
ref: 92151
BOLT,6X10
921511064
€ 1.50
92151A
921511130
ref: 92151A
BOLT,6X25
921511130
€ 2.00
92151B
921511134
ref: 92151B
BOLT,6X30
921511134
€ 1.50
92151C
921511135
ref: 92151C
BOLT,6X35
921511135
€ 2.50
92151D
921511273
ref: 92151D
BOLT,SOCKET,6X22.5
€ 4.50
92160
921601716
ref: 92160
DAMPER
921601716
€ 18.00
92160A
921601717
ref: 92160A
DAMPER
€ 28.00
92170
921701804
ref: 92170
CLAMP
921701804
€ 3.00
