FUEL EVAPORATIVE SYSTEM

VN1500E2 VULCAN 1500 CLASSIC 1999 USA CALIFORNIA CANADA

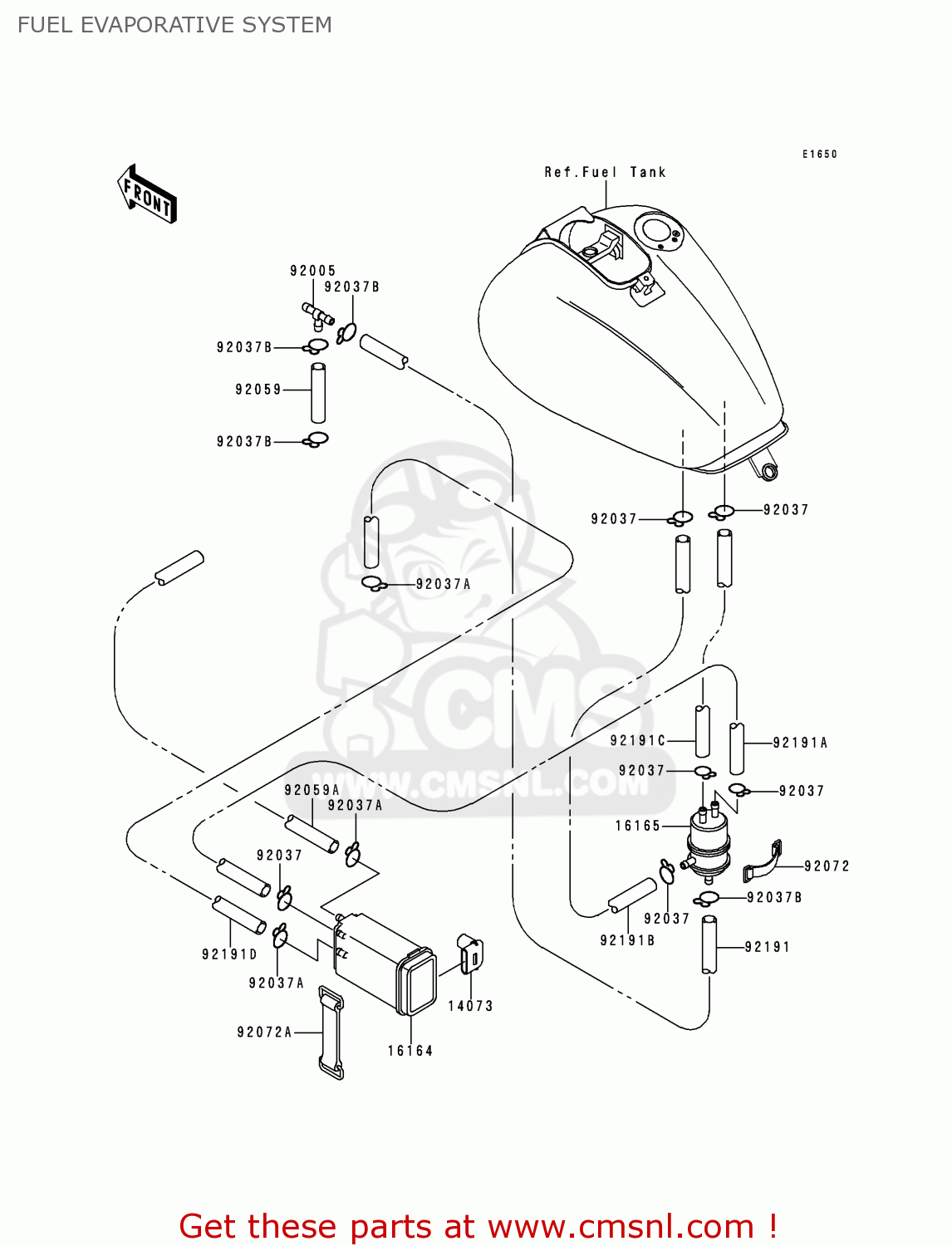

Fuel evaporative system diagram VN1500E2 VULCAN 1500 CLASSIC 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

14073

140731219
ref: 14073
CA

CANISTER DUCT

€ 10.00

16164

161641070
ref: 16164
CA

CANISTER

€ 125.50

16165

161651001
ref: 16165
CA

SEPARATOR

€ 69.50

92005

920051017
ref: 92005
CA

FITTING,TUBE

€ 6.50

92037

92037010
ref: 92037
CA

CLAMP-FUEL PIPE

€ 2.50

92037A

920371104
ref: 92037A
CA

CLAMP,HOSE

€ 1.00

92037B

920371712
ref: 92037B
CA

CLAMP

€ 3.00

92059

920591193
ref: 92059
CA

TUBE

€ 12.50

92059A

920591398
ref: 92059A
CA

TUBE,7X12X740

€ 28.00

92072

92072066
ref: 92072
CA

BAND,L=50

€ 11.00

92072A

920721188
ref: 92072A
CA

BAND

€ 9.50

92191

921911062
ref: 92191
CA

TUBE,WHITE

€ 12.50

92191A

921911070
ref: 92191A
CA

TUBE,5X8X232,BLUE

€ 6.50

92191B

921911120
ref: 92191B
CA

TANK-SEPARATOR TUBE,R

€ 6.50

92191C

921911121
ref: 92191C
CA

TANK-SEPARATOR TUBE,B

€ 19.50

92191D

921911267
ref: 92191D
CA

TUBE

€ 14.00

FUEL EVAPORATIVE SYSTEM

all assemblies
