Genuine VN Kawasaki Parts delivered quickly!


LEFT ENGINE COVER(S)

VN1500E2 VULCAN 1500 CLASSIC 1999 USA CALIFORNIA CANADA

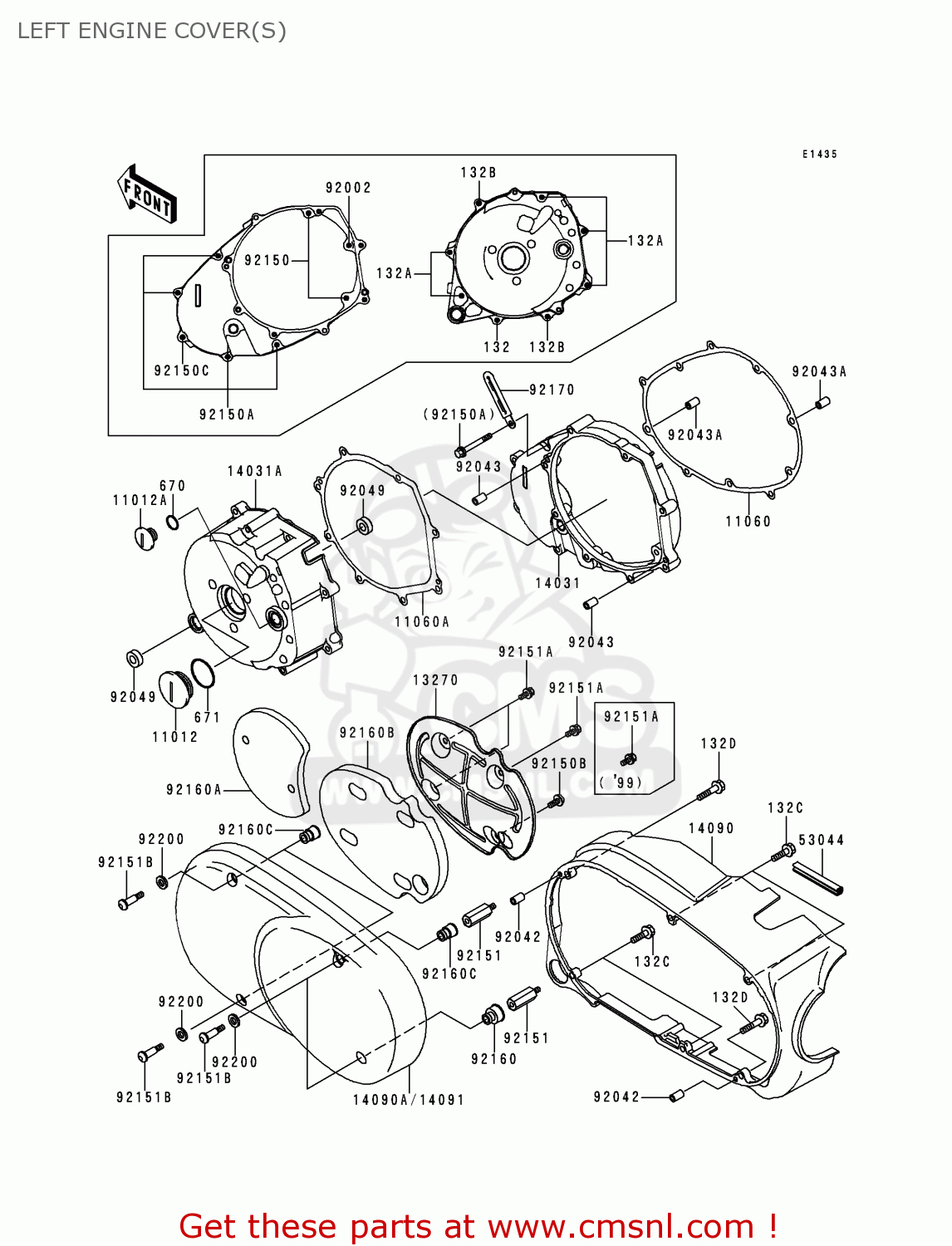

Left engine cover(s) diagram VN1500E2 VULCAN 1500 CLASSIC 1999 USA CALIFORNIA CANADA

LEFT ENGINE COVER(S) VN1500E2 VULCAN 1500 CLASSIC 1999 USA CALIFORNIA CANADA
LEFT ENGINE COVER(S) VN1500E2 VULCAN 1500 CLASSIC 1999 USA CALIFORNIA CANADA
LEFT ENGINE COVER(S) VN1500E2 VULCAN 1500 CLASSIC 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
132J0620
€ 2.00
132A
132J0630
ref: 132A
BOLT-FLANGED-SMALL
132J0630
€ 2.50
132B
132J0660
ref: 132B
BOLT-FLANGED-SMALL
132J0660
€ 3.50
132C
132V0620
ref: 132C
BOLT-FLANGED-SMALL
132V0620
€ 1.50
132D
132V0630
ref: 132D
BOLT-FLANGED-SMALL
132V0630
€ 1.50
670
670B2018
ref: 670
O RING,18MM
670B2018
€ 1.00
671
671B2540
ref: 671
O RING,40MM
671B2540
€ 4.00
11012
110121362
ref: 11012
CAP
110121362
€ 6.00
11012A
110121363
ref: 11012A
CAP,TOP MARK
110121363
€ 4.00
11060
110601838
ref: 11060
GASKET,GENERATOR COVE (NAS)
€ 16.50
11060A
110601839
ref: 11060A
GASKET,GENERATOR COVE (NAS)
110601839
€ 16.00
13270
132701593
ref: 13270
PLATE
€ 19.50
14031
140311348
ref: 14031
COVER-GENERATOR,INNER
140311348
€ 121.50
14031A
140311349
ref: 14031A
COVER-GENERATOR,OUTER
140311349
€ 220.00
14090
140901881
ref: 14090
COVER,LH,INNER
€ 104.00
14090A
140901882
ref: 14090A
COVER,LH,OUTER
€ 473.00
53044
530441312
ref: 53044
TRIM
€ 3.00
92002
920021566
ref: 92002
BOLT,6X40
920021566
€ 3.00
92042
92042016
ref: 92042
PIN,DOWEL,6X16
92042016
€ 3.50
92043
920431262
ref: 92043
PIN,DOWEL,4.2X6X12
920431262
€ 2.50
92043A
920431263
ref: 92043A
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92049
920491398
ref: 92049
SEAL-OIL,VB13193
920491398
€ 4.00
92150
921501021
ref: 92150
BOLT,6X30
921501021
€ 2.50
92150A
921501779
ref: 92150A
BOLT,6X25
921501779
€ 2.50
92150C
921501967
ref: 92150C
BOLT
921501967
€ 2.50
92151
921511062
ref: 92151
BOLT
921511062
€ 10.50
92151A
921511064
ref: 92151A
BOLT,6X10
921511064
€ 1.50
92151B
921511274
ref: 92151B
BOLT,L=31
€ 4.00
92160
921601718
ref: 92160
DAMPER
921601718
€ 4.50
92160A
921601719
ref: 92160A
DAMPER
921601719
€ 14.50
92160B
921601720
ref: 92160B
DAMPER
€ 29.00
92160C
921601730
ref: 92160C
DAMPER
921601730
€ 5.00
92170
921701514
ref: 92170
CLAMP
921701514
€ 2.50
92200
922001296
ref: 92200
WASHER
922001296
€ 2.00
