IGNITION SWITCH/LOCKS/REFLECTORS

VN1500E2 VULCAN 1500 CLASSIC 1999 USA CALIFORNIA CANADA

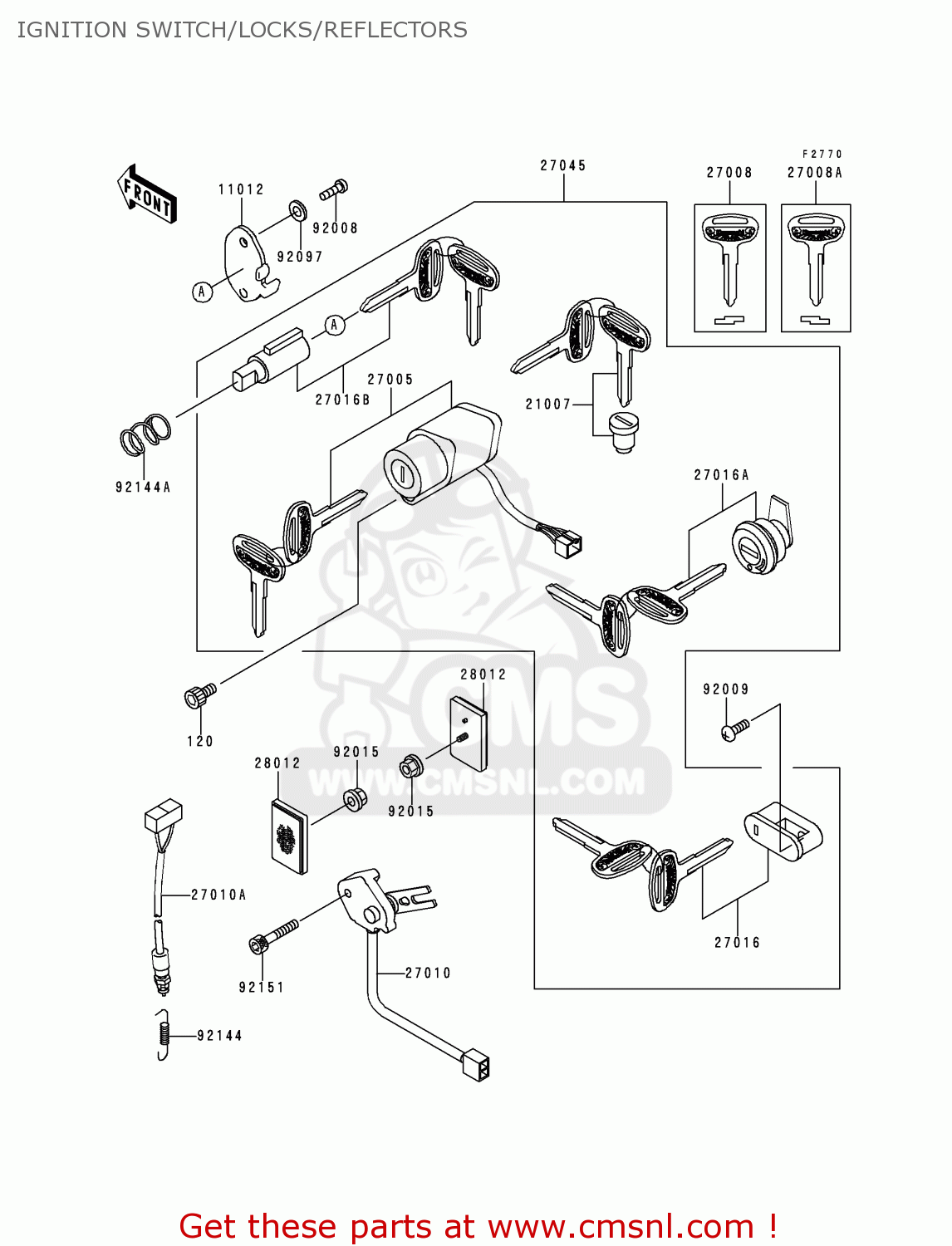

Ignition switch/locks/reflectors diagram VN1500E2 VULCAN 1500 CLASSIC 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120P0512
ref: 120

BOLT,ALLEN,5X12

€ 1.00

11012

110121586
ref: 11012

CAP,STEERING LOCK

€ 5.00

21007

210075041
ref: 21007

SWITCH-ASSY, TANK CAP

€ 50.50

27005

270051215
ref: 27005

SWITCH-ASSY-IGNITION

€ 249.00

27008

270081179
ref: 27008

KEY-LOCK,BLANK,#A

€ 20.00

27008A

270081180
ref: 27008A

KEY-LOCK,BLANK,#B

€ 22.00

27010

270101359
ref: 27010

SWITCH,SIDE STAND

€ 54.00

27010A

270101370
ref: 27010A

SWITCH,REAR BRAKE

€ 25.50

27016

270165243
ref: 27016

LOCK-ASSY, HELMET

€ 58.00

27016A

270165244
ref: 27016A

LOCK,ASSY, PAD

€ 54.00

27016B

270165246
ref: 27016B

STEERING LOCK ASSEMBLY

€ 66.50

27045

270455087
ref: 27045

SWITCH ASSEMBLY

€ 317.00

28012

280121009
ref: 28012

REFLECTOR-REFLEX,FR

€ 16.00

92008

92008007
ref: 92008

SCREW-TAPPING

€ 2.50

92009

920091296
ref: 92009

SCREW,5X12

€ 2.50

92015

920151656
ref: 92015

NUT,FLANGED,5MM

€ 2.00

92097

92097003
ref: 92097

WASHER

€ 2.50

92144

921441141
ref: 92144

SPRING,REAR BRAKE SWI

€ 3.50

92144A

921441222
ref: 92144A

SPRING,STEERING LOCK

€ 2.50

92151

921511390
ref: 92151

BOLT,SOCKET,6X35

€ 1.50
