REAR MASTER CYLINDER

VN1500D2 VULCAN 1500 CLASSIC 1997 USA CALIFORNIA CANADA

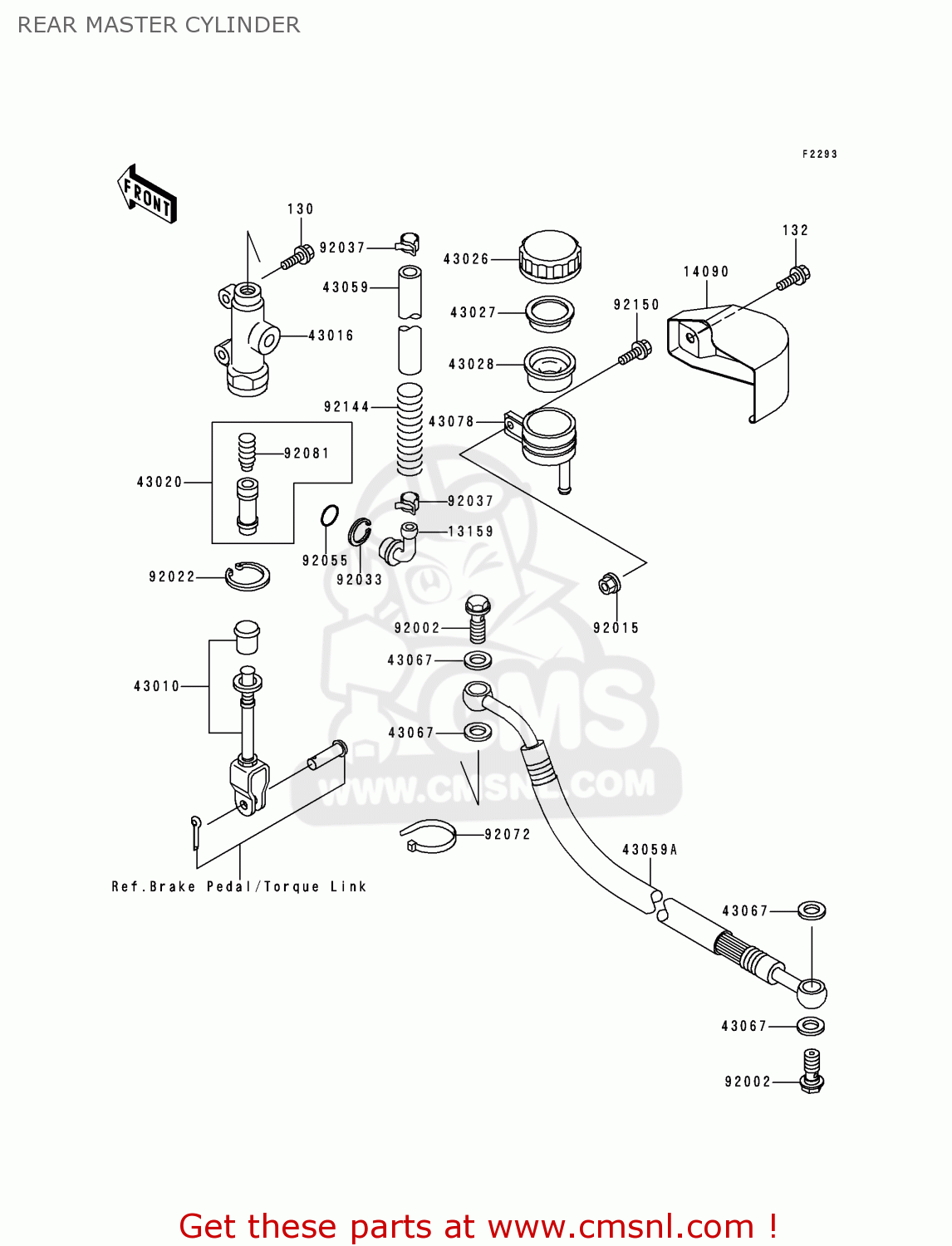

Rear master cylinder diagram VN1500D2 VULCAN 1500 CLASSIC 1997 USA CALIFORNIA CANADA

REAR MASTER CYLINDER VN1500D2 VULCAN 1500 CLASSIC 1997 USA CALIFORNIA CANADA
REAR MASTER CYLINDER VN1500D2 VULCAN 1500 CLASSIC 1997 USA CALIFORNIA CANADA
REAR MASTER CYLINDER VN1500D2 VULCAN 1500 CLASSIC 1997 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0830
ref: 130
BOLT-FLANGED,8X30
130J0830
€ 2.50
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
132E0612
€ 3.50
13159
131591052
ref: 13159
CONNECTOR RR MASTER C
131591052
€ 9.50
14090
140901705
ref: 14090
COVER,RESERVOIR
€ 56.50
43010
430101055
ref: 43010
ROD-ASSY-BRAKE
430101055
€ 44.00
43016
430161122
ref: 43016
CYLINDER-MASTER,RR
430161122
€ 171.00
43020
430201057
ref: 43020
PISTON-COMP-BRAKE
430201057
€ 47.50
43026
430261051
ref: 43026
CAP-BRAKE, RR
430261051
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
430271051
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
430281057
€ 13.00
43059
430591939
ref: 43059
HOSE-BRAKE,RR MASTER
€ 14.50
43059A
430591959
ref: 43059A
HOSE-BRAKE,RR
€ 107.00
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781082
ref: 43078
RESERVOIR, RR MASTER
430781082
€ 19.00
92002
920021888
ref: 92002
BOLT,OIL,L=23
920021888
€ 3.50
92015
920151700A
ref: 92015
NUT
920151700A
€ 5.50
92022
920221601
ref: 92022
WASHER,CIRCRIP
920221601
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371547
ref: 92037
CLAMP
920371547
€ 8.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92081
920811737
ref: 92081
SPRING
920811737
€ 8.50
92144
921441513
ref: 92144
SPRING,PROTECTOR
921441513
€ 9.50
92150
921501829
ref: 92150
BOLT,6X25
921501829
€ 2.50
