IGNITION SWITCH/LOCKS/REFLECTORS

VN1500D2 VULCAN 1500 CLASSIC 1997 USA CALIFORNIA CANADA

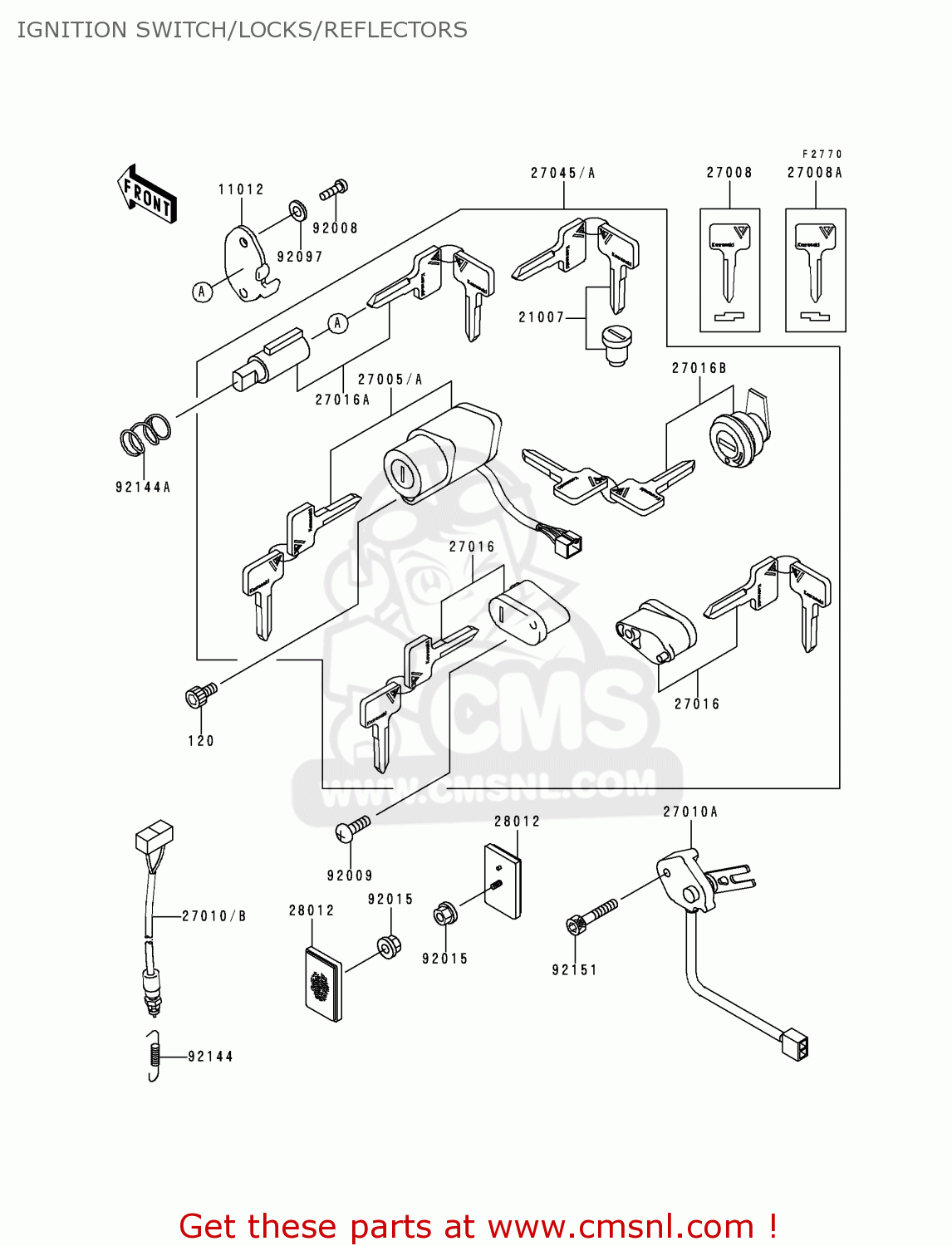

Ignition switch/locks/reflectors diagram VN1500D2 VULCAN 1500 CLASSIC 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120P0512
ref: 120

BOLT,ALLEN,5X12

€ 1.00

11012

110121586
ref: 11012

CAP,STEERING LOCK

€ 5.00

21007

210075024
ref: 21007

ROTOR,LOCK,TANK CAP

€ 50.50

27005A

270051209
ref: 27005A

SWITCH-ASSY-IGNITION

€ 238.00

27008

270081138
ref: 27008

KEY-LOCK,BLANK

€ 13.00

27008A

270081139
ref: 27008A

KEY-LOCK,BLANK

€ 13.00

27010A

270101359
ref: 27010A

SWITCH,SIDE STAND

€ 54.00

27010B

270101370
ref: 27010B

SWITCH,REAR BRAKE

€ 25.50

27016

270165129
ref: 27016

LOCK-ASSY,HELMET

€ 58.00

27016A

270165131
ref: 27016A

LOCK-ASSY,STEERING

€ 66.50

27016B

270165232
ref: 27016B

LOCK-ASSY,PAD

€ 54.00

27045A

270455047
ref: 27045A

SWITCH-ASSY

€ 373.50

28012

280121009
ref: 28012

REFLECTOR-REFLEX,FR

€ 16.00

92008

92008007
ref: 92008

SCREW-TAPPING

€ 2.50

92009

920091296
ref: 92009

SCREW,5X12

€ 2.50

92015

920151656
ref: 92015

NUT,FLANGED,5MM

€ 2.00

92097

92097003
ref: 92097

WASHER

€ 2.50

92144

921441141
ref: 92144

SPRING,REAR BRAKE SWI

€ 3.50

92144A

921441222
ref: 92144A

SPRING,STEERING LOCK

€ 2.50

92151

921511390
ref: 92151

BOLT,SOCKET,6X35

€ 1.50
