BRAKE PEDAL/TORQUE LINK

VN1500D2 VULCAN 1500 CLASSIC 1997 USA CALIFORNIA CANADA

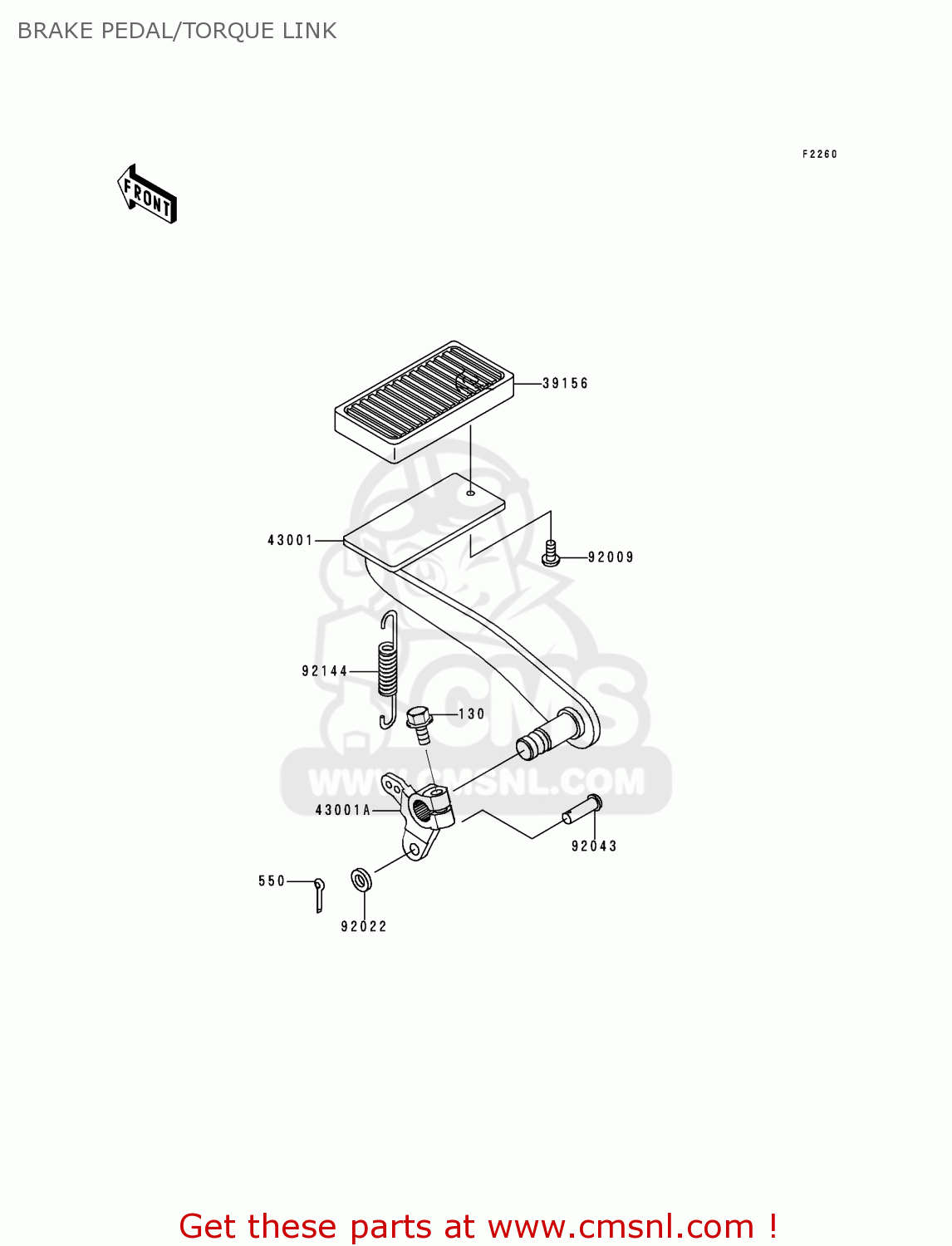

Brake pedal/torque link diagram VN1500D2 VULCAN 1500 CLASSIC 1997 USA CALIFORNIA CANADA

BRAKE PEDAL/TORQUE LINK VN1500D2 VULCAN 1500 CLASSIC 1997 USA CALIFORNIA CANADA
BRAKE PEDAL/TORQUE LINK VN1500D2 VULCAN 1500 CLASSIC 1997 USA CALIFORNIA CANADA
BRAKE PEDAL/TORQUE LINK VN1500D2 VULCAN 1500 CLASSIC 1997 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0825
ref: 130
BOLT-FLANGED,8X25,BLA
130J0825
€ 2.00
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
39156
391561540
ref: 39156
PAD,BRAKE PEDAL
391561540
€ 10.50
43001
430011367
ref: 43001
LEVER-BRAKE,PEDAL
430011367
€ 75.50
43001A
430011368
ref: 43001A
LEVER-BRAKE
€ 24.50
92009
920091677
ref: 92009
SCREW,6X8,BLACK
920091677
€ 2.50
92022
920221582
ref: 92022
WASHER,8.5X16X1.2
€ 0.50
92043
920431013
ref: 92043
PIN
920431013
€ 6.50
92144
921441169
ref: 92144
SPRING,BRAKE PEDAL RE
921441169
€ 6.50
