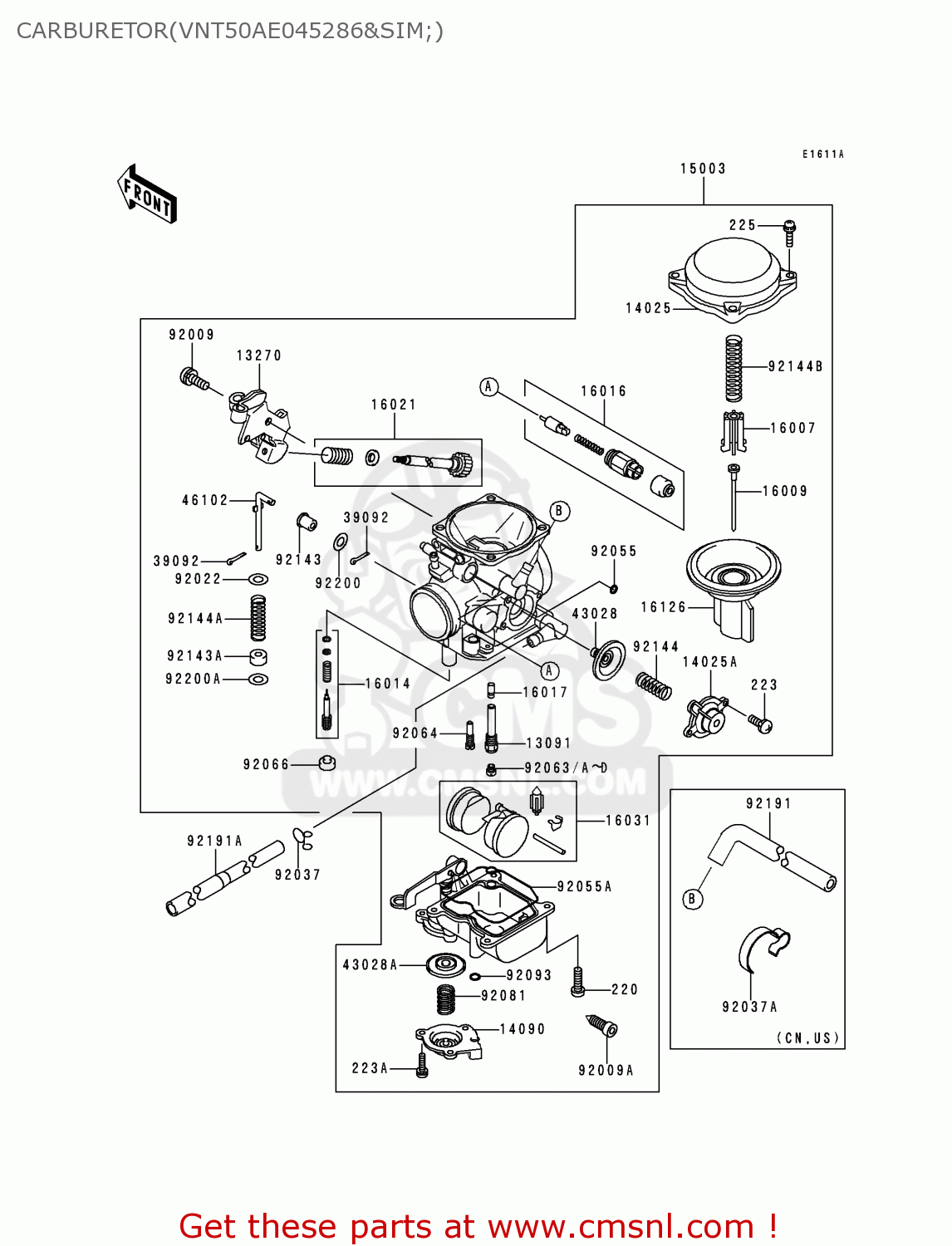

CARBURETOR(VNT50AE045286&SIM;)

ref

part #

description

quantity

13091

130911944
ref: 13091

HOLDER,NEEDLE JET

€ 20.00

13270

132701513
ref: 13270

PLATE

€ 31.00

14025

140251890
ref: 14025

COVER,MIXING CHAMBER

€ 58.50

14025A

140251903
ref: 14025A

COVER,AIR CUT VALVE

€ 43.00

14090

140901635
ref: 14090

COVER,ACCELERATOR

€ 40.50

15003

150031353
ref: 15003

CARBURETOR ASSEMBLY

€ 602.50

16007

160071113
ref: 16007

SEAT-SPRING,DIAPHRAGM

€ 13.50

16009

160091926
ref: 16009

NEEDLE-JET,N3RB

€ 29.00

16014

160141082
ref: 16014

SCREW-PILOT AIR

€ 25.50

16016

160161087
ref: 16016

PLUNGER

€ 67.50

16017

160171276
ref: 16017

JET-NEEDLE,01B38

€ 38.00

16021

160211212
ref: 16021

SCREW-THROTTLE STOP

€ 62.50

16031

160311090
ref: 16031

FLOAT

€ 51.00

16126

161261325
ref: 16126

VALVE,VACUUM

€ 179.00

39092

390921058
ref: 39092

PIN-HAIR

€ 2.00

43028

430281053
ref: 43028

DIAPHRAGM,5.9MM,AIR C

€ 62.50

43028A

430281077
ref: 43028A

DIAPHRAGM

€ 62.50

46102

461021400
ref: 46102

ROD,ACCELERATOR PUMP

€ 19.00

92009

920091365
ref: 92009

SCREW

€ 4.50

92009A

920091551
ref: 92009A

SCREW,DRAIN

€ 6.50

92022

920221480
ref: 92022

WASHER,PLAIN,STOP SPR

€ 3.00

92037

920371531
ref: 92037

CLAMP,TUBE

€ 3.50

92037A

920371552
ref: 92037A
CNUS

CLAMP

€ 6.50

92055

920551245
ref: 92055

RING-O

€ 3.50

92055A

920551518
ref: 92055A

RING-O,FLOAT CHAMBER

€ 15.00

92063

920631014
ref: 92063

MAIN JET,#135

€ 9.50

92063A

920631015
ref: 92063A

MAIN JET,#138

€ 9.50

92063B

920631074
ref: 92063B

MAIN JET,2ND #128

€ 9.50

92063C

920631075
ref: 92063C

MAIN JET,2ND #130

€ 9.50

92063D

920631076
ref: 92063D

JET-MAIN,#132

€ 9.50

92064

920641177
ref: 92064

JET-PILOT,#45

€ 13.00

92066

920661051
ref: 92066

PLUG,PILOT AIR SCREW,

€ 3.00

92081

920811092
ref: 92081

SPRING,DIAPHRAGM

€ 8.00

92093

920931046
ref: 92093

SEAL-"U"RING

€ 4.00

92143

921431790
ref: 92143

COLLAR

€ 1.50

92143A

921431791
ref: 92143A

COLLAR

€ 5.50

220

220D0414
ref: 220

SCREW-PAN-CROS

€ 2.00

223

223D0408
ref: 223

SCREW-PAN-WS-CROS

€ 1.00

223A

223D0410
ref: 223A

SCREW-PAN-WS-CROS

€ 2.50

225

225C0418
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50

92144

921441072
ref: 92144

SPRING,AIR CUT VALVE

€ 6.50

92144A

921441886
ref: 92144A

SPRING

€ 6.00

92144B

921441947
ref: 92144B

SPRING,VACUUM

€ 14.50

92191

921911090
ref: 92191
CNUS

TUBE,AIR VENT

€ 12.00

92191A

921911261
ref: 92191A

TUBE,FUEL

€ 7.00

92200

922001274
ref: 92200

WASHER

€ 1.50

92200A

922001275
ref: 92200A

WASHER

€ 1.50

all assemblies
