METER(S)
VN1500C4 VULCAN 1500L 1997 USA CALIFORNIA

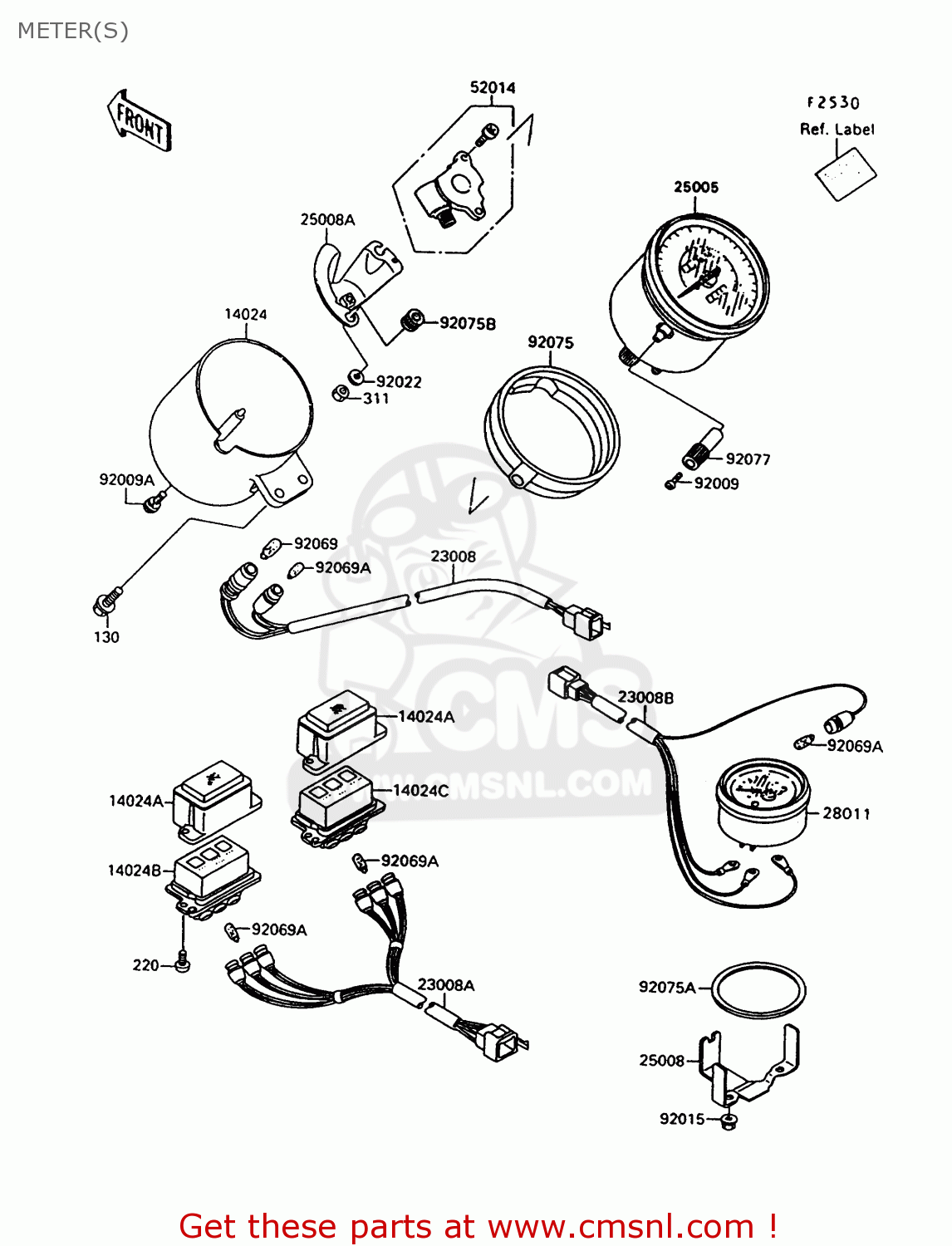

Meter(s) diagram VN1500C4 VULCAN 1500L 1997 USA CALIFORNIA
METER(S) VN1500C4 VULCAN 1500L 1997 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
130
130B0616
ref: 130
BOLT-FLANGED,6X16
€ 0.50
220
220B0414
ref: 220
SCREW-PAN-CROS
€ 2.00
311
311B0400
ref: 311
NUT-HEX,4MM
€ 0.50
14024
140241504
ref: 14024
COVER,METER,LWR
€ 295.50
14024A
140241505
ref: 14024A
COVER,PILOT BOX,UPP
€ 7.50
14024B
140241506
ref: 14024B
COVER,PILOT BOX,LH,LW
€ 27.00
14024C
140241507
ref: 14024C
PILOT BOX COVER,LOWER,RH
€ 46.00
23008
230081340
ref: 23008
SOCKET-ASSY,METER
€ 18.50
23008A
230081341
ref: 23008A
PILOT BOX SOCKET ASSEMBLY
€ 52.50
23008B
230081342
ref: 23008B
SOCKET-ASSY,FUEL METE
€ 76.00
25005
250051385
ref: 25005
SPEEDOMETER,MPH
€ 306.00
25008
250081136
ref: 25008
BRACKET-METER
€ 7.50
25008A
250081139
ref: 25008A
BRACKET-METER
€ 24.50
28011
280111102
ref: 28011
METER,FUEL
€ 136.50
52014
520141081
ref: 52014
ELBOW,METER
€ 57.00
92009
920091172
ref: 92009
SCREW,2X6,BLACK
€ 2.00
92009A
920091478
ref: 92009A
SCREW,5X10
€ 2.00
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92022
920221888
ref: 92022
WASHER,4.3X12.5X1
€ 1.00
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691068
ref: 92069A
BULB,14V 3W
€ 2.50
92075
920751953
ref: 92075
DAMPER,SHOCK,METER
€ 17.50
92075A
920751954
ref: 92075A
DAMPER,SHOCK,FUEL MET
€ 6.50
92075B
920751956
ref: 92075B
DAMPER,METER FITTING
€ 4.50
92077
920771077
ref: 92077
KNOB,METER
€ 5.50
