HEADLIGHT(S)

VN1500C4 VULCAN 1500L 1997 USA CALIFORNIA

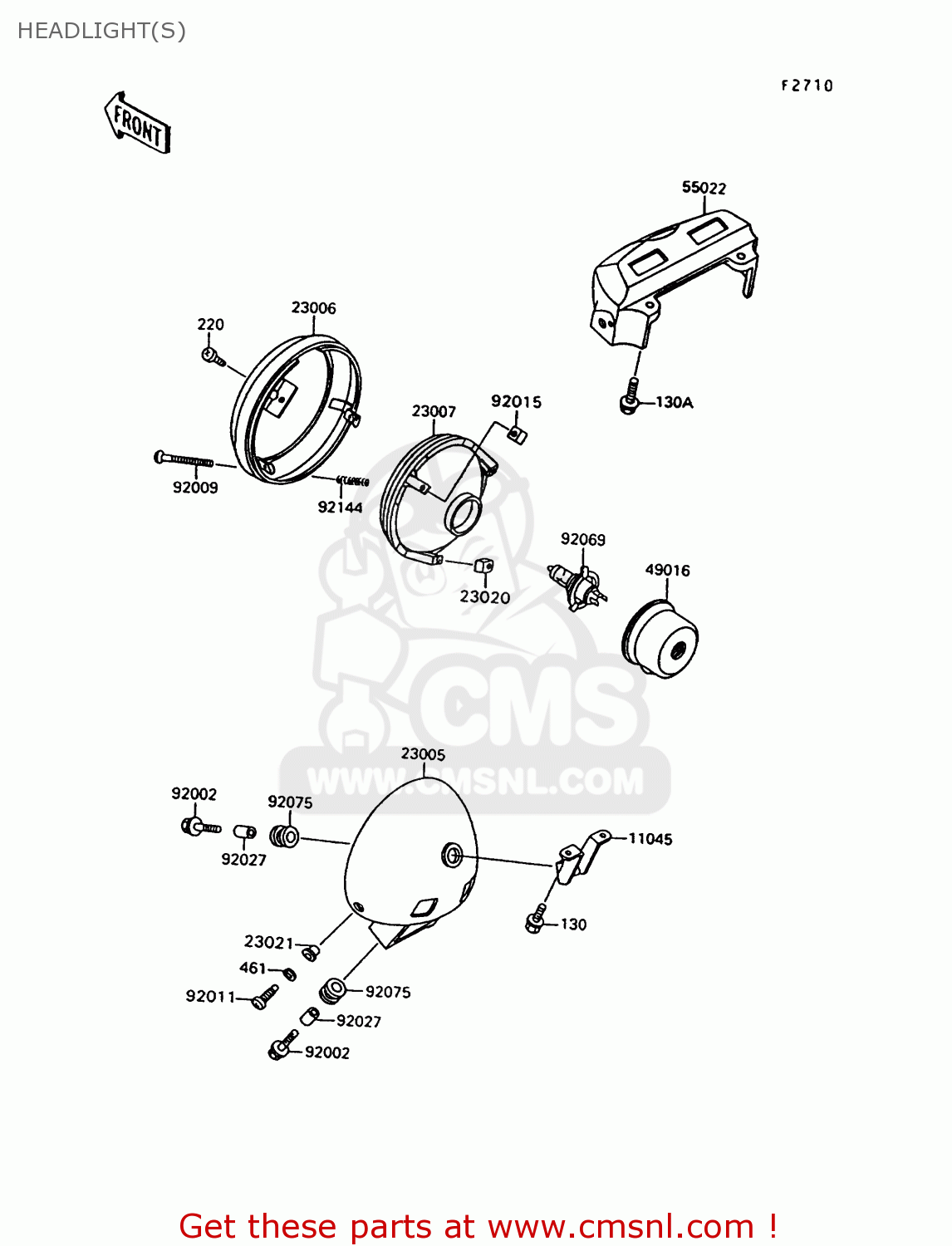

Headlight(s) diagram VN1500C4 VULCAN 1500L 1997 USA CALIFORNIA

HEADLIGHT(S) VN1500C4 VULCAN 1500L 1997 USA CALIFORNIA
HEADLIGHT(S) VN1500C4 VULCAN 1500L 1997 USA CALIFORNIA
HEADLIGHT(S) VN1500C4 VULCAN 1500L 1997 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
130
130D0612
ref: 130
BOLT,FLANGED
€ 0.50
130A
130N0825
ref: 130A
BOLT-FLANGED
130N0825
€ 3.50
220
220D0512
ref: 220
SCREW-PAN-CROS,5X12
220D0512
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
461F0500
€ 0.50
11045
110451598
ref: 11045
BRACKET,HEAD LAMP
€ 6.00
23005
230051086
ref: 23005
BODY-COMP-HEAD LAMP
€ 70.00
23006
230061059
ref: 23006
RIM-LAMP
230061059
€ 73.00
23007
230071169
ref: 23007
LENS-COMP, HEAD LAMP
230071169
€ 138.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
23021
23021010
ref: 23021
WASHER
23021010
€ 2.50
49016
490161129
ref: 49016
COVER-SEAL,HEAD LAMP
490161129
€ 8.00
55022
550221059
ref: 55022
COVER-HEAD LAMP
€ 255.00
92002
920021135
ref: 92002
BOLT,6X25
920021135
€ 2.50
92009
920091472
ref: 92009
SCREW,FOCUS ADJUST,4X
920091472
€ 3.50
92011
92011024
ref: 92011
SCREW-PAN HEAD,5MM
92011024
€ 2.00
92015
920151157
ref: 92015
NUT,5MM
920151157
€ 3.50
92027
92027156
ref: 92027
COLLAR-BATTERY CASE
92027156
€ 3.00
92069
920691002
ref: 92069
BULB,12V-60155W
920691002
€ 15.00
92075
920751035
ref: 92075
DAMPER RUBBER
920751035
€ 3.50
92144
921441149
ref: 92144
SPRING,FOCUS ADJUST
921441149
€ 5.50
