CYLINDER HEAD COVER

VN1500C4 VULCAN 1500L 1997 USA CALIFORNIA

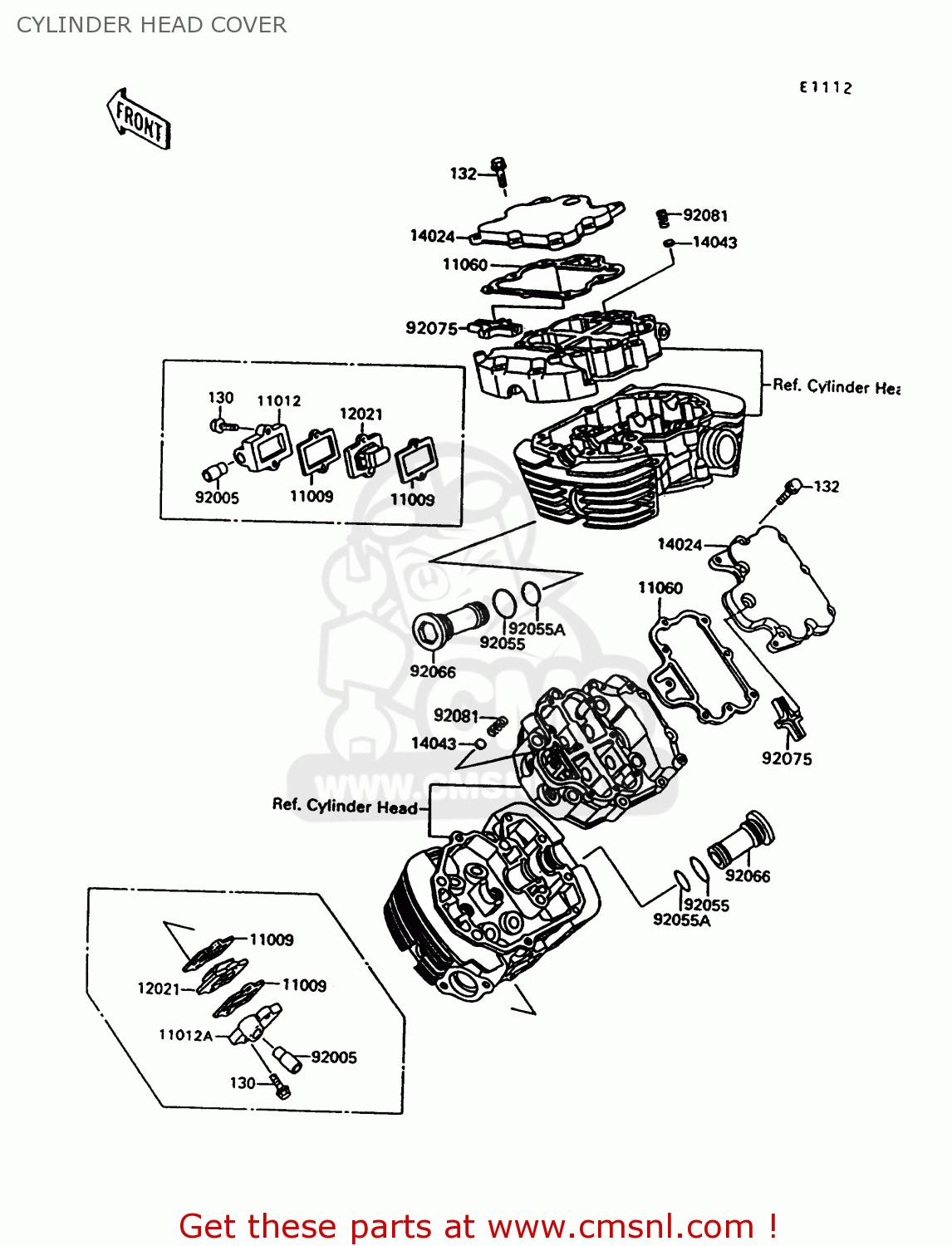

Cylinder head cover diagram VN1500C4 VULCAN 1500L 1997 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

130

130N0620
ref: 130

BOLT-FLANGED

€ 2.50

132

132E0620
ref: 132

BOLT-FLANGED-SMALL

€ 2.00

11009

110091879
ref: 11009

GASKET,REED VALVE (NAS)

€ 4.50

11012

110121494
ref: 11012

CAP,REED VALVE,FR

€ 18.50

11012A

110121574
ref: 11012A

CAP,REED VALVE,RR

€ 26.50

11060

110601116
ref: 11060

GASKET,ROCKER CASE CO (NAS)

€ 11.00

12021

120211073
ref: 12021

VALVE-ASSY-REED

€ 41.00

14024

140241405
ref: 14024

COVER,ROCKER CASE

€ 35.50

14043

140431056
ref: 14043

FILTER,OIL

€ 7.50

92005

920051006
ref: 92005

FITTING,REED VALVE

€ 6.00

92055

92055049
ref: 92055

'0'RING,31MM

€ 2.50

92055A

920551272
ref: 92055A

RING-O,27.7X1.9

€ 3.50

92066

920661274
ref: 92066

PLUG,SLEEVE

€ 20.00

92075

920751998
ref: 92075

DAMPER

€ 6.00

92081

920811776
ref: 92081

SPRING,OIL FILTER

€ 4.00
