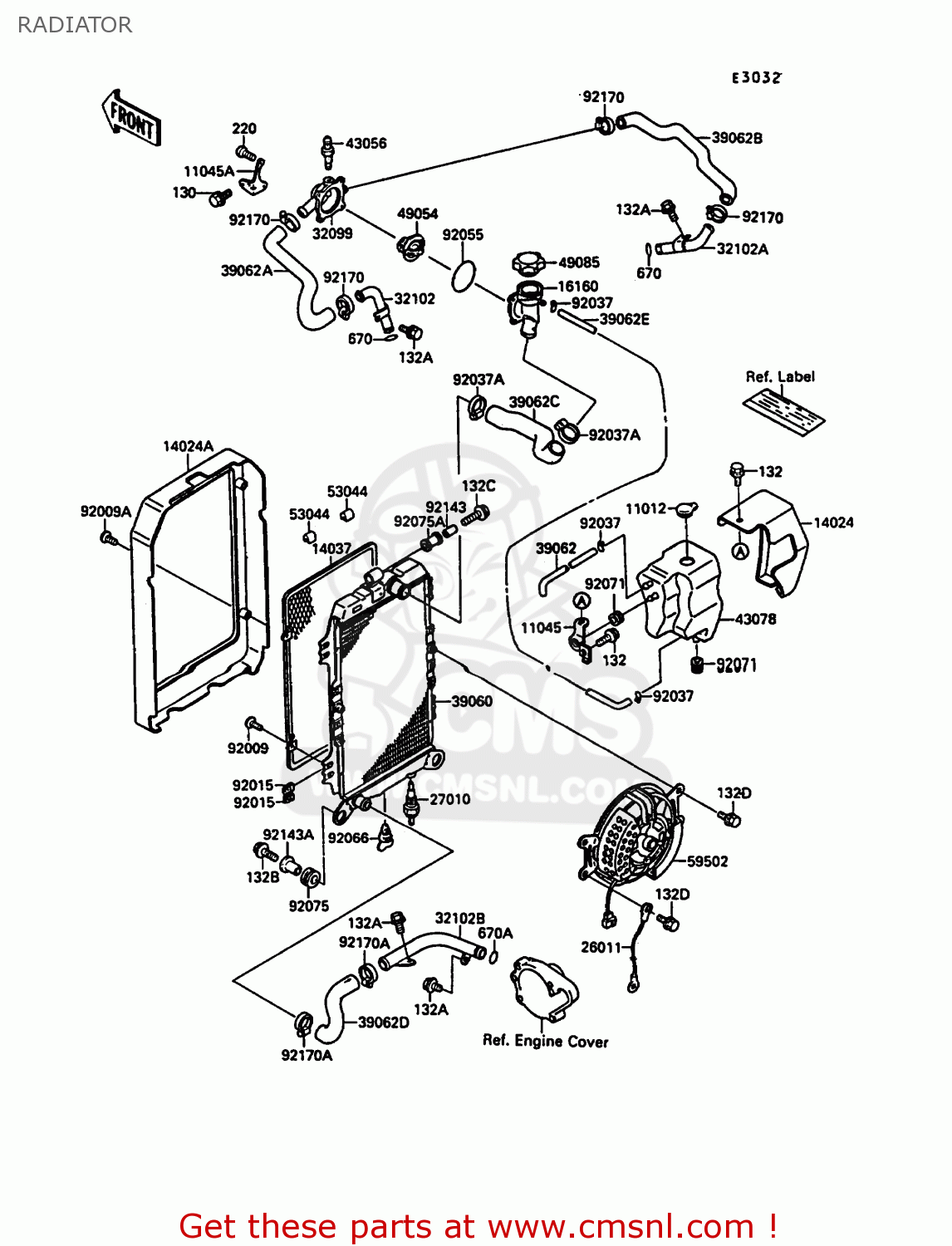

RADIATOR

ref

part #

description

quantity

11012

110121585
ref: 11012

CAP

€ 4.50

11045

110451436
ref: 11045

BRACKET,RESERVOIR

€ 5.50

11045A

110451437
ref: 11045A

BRACKET,THERMOSTAT

€ 5.50

14024

140241406
ref: 14024

COVER,RESERVOIR

€ 43.00

14024A

140241429L2
ref: 14024A

COVER,RADIATOR,L.C.RE

€ 143.50

14037

140371090
ref: 14037

SCREEN

€ 38.50

16160

161601116
ref: 16160

BODY,THERMOSTAT,UPP

€ 134.00

26011

260111412
ref: 26011

WIRE-LEAD

€ 19.50

27010

270101167
ref: 27010

SWITCH,FAN

€ 108.50

32099

320991093
ref: 32099

CASE,THERMOSTAT

€ 38.50

32102

321021413
ref: 32102

PIPE,HEAD,FR

€ 18.50

32102A

321021414
ref: 32102A

PIPE,HEAD,RR

€ 19.50

32102B

321021415
ref: 32102B

PIPE,PUMP COVER-HOSE

€ 37.50

39060

390601077
ref: 39060

RADIATOR

€ 653.50

39062

390621125
ref: 39062

HOSE-COOLING

€ 17.50

39062A

390621227
ref: 39062A

HOSE-COOLING,HEAD,FR

€ 16.50

39062B

390621228
ref: 39062B

HOSE-COOLING,HEAD,RR

€ 29.00

39062C

390621229
ref: 39062C

HOSE-COOLING,THERMO-R

€ 22.50

39062D

390621252
ref: 39062D

HOSE-COOLING,RADIATOR

€ 19.00

39062E

390621255
ref: 39062E

HOSE-COOLING

€ 16.00

43056

43056003
ref: 43056

BREATHER-BRAKE

€ 16.50

43078

430781085
ref: 43078

RESERVOIR

€ 50.50

49054

490541051
ref: 49054

THERMOSTAT

€ 44.50

49085

490851054
ref: 49085

CAP-ASSY-PRESSURE

€ 39.50

53044

530441199
ref: 53044

TRIM

€ 3.00

59502

595021071
ref: 59502

FAN-ASSY

€ 446.00

92009

920091436
ref: 92009

SCREW

€ 2.00

92009A

920091481
ref: 92009A

SCREW,TAPPING,6X30

€ 3.00

92015

920151758
ref: 92015

NUT

€ 4.50

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92037A

920371985
ref: 92037A

CLAMP,COOLING HOSE

€ 7.50

92055

92055112
ref: 92055

O RING, 53.5 M/M

€ 4.00

92066

920661293
ref: 92066

PLUG,DRAIN

€ 12.00

92071

920711115
ref: 92071

GROMMET,RESERVOIR TAN

€ 3.50

92075

920751665
ref: 92075

DAMPER

€ 5.00

92075A

920751920
ref: 92075A

DAMPER

€ 3.00

92143

92027209
ref: 92143

COLLAR

€ 1.50

92143A

921431063
ref: 92143A

COLLAR

€ 6.00

92170

921701032
ref: 92170

CLAMP,COOLING HOSE

€ 16.50

92170A

921701034
ref: 92170A

CLAMP,COOLING HOSE

€ 14.00

130

130B0612
ref: 130

BOLT-FLANGED,6X12

€ 0.50

132

132E0610
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

132A

132E0612
ref: 132A

BOLT-FLANGED-SMALL

€ 3.50

132B

132E0625
ref: 132B

BOLT-FLANGED-SMALL

€ 3.00

132C

132E0640
ref: 132C

BOLT-FLANGED-SMALL

€ 3.50

132D

132G0610
ref: 132D

BOLT-FLANGED-SMALL

€ 1.00

220

220D0514
ref: 220

SCREW-PAN-CROS

€ 2.50

670

670B2014
ref: 670

O RING,14MM

€ 1.00

670A

670B2018
ref: 670A

O RING,18MM

€ 1.00
