CRANKCASE
VN1500A3 VN15 1989 FG

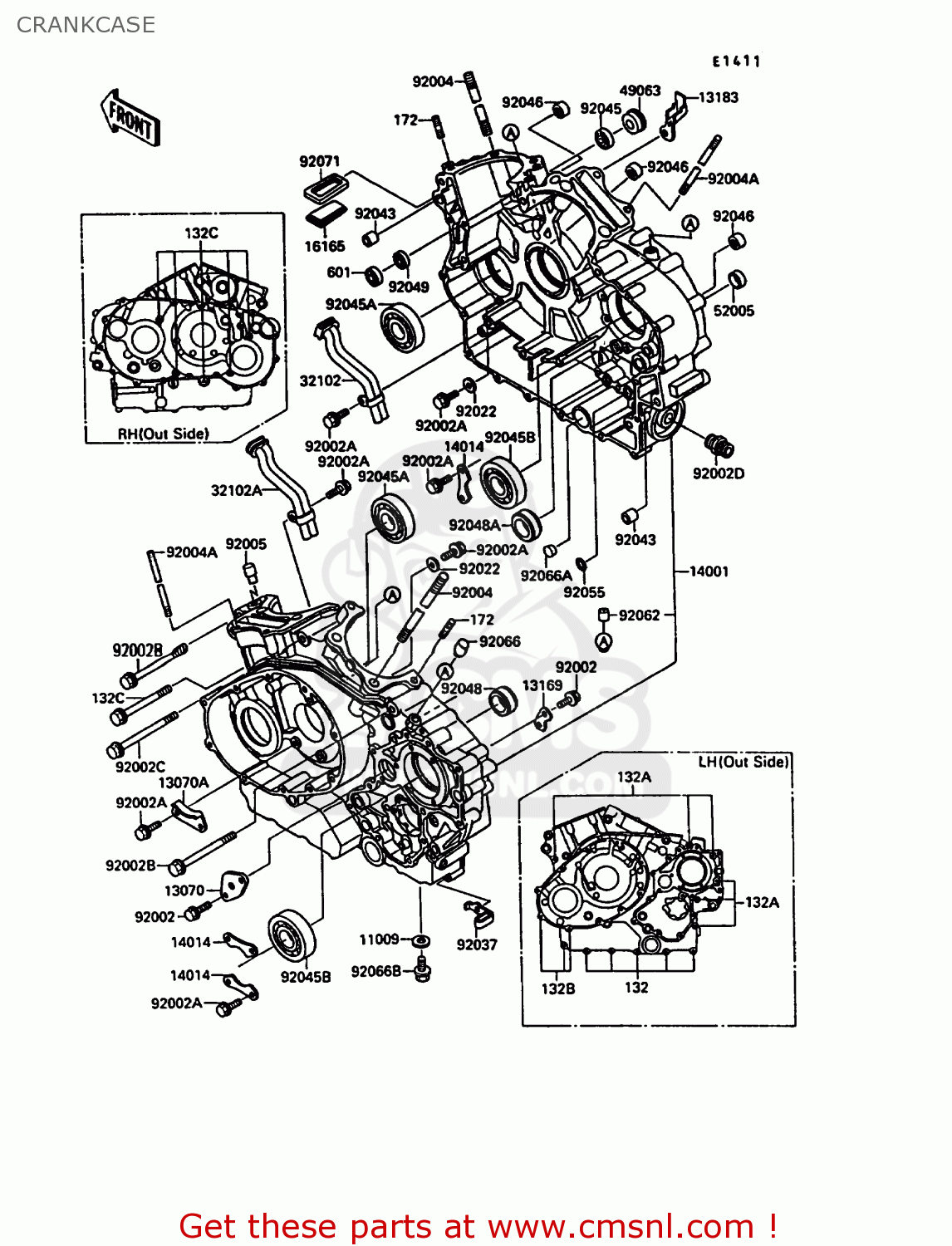

Crankcase diagram VN1500A3 VN15 1989 FG
CRANKCASE VN1500A3 VN15 1989 FG
×
prices are in EUR
ref
part #
description
quantity
132
132E0640
ref: 132
BOLT-FLANGED-SMALL
€ 3.50
132A
132E0670
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132E0680
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
132C
132E0890
ref: 132C
BOLT-FLANGED-SMALL
€ 4.50
11009
92065097
ref: 11009
GASKET,DRAIN PLUG BOL (NAS)
€ 1.00
13070
130701167
ref: 13070
GUIDE,PUSH ROD
€ 14.50
13070A
130701168
ref: 13070A
GUIDE,CAM CHAIN
€ 3.50
13169
13169014
ref: 13169
PLATE,GEAR CHANGE DRU
€ 3.00
13183
131831145
ref: 13183
PLATE
€ 4.50
14001
140015232
ref: 14001
SET-CRANKCASE
€ 2,353.00
14014
140141084
ref: 14014
PLATE-POSITION
€ 4.00
16165
161651058
ref: 16165
SEPARATOR
€ 18.00
32102
321021407
ref: 32102
PIPE
€ 29.50
32102A
321021708
ref: 32102A
PIPE
€ 31.00
49063
490631052
ref: 49063
SEAL-MECHANICAL
€ 32.50
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
92002
920021439
ref: 92002
BOLT,6X16
€ 3.00
92002A
920021563
ref: 92002A
BOLT,6X12
€ 2.00
92002B
920021897
ref: 92002B
BOLT,10X105
€ 5.50
92002C
920021898
ref: 92002C
BOLT,10X115
€ 7.00
92002D
920021899
ref: 92002D
BOLT,OIL FILTER
€ 13.50
92004
920041172
ref: 92004
STUD,12X252
€ 11.50
92004A
920041174
ref: 92004A
STUD,8X231
€ 8.50
92005
920051155
ref: 92005
FITTING
€ 5.50
92022
920221517
ref: 92022
WASHER,6X19.5X2
€ 1.50
92037
920371925
ref: 92037
CLAMP
€ 4.00
92043
920431266
ref: 92043
PIN,11X14X12.3
€ 1.00
92045
920451151
ref: 92045
BEARING-BALL,6001JRXL
€ 26.00
92045A
920451189
ref: 92045A
BEARING-BALL,63/28
€ 50.50
92045B
920451190
ref: 92045B
BEARING-BALL,6306SH2
€ 44.50
92046
920461163
ref: 92046
BEARING-NEEDLE,HK1212
€ 13.50
92048
920481069
ref: 92048
RACE
€ 29.00
92048A
920481070
ref: 92048A
RACE
€ 26.50
92049
920491228
ref: 92049
SEAL-OIL,AC037AE0
€ 7.00
92055
920551373
ref: 92055
RING-O,13.2X2.4
€ 3.00
92062
920621066
ref: 92062
NOZZLE,6X8
€ 2.50
92066
920661012
ref: 92066
PLUG,OIL LINE,7.2X8
€ 4.00
92066A
920661110
ref: 92066A
PLUG
€ 4.00
92066B
920661174
ref: 92066B
PLUG,OIL DRAIN,12X15
€ 4.00
92071
920711153
ref: 92071
GROMMET,SEPARATOR
€ 5.50
172
172G0825
ref: 172
STUD,8X25
€ 3.50
601
601A6001
ref: 601
BEARING-BALL
€ 9.00
