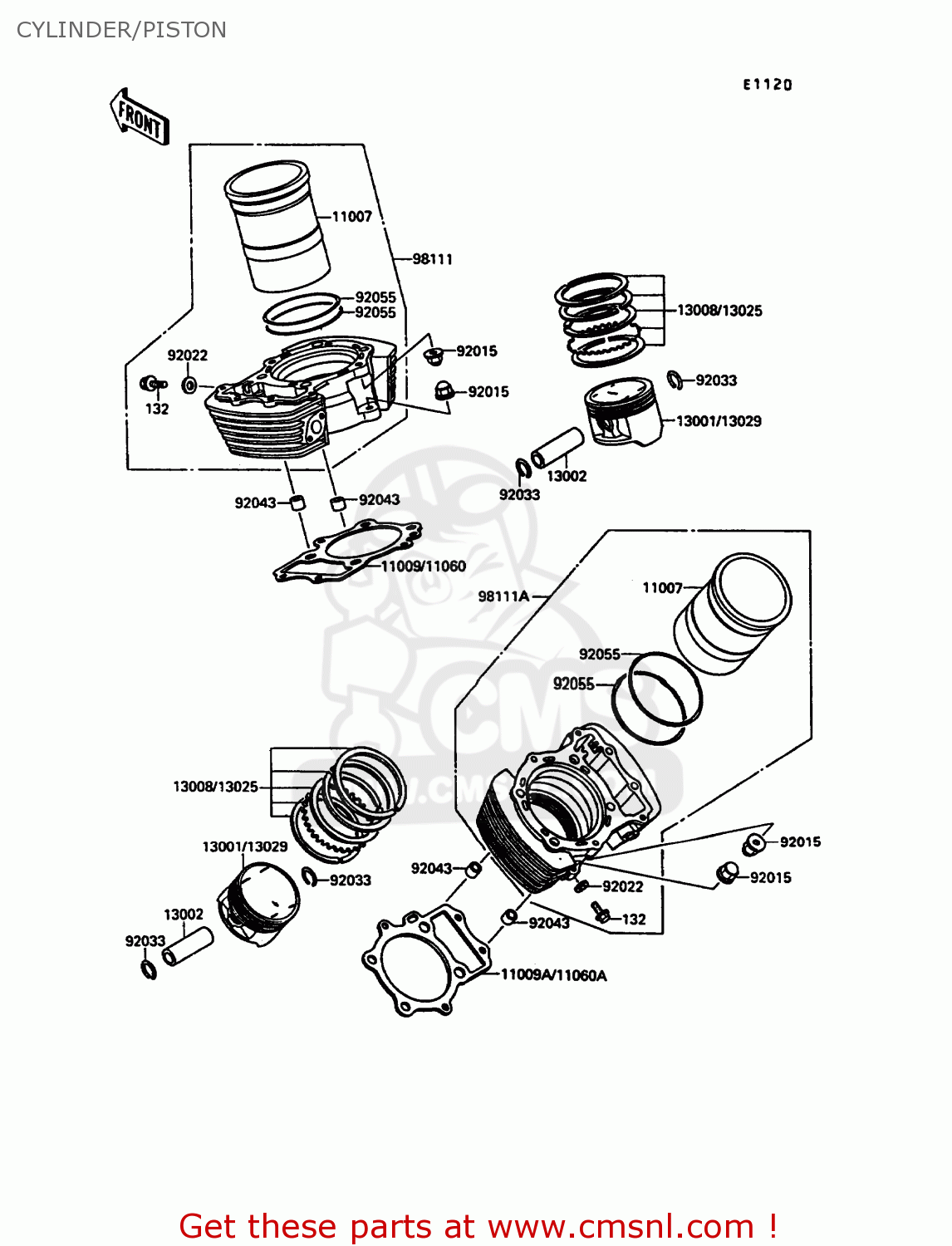

CYLINDER/PISTON

ref

part #

description

quantity

132

132E0610
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

11007

110071097
ref: 11007

LINER-CYLINDER

€ 176.00

11009

110091642
ref: 11009

GASKET,CYLINDER BASE, (MCA)

€ 11.00

11009A

110091643
ref: 11009A

GASKET,CYLINDER BASE,

€ 12.00

13001

130011276
ref: 13001

PISTON-ENGINE,STD

€ 108.50

13002

130021070
ref: 13002

PIN-PISTON

€ 22.50

13008

130081086
ref: 13008

RING-SET-PISTON,STD

€ 85.50

13025

130251081
ref: 13025

RING-SET-PISTON L,O/S

€ 101.50

13029

130291173
ref: 13029

PISTON-ENGINE L,O/S 0

€ 155.50

92015

920151371
ref: 92015

NUT,CAP,8MM

€ 3.00

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92033

920331226
ref: 92033

RING-SNAP

€ 2.50

92043

920431349
ref: 92043

PIN,DOWEL,13X16X14

€ 3.00

92055

920551371
ref: 92055

RING-O,110.5X2.5

€ 7.00

98111

981111052
ref: 98111

CYLINDER-COMP-ENGINE,

€ 784.00

98111A

981111053
ref: 98111A

CYLINDER-COMP-ENGINE,

€ 784.00

all assemblies
