GEAR CHANGE MECHANISM
VN1500A3 VN15 1989 FG

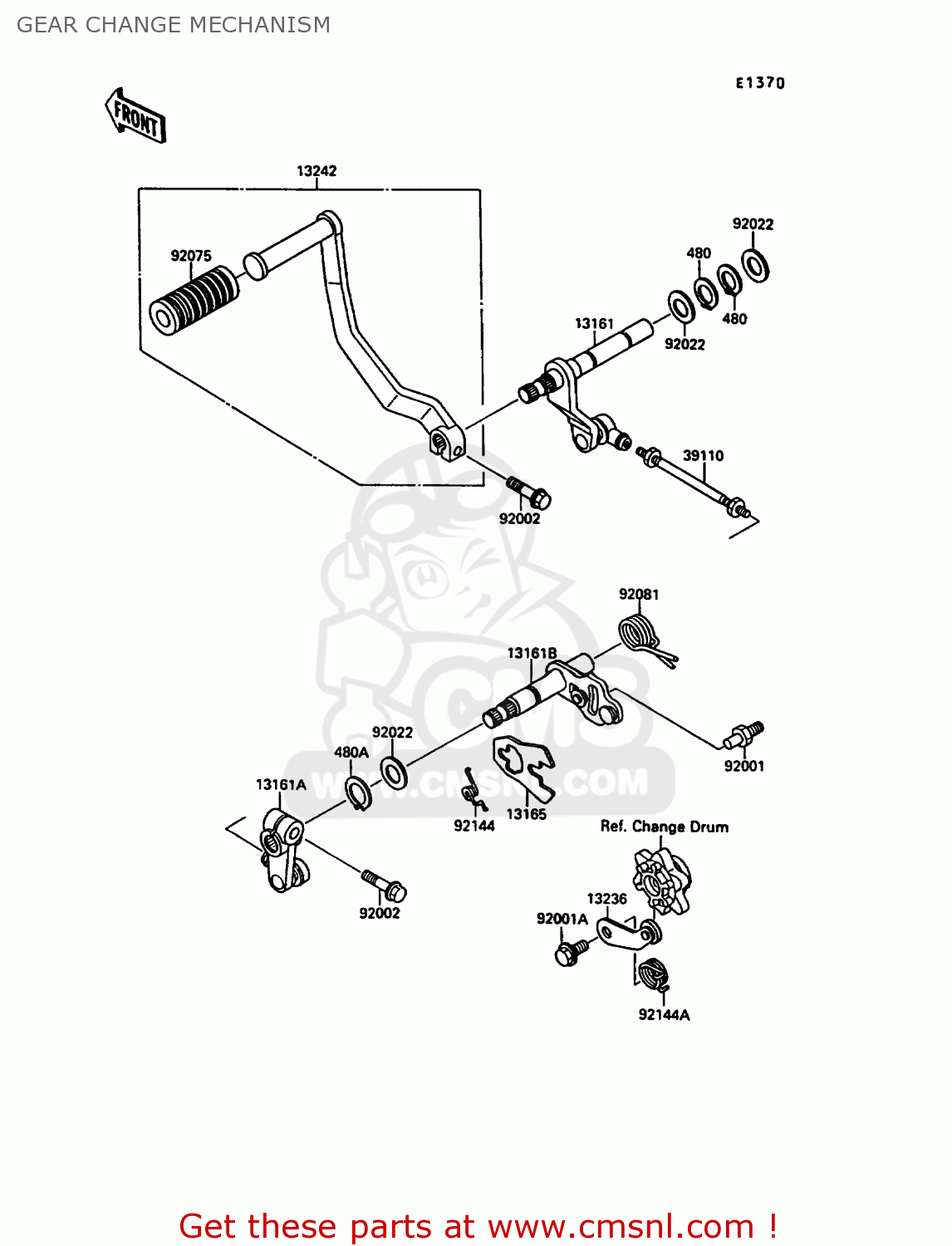

Gear change mechanism diagram VN1500A3 VN15 1989 FG
GEAR CHANGE MECHANISM VN1500A3 VN15 1989 FG
×
prices are in EUR
ref
part #
description
quantity
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
€ 0.50
480A
480J1300
ref: 480A
CIRCLIP-TYPE-C,13MM
€ 2.50
13161
131611141
ref: 13161
LEVER-COMP-CHANGE SHA
€ 68.00
13161A
131611142
ref: 13161A
LEVER-COMP-CHANGE SHA
€ 63.00
13161B
131611150
ref: 13161B
LEVER-COMP-CHANGE SHA
€ 48.00
13165
131651120
ref: 13165
PAWL
€ 9.50
13236
132361126
ref: 13236
LEVER-COMP,POSITION
€ 9.00
13242
132421229
ref: 13242
LEVER-ASSY-CHANGE,PED
€ 29.00
39110
391101073
ref: 39110
ROD-ASSY-TIE
€ 7.00
92001
920011455
ref: 92001
BOLT
€ 3.00
92001A
920011715
ref: 92001A
BOLT
€ 7.00
92002
920021237
ref: 92002
BOLT,6X20
€ 2.50
92022
920221224
ref: 92022
WASHER,13.2X20X0.5
€ 2.50
92075
13063002
ref: 92075
RUBBER-KICK PEDAL
€ 3.00
92081
920811869
ref: 92081
SPRING,CHANGE PEDAL R
€ 7.00
92144
921441029
ref: 92144
SPRING
€ 5.00
92144A
921441140
ref: 92144A
SPRING,RETURN
€ 5.50
