HANDLEBAR

VN1500A11 VULCAN 1500 1997 USA CALIFORNIA

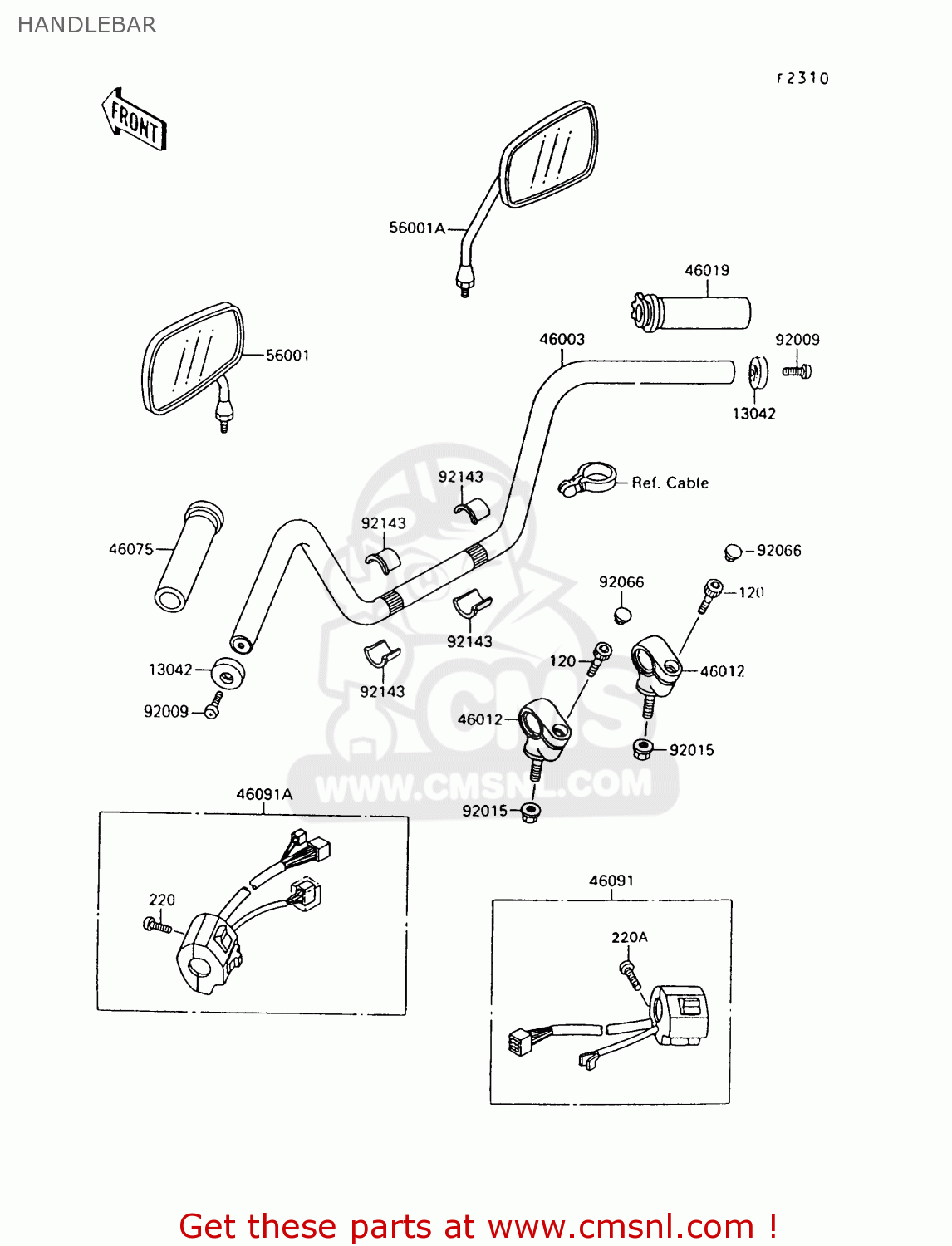

Handlebar diagram VN1500A11 VULCAN 1500 1997 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

120

120P1025
ref: 120

BOLT-SOCKET,10X25

€ 3.00

220

220E0514
ref: 220

SCREW-PAN-CROS,5X14

€ 2.00

220A

220E0516
ref: 220A

SCREW-PAN-CROS

€ 2.50

13042

130421068
ref: 13042

WEIGHT,HANDLE

€ 19.50

46003

460031243
ref: 46003

HANDLE

€ 92.00

46012

460121171
ref: 46012

HOLDER-HANDLE

€ 96.50

46019

460191065
ref: 46019

GRIP-ASSY,THROTTLE

€ 33.50

46075

460751074
ref: 46075

GRIP,LH

€ 20.50

46091

460911448
ref: 46091

HOUSING-ASSY-CONTROL

€ 254.00

46091A

460911449
ref: 46091A

HOUSING-ASSY-CONTROL,

€ 303.00

56001

560011303
ref: 56001

MIRROR-ASSY,LH

€ 71.50

56001A

560011304
ref: 56001A

MIRROR-ASSY,RH

€ 71.50

92009

920091484
ref: 92009

SCREW,8X20

€ 3.50

92015

920151717
ref: 92015

NUT,LOCK,FLANGED,10MM

€ 6.50

92066

920661285
ref: 92066

PLUG

€ 5.00

92143

921431098
ref: 92143

COLLAR,HANDLE HOLDER

€ 6.00
