CARBURETOR

VN1500A11 VULCAN 1500 1997 USA CALIFORNIA

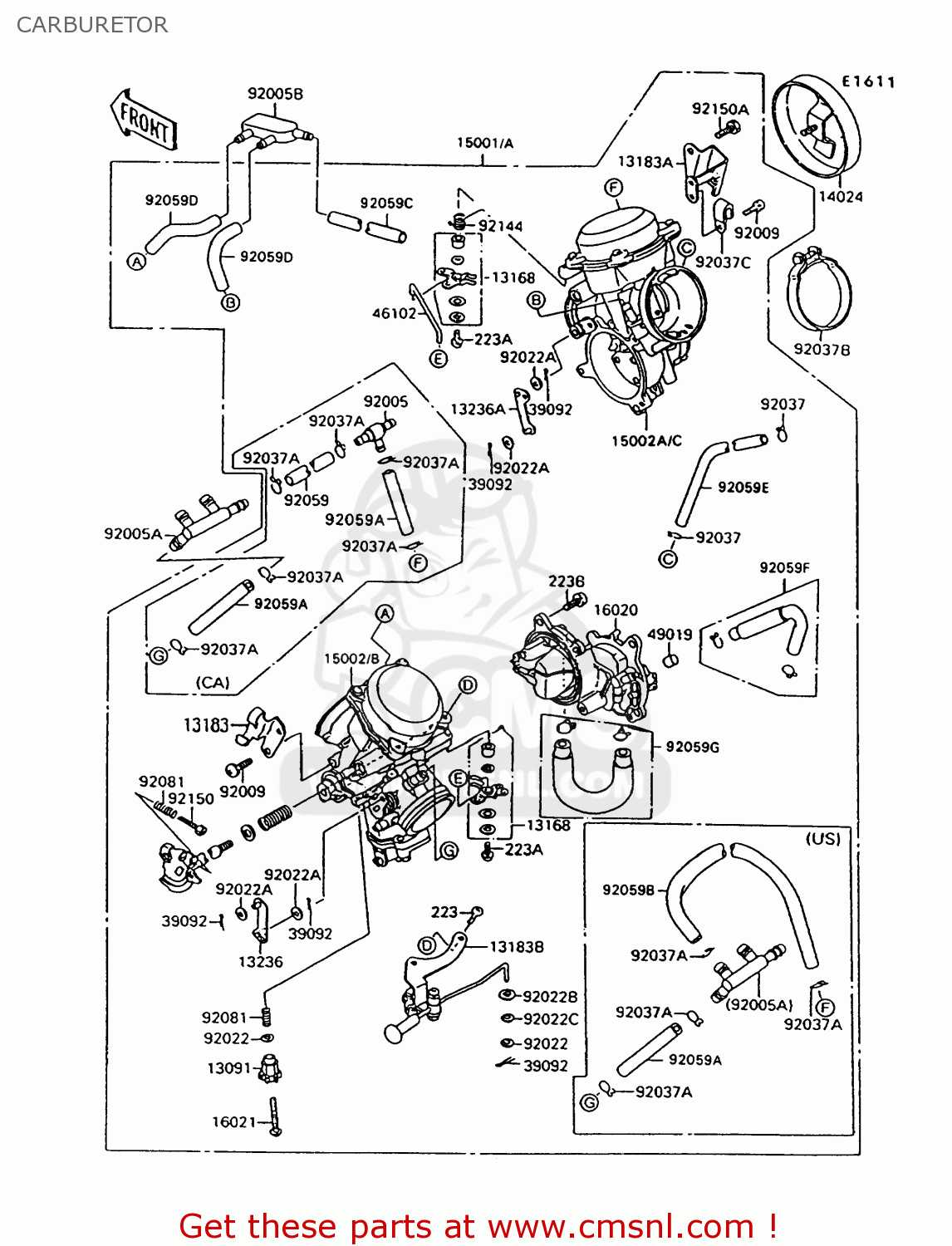

Carburetor diagram VN1500A11 VULCAN 1500 1997 USA CALIFORNIA

CARBURETOR VN1500A11 VULCAN 1500 1997 USA CALIFORNIA
CARBURETOR VN1500A11 VULCAN 1500 1997 USA CALIFORNIA
CARBURETOR VN1500A11 VULCAN 1500 1997 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
13091
130911382
ref: 13091
HOLDER,THROTTLE STOP
130911382
€ 11.00
13168
131681384
ref: 13168
LEVER,STARTER
131681384
€ 40.00
13183
131831213
ref: 13183
PLATE,THROTTLE CABLE
131831213
€ 34.50
13183A
131831215
ref: 13183A
PLATE,COVER
131831215
€ 32.50
13183B
131831244
ref: 13183B
PLATE,STARTER
€ 26.00
13236
132361165
ref: 13236
LEVER-COMP,LINK,RR
132361165
€ 10.50
13236A
132361166
ref: 13236A
LEVER-COMP,LINK,FR
132361166
€ 14.50
14024
140241586
ref: 14024
COVER
140241586
€ 28.50
15001
150011336
ref: 15001
US
CARBURETOR ASSEMBLY
€ 988.50
15001A
150011354
ref: 15001A
CA
CARBURETOR ASSEMBLY
€ 988.50
15002
150021565
ref: 15002
US
CARBURETOR,REAR
€ 579.00
15002A
150021566
ref: 15002A
US
CARBURETOR,FRONT
€ 579.00
15002B
150021567
ref: 15002B
CA
CARBURETOR,REAR
€ 607.50
15002C
150021568
ref: 15002C
CA
CARBURETOR,FRONT
€ 579.00
16020
160201059
ref: 16020
CHAMBER-FLOAT
€ 219.50
16021
160211122
ref: 16021
SCREW-THROTTLE STOP
€ 4.00
39092
390921051
ref: 39092
PIN-HAIR
390921051
€ 2.00
46102
461021232
ref: 46102
ROD,STARTER
461021232
€ 49.50
49019
490191059
ref: 49019
FILTER-FUEL
490191059
€ 8.50
92005
920051112
ref: 92005
CA
FITTING,FUEL,T-TYPE
920051112
€ 10.00
92005A
920051164
ref: 92005A
FITTING
€ 6.50
92005B
920051165
ref: 92005B
FITTING
920051165
€ 20.00
92009
920091365
ref: 92009
SCREW
920091365
€ 4.50
92022
920221480
ref: 92022
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92022A
920221676
ref: 92022A
WASHER,3.1X8X0.5,POLY
920221676
€ 3.00
92022B
920221913
ref: 92022B
WASHER,4.3X9.0X1.0,PO
€ 2.00
92022C
920221914
ref: 92022C
WASHER,5.0X7.5X1.0,PO
€ 2.00
92037
920371142
ref: 92037
CLAMP,TUBE
920371142
€ 2.50
92037A
920371477
ref: 92037A
US
CLAMP,TUBE
920371477
€ 3.00
92037A
920371477
ref: 92037A
CA
CLAMP,TUBE
920371477
€ 3.00
92037B
920371637
ref: 92037B
CLAMP
920371637
€ 6.00
92037C
920371958
ref: 92037C
CLAMP
920371958
€ 8.50
92059
920591377
ref: 92059
CA
TUBE,5X9X180
920591377
€ 16.50
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
223C0420
€ 3.00
223A
223D0425
ref: 223A
SCREW-PAN-WS-CROS
€ 2.00
223B
223D0512
ref: 223B
SCREW-PAN-WS-CROS
€ 2.50
92059A
920591880
ref: 92059A
US
TUBE,5X9X35
€ 14.50
92059A
920591880
ref: 92059A
CA
TUBE,5X9X35
€ 14.50
92059B
920591881
ref: 92059B
US
TUBE,5X9X245
€ 10.50
92059C
920591882
ref: 92059C
US
TUBE,7X11X460
€ 22.00
92059D
920591883
ref: 92059D
TUBE,7X11X160
920591883
€ 24.50
92059E
920591884
ref: 92059E
TUBE,3X7X750
€ 20.50
92059F
920591885
ref: 92059F
TUBE,5.3X10.5X190
€ 21.00
92059G
920591886
ref: 92059G
TUBE,10.5X5.3X140
€ 14.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
920811617
€ 3.50
92144
921441220
ref: 92144
SPRING
921441220
€ 6.00
92150
921501032
ref: 92150
BOLT,4X20
€ 2.50
92150A
921501033
ref: 92150A
BOLT,10X16
€ 4.00
