AIR CLEANER

VN1500A11 VULCAN 1500 1997 USA CALIFORNIA

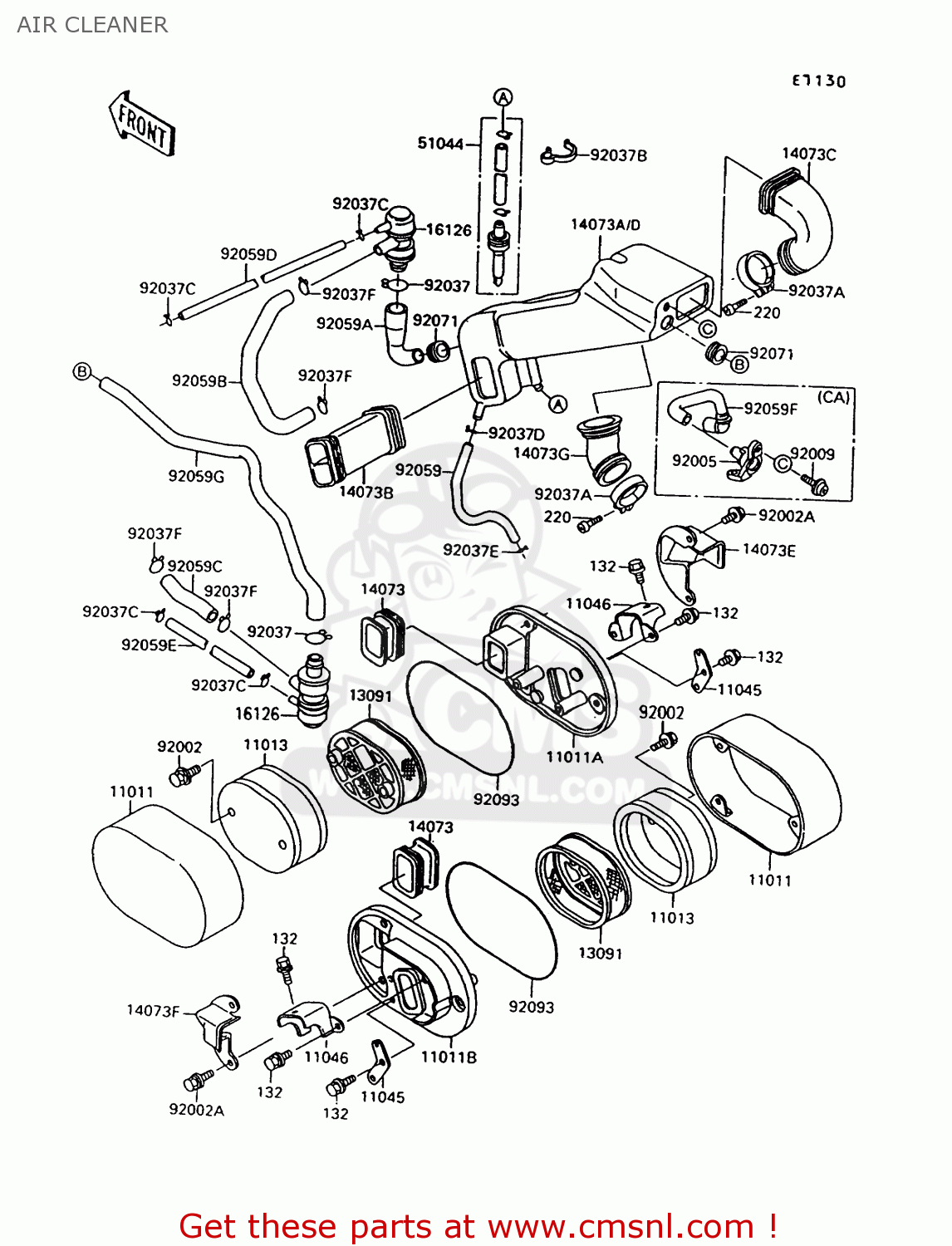

Air cleaner diagram VN1500A11 VULCAN 1500 1997 USA CALIFORNIA

AIR CLEANER VN1500A11 VULCAN 1500 1997 USA CALIFORNIA
AIR CLEANER VN1500A11 VULCAN 1500 1997 USA CALIFORNIA
AIR CLEANER VN1500A11 VULCAN 1500 1997 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
11011
110111248
ref: 11011
CASE-AIR FILTER,OUTSI
110111248
€ 123.50
11011A
110111289
ref: 11011A
CASE-AIR FILTER,LH,IN
€ 45.50
11011B
110111290
ref: 11011B
CASE-AIR FILTER,RH,IN
110111290
€ 45.50
11013
110131249
ref: 11013
ELEMENT-AIR FILTER
110131249
€ 17.00
11045
110451434
ref: 11045
BRACKET,AIR FILTER,LW
110451434
€ 2.50
11046
110461035
ref: 11046
BRACKET,AIR FILTER,UP
110461035
€ 5.50
13091
130911345
ref: 13091
HOLDER,ELEMENT
130911345
€ 42.50
14073
140731296
ref: 14073
DUCT,INLET
140731296
€ 11.50
14073A
140731297
ref: 14073A
US
DUCT,SURGE TANK
€ 85.00
14073B
140731298
ref: 14073B
DUCT,AIR FILTER
140731298
€ 14.00
14073C
140731299
ref: 14073C
DUCT,FR,CARBURETOR
€ 50.50
14073D
140731306
ref: 14073D
CA
SURGE TANK DUCT
€ 42.00
14073E
140731316
ref: 14073E
DUCT,LH
140731316
€ 10.50
14073F
140731317
ref: 14073F
DUCT,RH
140731317
€ 10.00
14073G
140731326
ref: 14073G
DUCT,RR,CARBURETOR
€ 15.50
16126
161261188
ref: 16126
VALVE,AIR SWITCH
€ 121.50
51044
510441089
ref: 51044
TUBE-ASSY
€ 34.50
92002
920021137
ref: 92002
BOLT,6X25
920021137
€ 2.50
92002A
920021242
ref: 92002A
BOLT
920021242
€ 3.00
92005
920051163
ref: 92005
CA
FITTING
€ 5.50
92009
920091272
ref: 92009
CA
SCREW,6X14
€ 2.00
92037
920371076
ref: 92037
CLAMP,TUBE
920371076
€ 4.00
92037A
920371112
ref: 92037A
CLAMP,BOOT FITTING
920371112
€ 11.50
92037B
920371552
ref: 92037B
CLAMP
920371552
€ 6.50
92037C
920371712
ref: 92037C
CLAMP
920371712
€ 3.00
92037D
920371862
ref: 92037D
CLAMP,14MM
920371862
€ 4.00
92037E
92037192
ref: 92037E
CLAMP,BREATHER HOSE
92037192
€ 4.00
92037F
92037213
ref: 92037F
CLAMP, BREATHER TUBE
92037213
€ 2.50
92059
920591777
ref: 92059
TUBE,BREATHER
€ 10.00
92059A
920591779
ref: 92059A
TUBE,ASV-SURGE TANK
€ 8.00
92059B
920591780
ref: 92059B
TUBE,VALVE-ASV
€ 14.50
92059C
920591783
ref: 92059C
TUBE,ASV-CAP(R)
€ 5.50
92059D
920591820
ref: 92059D
TUBE,4X9X420
€ 7.00
92059E
920591846
ref: 92059E
TUBE
920591846
€ 7.00
92059F
920591859
ref: 92059F
CA
AIR FILTER TUBE
€ 13.00
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
132J0610
€ 1.50
220
220C0430
ref: 220
SCREW-PAN-CROS
220C0430
€ 2.50
92059G
920591873
ref: 92059G
TUBE
€ 20.50
92071
920711028
ref: 92071
GROMMET AIR FILTER
€ 4.50
92093
920931236
ref: 92093
SEAL,AIR FILTER
920931236
€ 7.50
