GEAR CHANGE MECHANISM

VN1500A11 VULCAN 1500 1997 USA CALIFORNIA

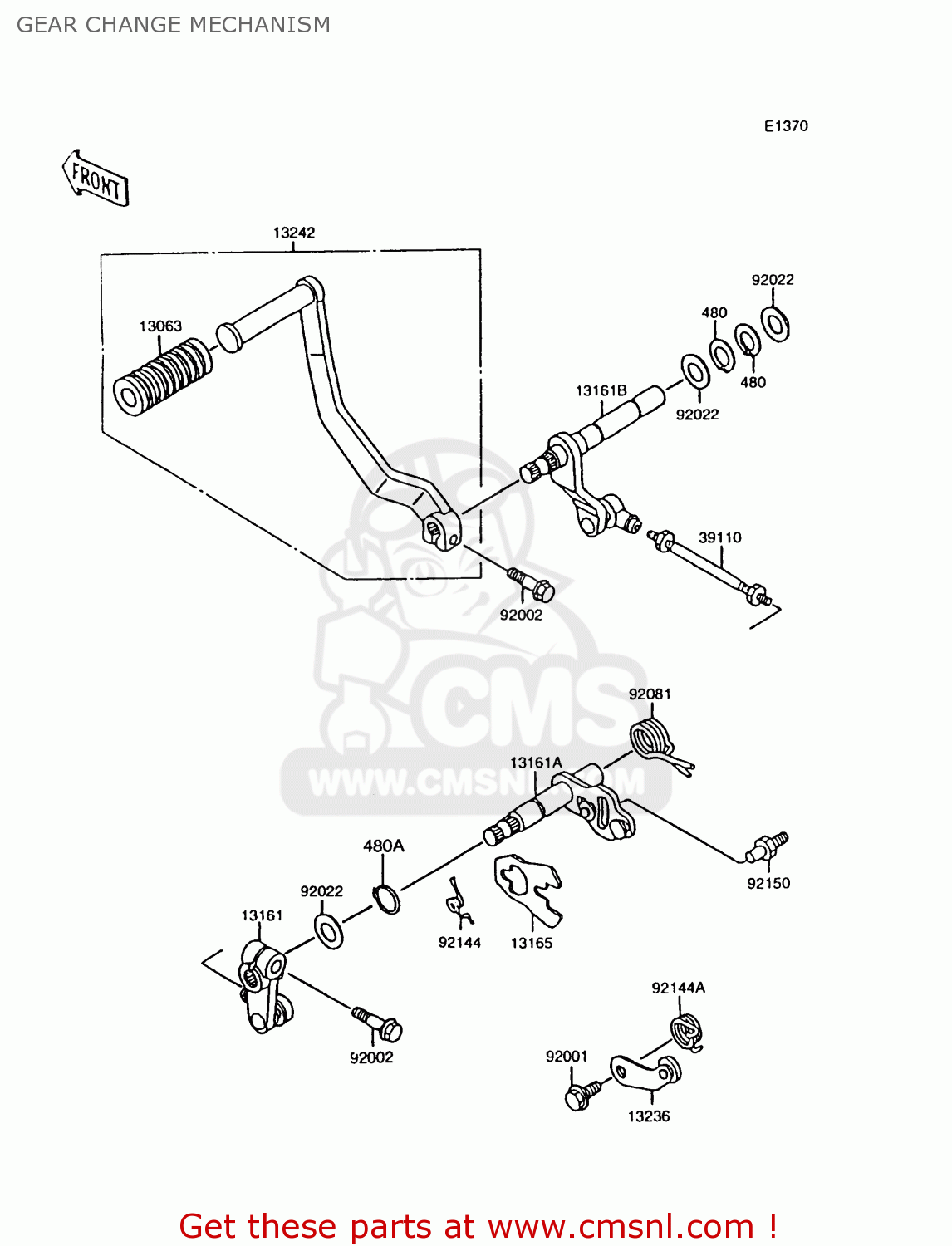

Gear change mechanism diagram VN1500A11 VULCAN 1500 1997 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

480

480J1200
ref: 480

CIRCLIP-TYPE-C,12MM

€ 0.50

480A

480J1300
ref: 480A

CIRCLIP-TYPE-C,13MM

€ 2.50

13063

13063002
ref: 13063

RUBBER-KICK PEDAL

€ 3.00

13161

131611142
ref: 13161

LEVER-COMP-CHANGE SHA

€ 63.00

13161A

131611150
ref: 13161A

LEVER-COMP-CHANGE SHA

€ 48.00

13161B

131611241
ref: 13161B

LEVER-COMP-CHANGE SHA

€ 68.00

13165

131651120
ref: 13165

PAWL

€ 9.50

13236

132361126
ref: 13236

LEVER-COMP,POSITION

€ 9.00

13242

132421229
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 29.00

39110

391101073
ref: 39110

ROD-ASSY-TIE

€ 7.00

92001

920011715
ref: 92001

BOLT

€ 7.00

92002

920021237
ref: 92002

BOLT,6X20

€ 2.50

92022

920221224
ref: 92022

WASHER,13.2X20X0.5

€ 2.50

92081

920811869
ref: 92081

SPRING,CHANGE PEDAL R

€ 7.00

92144

921441029
ref: 92144

SPRING

€ 5.00

92144A

921441140
ref: 92144A

SPRING,RETURN

€ 5.50

92150

921501869
ref: 92150

BOLT,RETURN SPRING

€ 7.00

GEAR CHANGE MECHANISM

all assemblies
