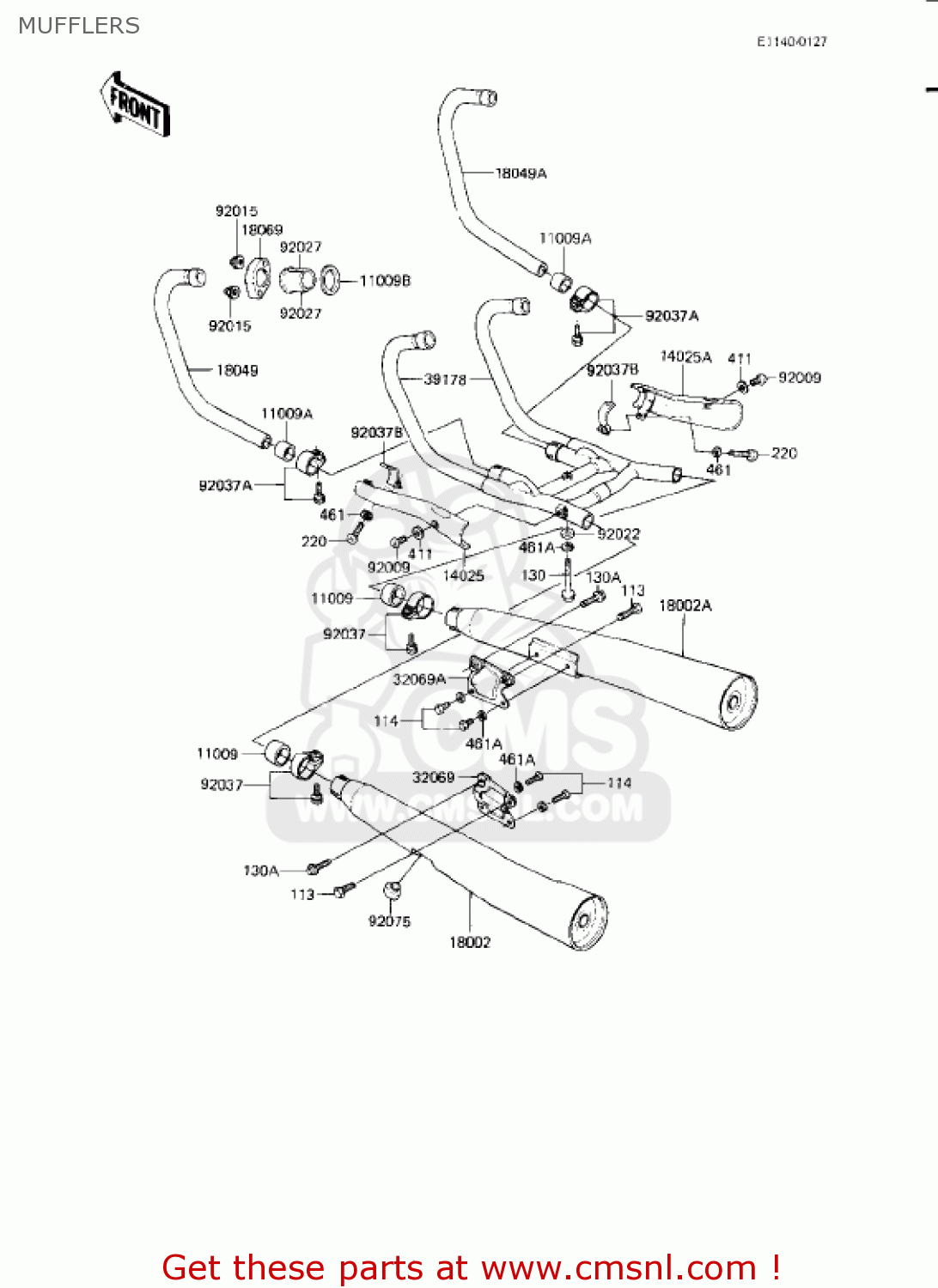

MUFFLERS

ref

part #

description

quantity

11009

110601068
ref: 11009

GASKET,MANIFOLD EXHAU (NAS)

€ 20.50

11009A

110091667
ref: 11009A

GASKET,EXHAUST PIPE C (NAS)

€ 15.00

11009B

110091866
ref: 11009B

GASKET,EXHAUST PIPE H (NAS)

€ 7.50

14025

140251588
ref: 14025

COVER,MUFFLER,LH

€ 49.00

14025A

140251589
ref: 14025A

COVER,MUFFLER,RH

€ 49.00

18002

180021382
ref: 18002

BODY-COMP-MUFFLER,LH

€ 256.50

18002A

180021383
ref: 18002A

BODY-COMP-MUFFLER,RH

€ 288.00

18049

180491162
ref: 18049

PIPE-EXHAUST,#2,CR PL

€ 102.00

18049A

180491163
ref: 18049A

PIPE-EXHAUST,#3,CR PL

€ 109.50

18069

180691025
ref: 18069

HOLDER-EXHAUST PIPE

€ 15.00

32069

320691106
ref: 32069

BRACKET-MUFFLER,LH

€ 20.00

32069A

320691107
ref: 32069A

BRACKET-MUFFLER,RH

€ 20.00

39178

391781019
ref: 39178

MANIFOLD-COMP-EXHAUST

€ 329.50

92009

92011039
ref: 92009

SCREW, PAN HEAD, 6X8

€ 2.00

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

92022176
ref: 92022

WASHER,10X22X3.2

€ 3.00

92027

920271142
ref: 92027

COLLAR,L=14.5

€ 3.00

92037

920371258
ref: 92037

CLAMP,MUFFLER

€ 10.50

92037A

920371349
ref: 92037A

CLAMP,42MM

€ 8.50

92037B

920371374
ref: 92037B

CLAMP,MUFFLER COVER

€ 7.50

92075

92075015
ref: 92075

DAMPER RUBB-MAIN STND

€ 3.00

113

113J1035
ref: 113

BOLT-SMALL-FINE,10X35

€ 3.00

114

115G0816
ref: 114

BOLT-HEX,HEAD 8X16

€ 0.50

130

130G0865
ref: 130

BOLT-FLANGED,8X65

€ 5.50

130A

130J0835
ref: 130A

BOLT-FLANGED,8X35,BLA

€ 2.50

220

220B0620
ref: 220

SCREW-PAN HEAD,6X20

€ 2.50

411

411D0600
ref: 411

WASHER-PLAIN,6MM

€ 1.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461F0800
ref: 461A

WASHER-SPRING,8MM

€ 0.50

all assemblies
