FUEL TANK
KZ750L3 1983 USA CANADA

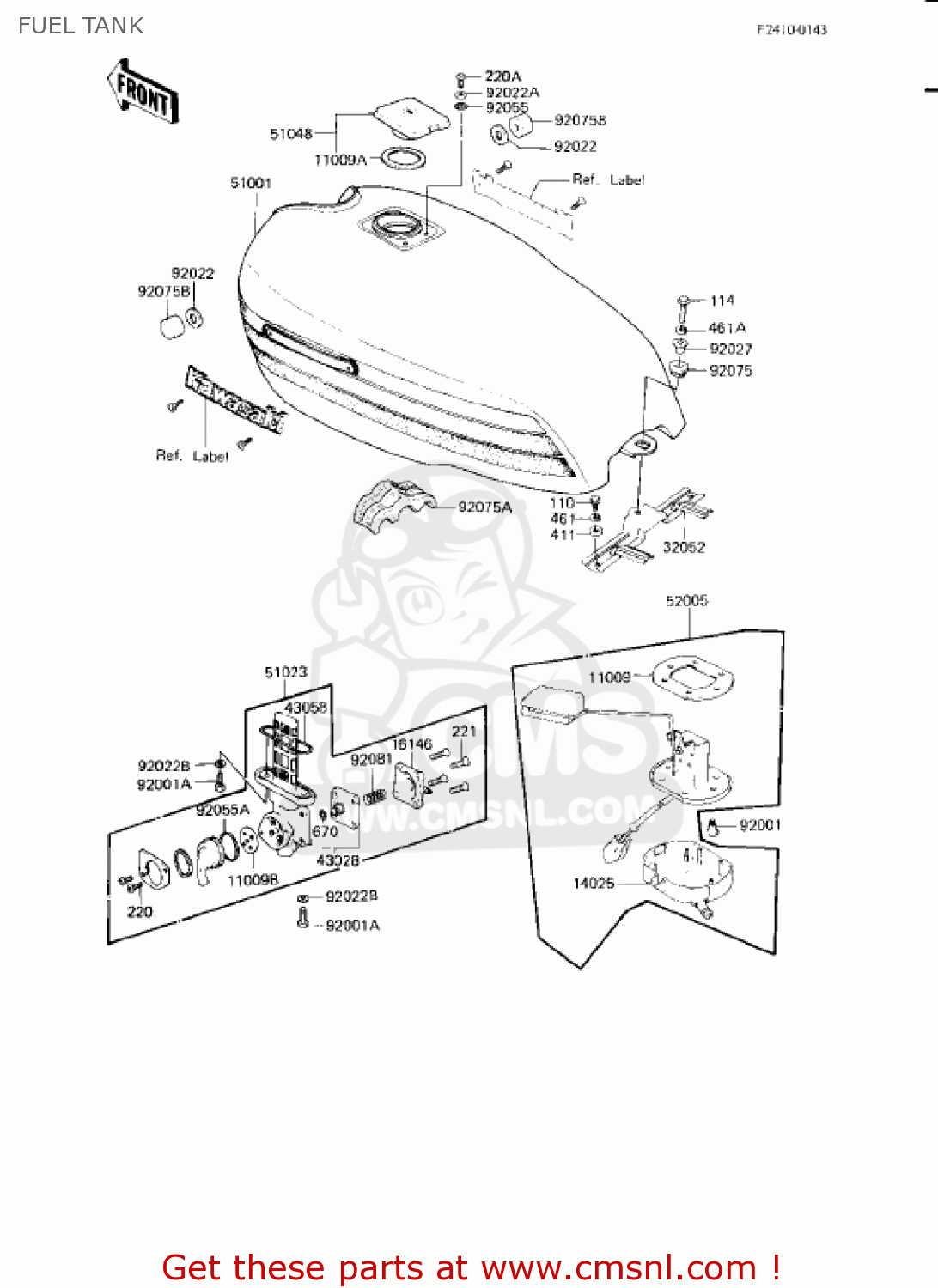

Fuel tank diagram KZ750L3 1983 USA CANADA
FUEL TANK KZ750L3 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091037
ref: 11009
GASKET (NAS)
€ 14.00
11009A
110091051
ref: 11009A
GASKET,FUEL TANK CAP (NAS)
€ 7.00
11009B
110091194
ref: 11009B
GASKET,TAP VALVE (NAS)
€ 6.50
14025
140241434
ref: 14025
COVER,FUEL GAUGE
€ 22.50
16146
161461005
ref: 16146
COVER-ASSY,TAP DIAPHR
€ 14.00
32052
320521078
ref: 32052
BRACKET-TANK,RR
€ 16.50
43028
430281015
ref: 43028
DIAPHRAGM,TAP
€ 14.50
43058
51039010
ref: 43058
RING,TAP FLANGED
€ 4.50
51001
510015242H8
ref: 51001
TANK-COMP-FUEL,EBONY
€ 617.00
51023
510231031
ref: 51023
TAP ASSY,FUEL
€ 107.00
51048
510481015
ref: 51048
CAP-ASSY-TANK,FUEL
€ 115.00
52005
520051028
ref: 52005
GAUGE,FUEL
€ 72.50
92001
920011069
ref: 92001
BOLT,FUEL GAUGE FIT
€ 4.50
92001
920011069
ref: 92001
BOLT,FUEL GAUGE FIT
€ 4.50
92001A
920011091
ref: 92001A
BOLT,6X20,FUEL TAP
€ 2.50
92022
92022044
ref: 92022
WASHER,10.5X26X2.3
€ 2.50
92022A
920221038
ref: 92022A
WASHER,PLAIN
€ 2.50
92022B
92022183
ref: 92022B
WASHER,6.2X11X1.5
€ 2.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92055
920551023
ref: 92055
ORING
€ 2.50
92055A
920551027
ref: 92055A
RING-O,TAP LEVER
€ 3.50
92075
920751116
ref: 92075
DAMPER,FUEL TANK
€ 4.00
92075A
920751245
ref: 92075A
DAMPER,FUEL TANK
€ 19.00
92075B
92075125
ref: 92075B
DAMPER RUBBER-FL TANK
€ 4.00
92081
920811171
ref: 92081
SPRING,TAP
€ 2.50
110
112G0612
ref: 110
BOLT-UPSET
€ 2.50
114
115G0830
ref: 114
BOLT-SMALL-UPSET,8X30
€ 3.00
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0510
ref: 220A
SCREW-PAN-CROS,5X10
€ 0.50
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
670
670B1504
ref: 670
O RING,4MM
€ 2.50
