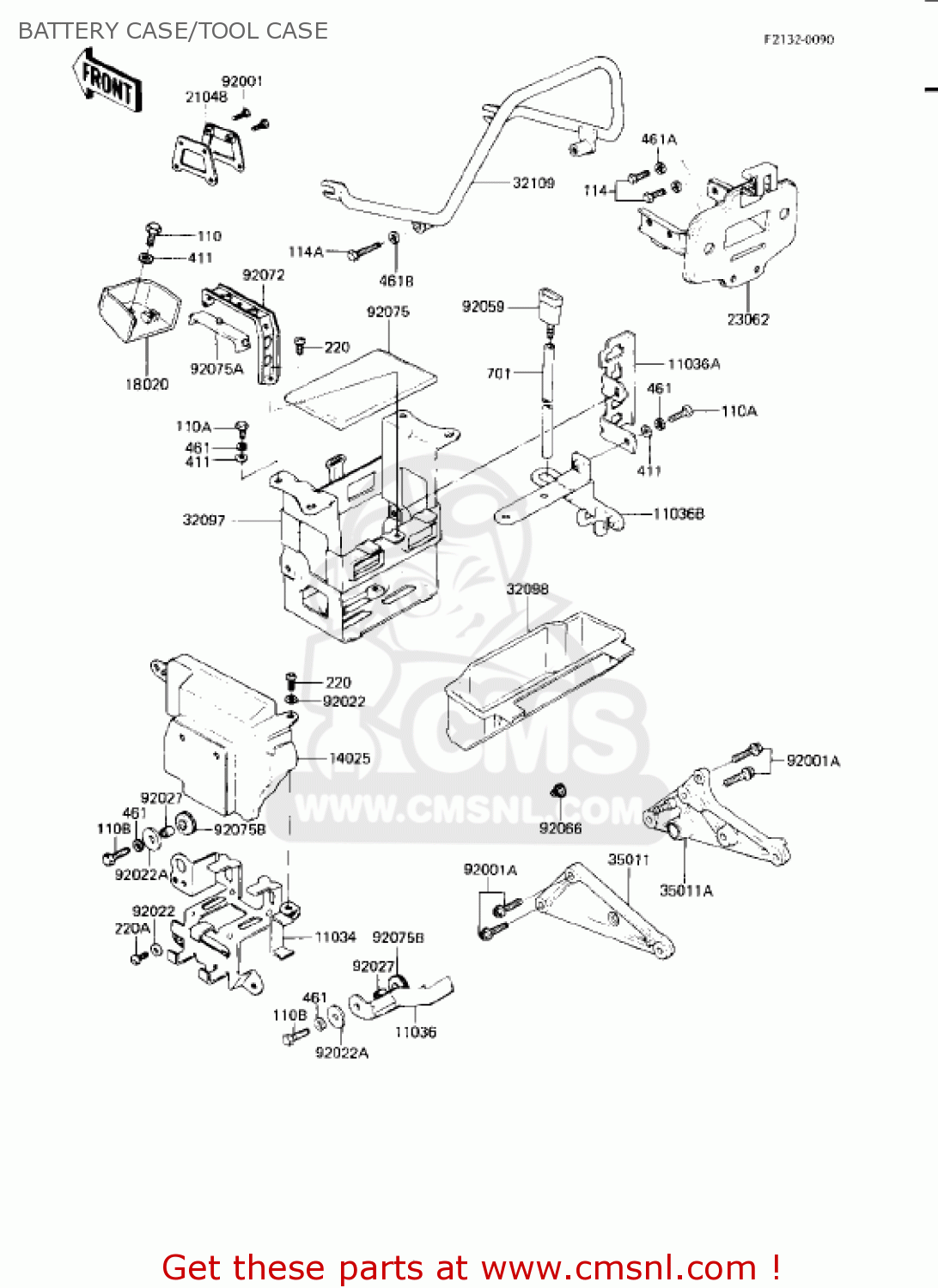

BATTERY CASE/TOOL CASE

ref

part #

description

quantity

11034

110341669
ref: 11034

BRACKET,ELECTRO BASE

€ 34.00

11036

110361043
ref: 11036

BRACKET-A,FUSE

€ 2.50

11036A

110361475
ref: 11036A

BRACKET-A,COUPLER

€ 8.00

11036B

110361662
ref: 11036B

BRACKET-A,BATTERY CAS

€ 15.50

14025

140251191
ref: 14025

COVER,ELECTRO BASE

€ 7.00

18020

180201060
ref: 18020

BAFFLE,CARBURETOR AIR

€ 10.00

21048

210481001
ref: 21048

PLATE-COIL

€ 14.00

23062

230621024
ref: 23062

BRACKET-COMP,TAIL LAM

€ 33.50

32097

320981011
ref: 32097

CASE-TOOL

€ 20.50

32098

320981011
ref: 32098

CASE-TOOL

€ 20.50

32109

321091031
ref: 32109

GRIP-FRAME

€ 124.50

35011

350111121
ref: 35011

STAY,MUFFLER,LH

€ 51.00

35011A

350111122
ref: 35011A

STAY,MUFFLER,RH

€ 83.00

92001

92001137
ref: 92001

BOLT,HEX HEAD,6M/M

€ 4.00

92001A

920011508
ref: 92001A

BOLT,FLANGED,8X28,BLA

€ 3.00

92022

92022024
ref: 92022

WASHER,7X16X1.2

€ 2.50

92022A

92022228
ref: 92022A

WASHER-PLAIN,7MM

€ 2.50

92027

92027291
ref: 92027

COLLAR,6.5X8.5X14

€ 2.50

92059

92059101
ref: 92059

TUBE,CONNECTOR

€ 6.00

92066

920661077
ref: 92066

CAP,REAR VIEW MIRROR

€ 3.00

92072

920721019
ref: 92072

BAND,BATTERY

€ 6.50

92075

920751076
ref: 92075

DAMPER,BATTERY BASE

€ 6.00

92075A

920751113
ref: 92075A

DAMPER,BATTERY BAND

€ 4.50

92075B

92075317
ref: 92075B

DAMPER

€ 2.50

110

112G0610
ref: 110

BOLT,6X10

€ 0.50

110A

112G0612
ref: 110A

BOLT-UPSET

€ 2.50

110B

112G0625
ref: 110B

BOLT-UPSET,6X25

€ 4.00

114

115G0816
ref: 114

BOLT-HEX,HEAD 8X16

€ 0.50

114A

115C0835
ref: 114A

BOLT-SMALL-UPSET

€ 1.50

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

461A

461F0600
ref: 461A

WASHER-SPRING,6MM

€ 0.50

461A

461F0800
ref: 461A

WASHER-SPRING,8MM

€ 0.50

461B

461K0800
ref: 461B

WASHER-SPRING,8MM,BLA

€ 1.50

701

701Q06300
ref: 701

TUBE-PVC,6X300

€ 2.50

all assemblies
