CARBUERTOR ASSY
KZ750L3 1983 USA CANADA

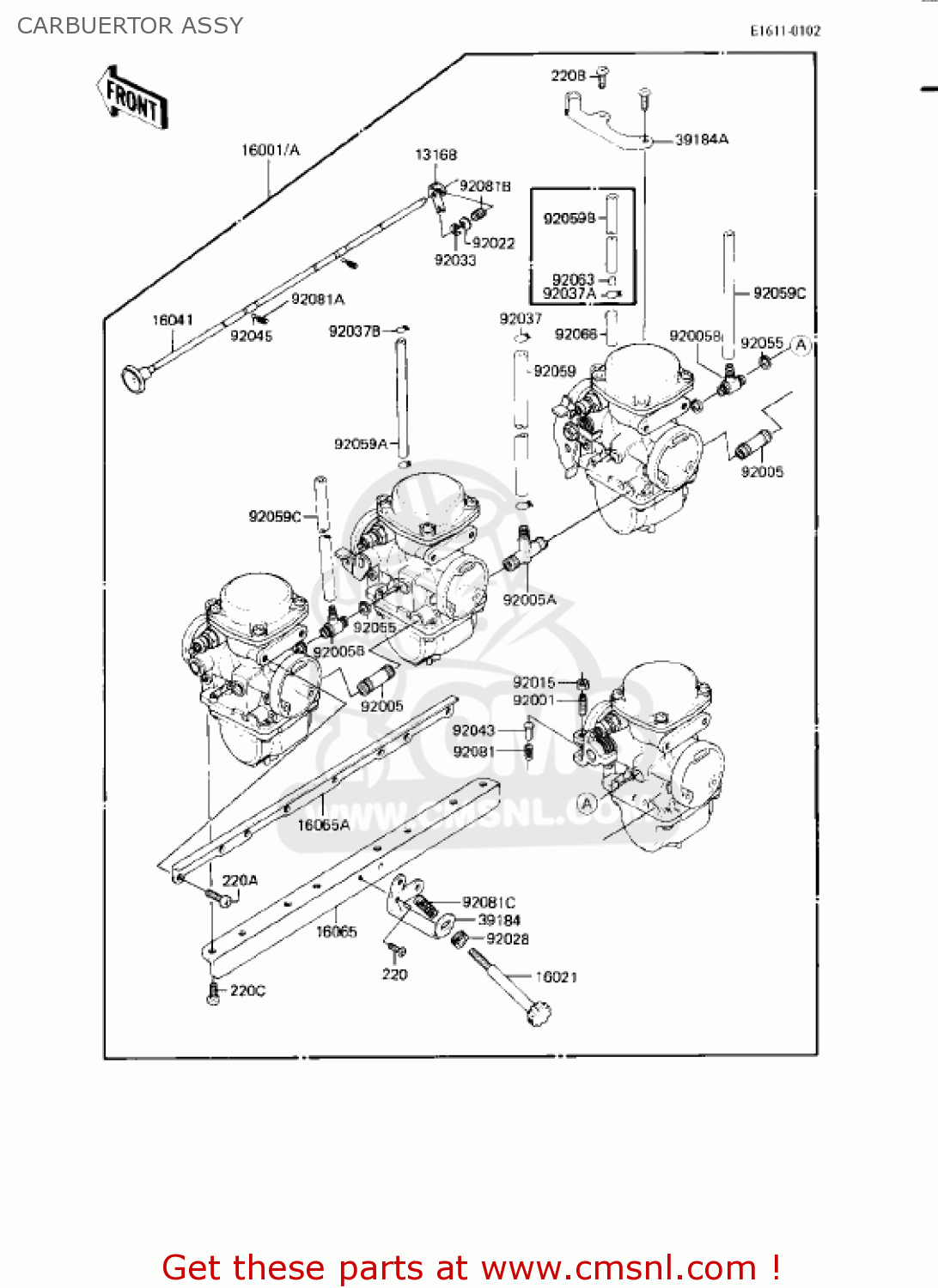

Carbuertor assy diagram KZ750L3 1983 USA CANADA
CARBUERTOR ASSY KZ750L3 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13168
131681091
ref: 13168
LEVER,CHOKE
€ 6.00
16001
160011759
ref: 16001
US
CARBURETOR
€ 880.50
16001A
160011764
ref: 16001A
CN
CARBURETOR
€ 2,044.00
16021
160211035
ref: 16021
SCREW-THROTTLE STOP
€ 16.50
16041
160411024
ref: 16041
SHAFT-CARBURETOR,CHOK
€ 35.00
16065
160651043
ref: 16065
HOLDER-CARBURETOR,LWR
€ 62.00
16065A
160651044
ref: 16065A
HOLDER-CARBURETOR,UPP
€ 41.00
39184
391841007
ref: 39184
BRACKET-ASSY,IDLING A
€ 20.00
39184A
391841009
ref: 39184A
BRACKET-ASSY,THROTTLE
€ 19.00
92001
920011447
ref: 92001
BOLT,ADJUSTING
€ 6.50
92005
920051035
ref: 92005
FITTING,FUEL,I-TYPE
€ 35.00
92005A
920051036
ref: 92005A
FITTING,FUEL,T-TYPE
€ 48.50
92005B
920051045
ref: 92005B
FITTING,AIR VENT
€ 24.00
92015
920151119
ref: 92015
NUT,THROTTLE VALVE AD
€ 3.50
92022
920221255
ref: 92022
WASHER,SPRING
€ 3.50
92028
920281071
ref: 92028
BUSHING,IDLING ADJUST
€ 4.50
92033
920331066
ref: 92033
RING-SNAP,E-TYPE
€ 3.50
92037
920371184
ref: 92037
CLAMP,HOSE
€ 1.00
92037A
920371235
ref: 92037A
CN
CLAMP,TUBE
€ 2.50
92037B
92037174
ref: 92037B
CLAMP,BREATHER HOSE
€ 1.50
92043
920431079
ref: 92043
PIN,THROTTLE VALVE AD
€ 3.50
92045
600A0400
ref: 92045
BALL-STEEL,1/8
€ 2.00
92055
92055510
ref: 92055
RING-O
€ 7.50
92059
920591123
ref: 92059
TUBE,7.5X12.5X225
€ 17.00
92059A
920591188
ref: 92059A
TUBE,5X9X150
€ 11.00
92059B
920591204
ref: 92059B
CN
TUBE,4.5X8X200
€ 9.00
92059C
920591261
ref: 92059C
TUBE,6.5X9.5X220
€ 10.00
92063
920631097
ref: 92063
CN
JET-MAIN
€ 8.00
92066
92068006
ref: 92066
US
RUBBER PLUG
€ 2.50
92066
92068006
ref: 92066
US
RUBBER PLUG
€ 2.50
92081
920811259
ref: 92081
SPRING,THROTTLE VLV
€ 3.00
92081A
920811260
ref: 92081A
SPRING,FAST IDLE SHFT
€ 3.50
92081B
920811364
ref: 92081B
SPRING,CHOCK SHAFT
€ 3.50
92081C
920811377
ref: 92081C
SPRING,IDLING ADJUST
€ 3.00
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
€ 0.50
220A
220B0510
ref: 220A
SCREW-PAN-CROS,5X10
€ 0.50
220B
220B0512
ref: 220B
SCREW-PAN-CROS
€ 0.50
220C
220B0614
ref: 220C
SCREW-PAN HEAD,6X14
€ 2.00
