FRONT WHEEL/HUB ('80 H1)
KZ750H1 1980 USA CANADA / LTD

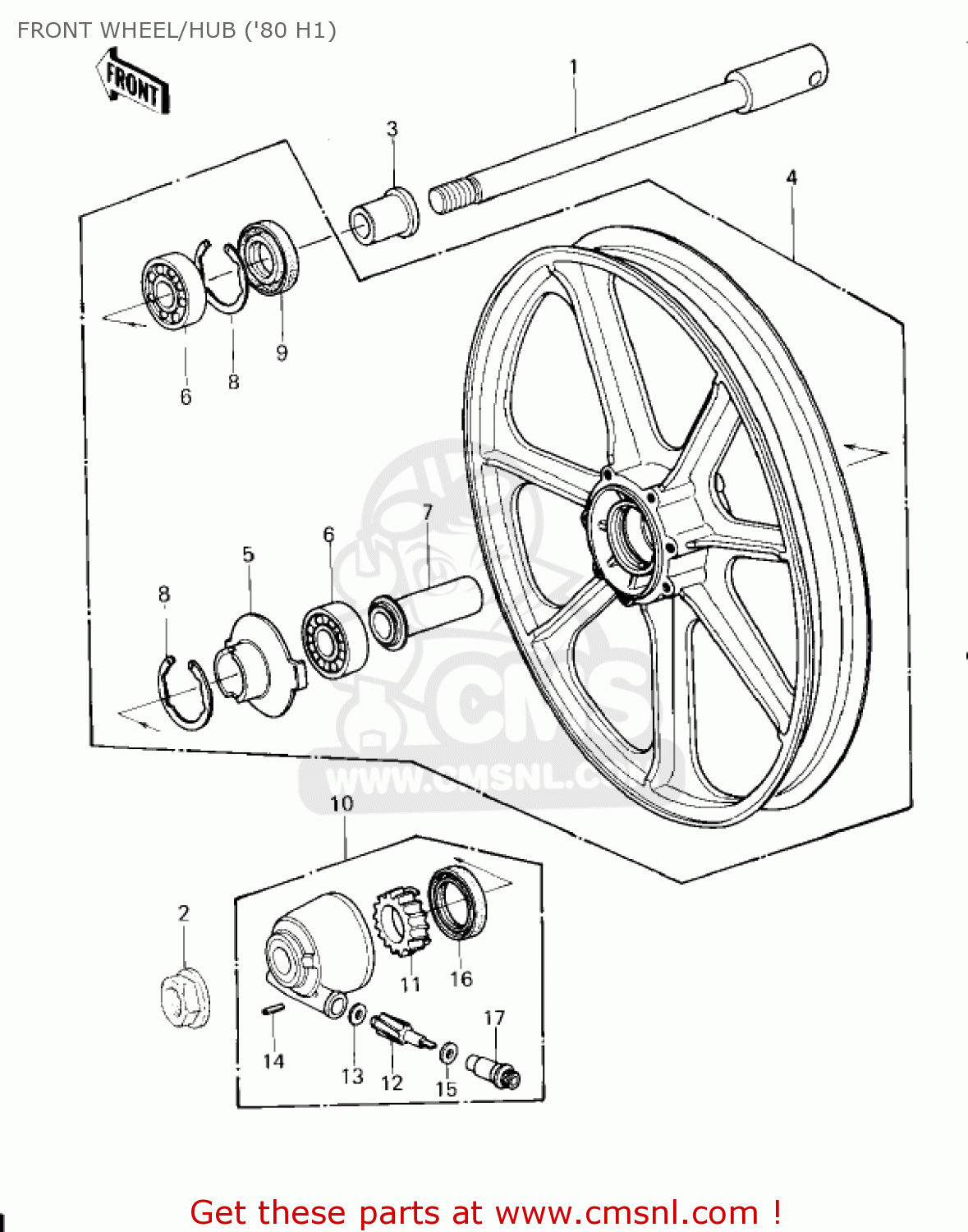

Front wheel/hub ('80 h1) diagram KZ750H1 1980 USA CANADA / LTD
FRONT WHEEL/HUB ('80 H1) KZ750H1 1980 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
1
410681009
ref: 1
AXLE,FR,L=204
€ 44.50
2
920151407
ref: 2
NUT,14MM
€ 6.50
3
920271225
ref: 3
COLLAR,FR AXLE L=30MM
€ 11.50
4
41073113921
ref: 4
WHEEL-ASSY,FR,SOLID,F
€ 698.50
5
410641006
ref: 5
RECEIVER,SPEEDOMETER
€ 9.50
6
601B6302Z
ref: 6
BEARING-BALL,#6302ZC3
€ 22.50
7
920271223
ref: 7
COLLAR,FR HUB L=55M/M
€ 5.50
8
920331041
ref: 8
CIRCLIP,42MM
€ 4.00
9
920491058
ref: 9
OIL SEAL,BJN22425
€ 7.50
10
410781013
ref: 10
CASE-ASSY-METER GEAR
€ 120.00
11
41059026
ref: 11
GEAR,SPEEDOMETER
€ 27.00
12
410601016
ref: 12
PINION,SPEEDOMETER,9T
€ 21.50
13
41063001
ref: 13
WASHER-THRST SPD PINI
€ 3.00
14
41082001
ref: 14
PIN-SPRING
€ 2.50
15
41063001
ref: 15
WASHER-THRST SPD PINI
€ 3.00
16
920491057
ref: 16
OIL SEAL,BJN30427-C3
€ 7.50
17
920871002
ref: 17
BUSHING-METER GEAR
€ 14.50
