FRONT MASTER CYLINDER ('80 H1)
KZ750H1 1980 USA CANADA / LTD

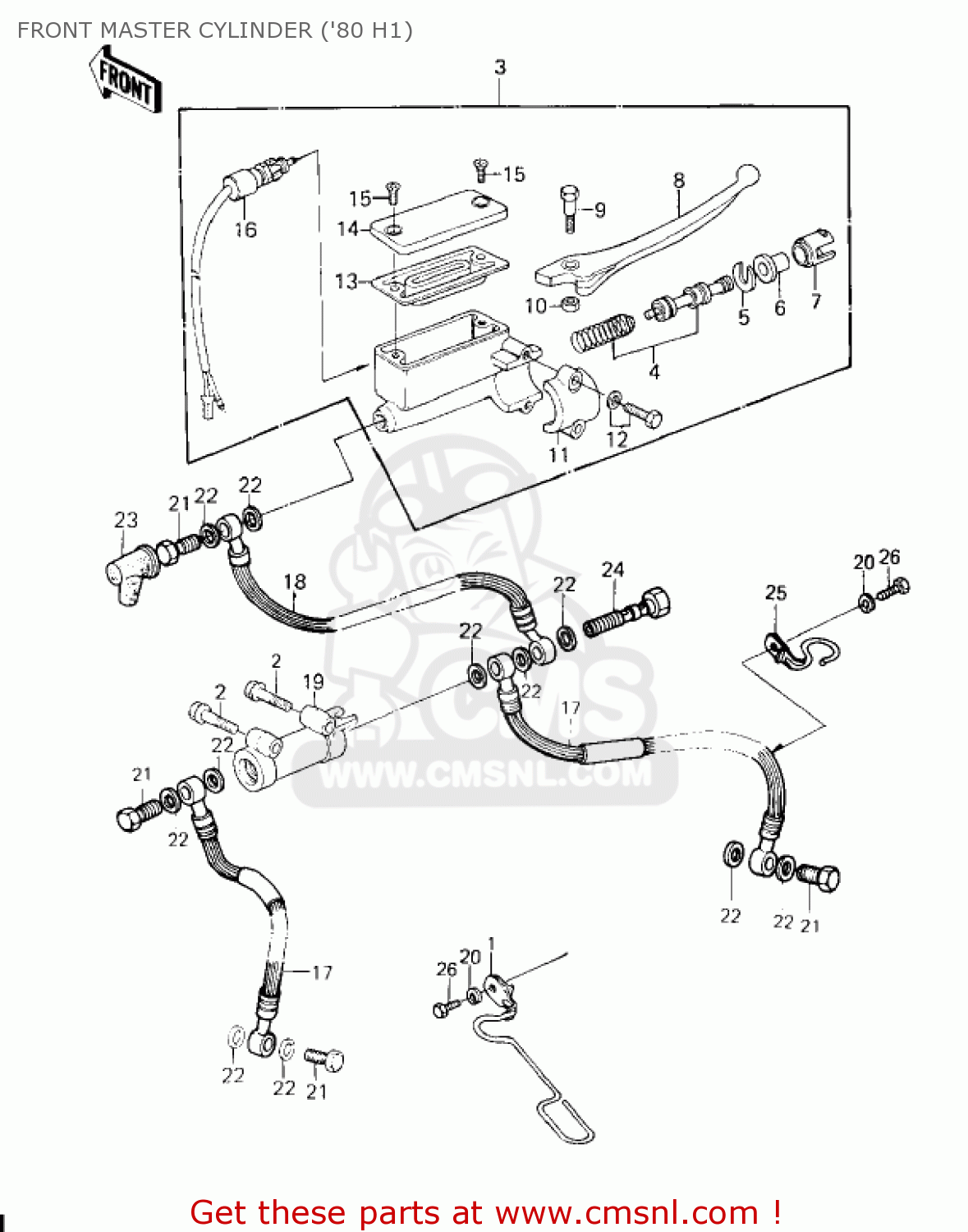

Front master cylinder ('80 h1) diagram KZ750H1 1980 USA CANADA / LTD
FRONT MASTER CYLINDER ('80 H1) KZ750H1 1980 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
1
920371116
ref: 1
CLAMP,CABLE
€ 12.50
2
130G0640
ref: 2
BOLT,FLANGED,6X40
€ 0.50
3
430151046
ref: 3
CYLINDER ASSY,FR MAST
€ 265.50
4
430201023
ref: 4
PISTON-COMP-BRAKE,FR
€ 63.50
5
430221001
ref: 5
STOPPER-BRAKE,PISTON
€ 2.50
6
490161010
ref: 6
COVER-SEAL,BRAKE PIST
€ 9.50
7
140081007
ref: 7
LINER,PISTON
€ 8.00
8
460921012
ref: 8
LEVER-GRIP,FRONT BRAK
€ 21.50
9
920011056
ref: 9
BOLT, CLUTCH LEV FITT
€ 8.50
10
312B0600
ref: 10
NUT,6MM
€ 0.50
11
430341001
ref: 11
HOLDER-BRAKE,MASTER C
€ 20.50
12
43033003
ref: 12
BOLT,6X25,W/WASHER
€ 2.50
13
430281008
ref: 13
DIAPHRAGM,MASTER CYLI
€ 20.50
14
430261006
ref: 14
CAP-BRAKE
€ 46.50
15
920011055
ref: 15
SCREW,COUNTERSUNK HED
€ 3.50
16
270101028
ref: 16
SWITCH,BRAKE
€ 59.50
17
430591098
ref: 17
HOSE,FR CALIPER,L=610
€ 74.50
18
430591063
ref: 18
HOSE-BRAKE,L=520
€ 60.50
19
430611002
ref: 19
JOINT-BRAKE
€ 48.00
20
461F0600
ref: 20
WASHER-SPRING,6MM
€ 0.50
21
920021888
ref: 21
BOLT,OIL,L=23
€ 3.50
22
43067001
ref: 22
WASHER,10.5X15X1.5
€ 1.50
23
490061041
ref: 23
BOOT,DUST
€ 7.50
24
920021909
ref: 24
BOLT
€ 8.50
25
920371054
ref: 25
CLAMP,FRONT BRAKE HOS
€ 3.50
26
112G0612
ref: 26
BOLT-UPSET
€ 2.50
