CARBURETOR ASSY ('80 H1)
KZ750H1 1980 USA CANADA / LTD

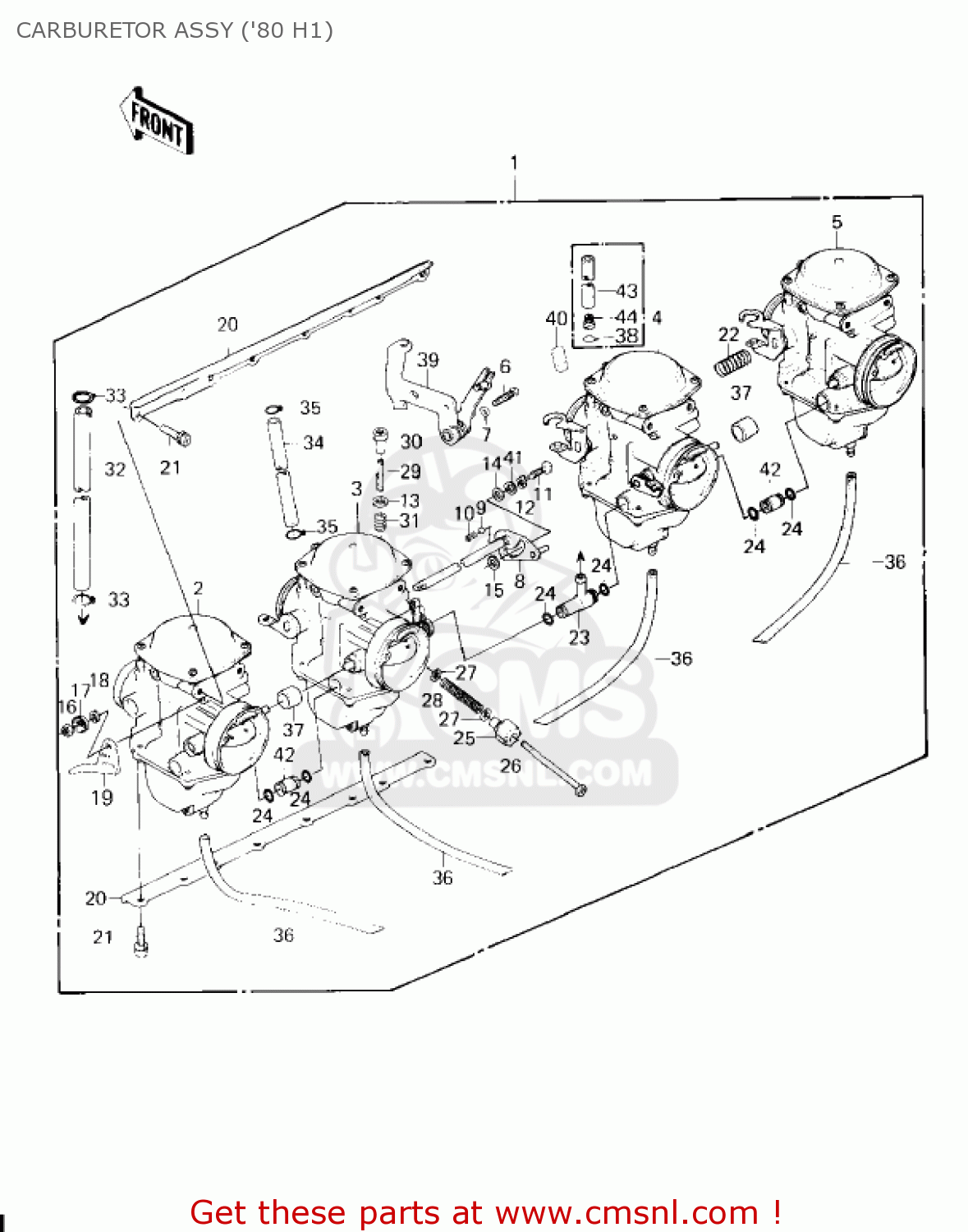

Carburetor assy ('80 h1) diagram KZ750H1 1980 USA CANADA / LTD
CARBURETOR ASSY ('80 H1) KZ750H1 1980 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
1
160011200
ref: 1
CARBURETOR
€ 923.00
1
160011314
ref: 1
CARBURETOR
€ 1,858.50
2
160011309
ref: 2
CARBURETOR,OUTSIDE,LH
€ 217.50
2
160011320
ref: 2
CARBURETOR,L.H.OUTSID
€ 337.50
3
160011310
ref: 3
CARBURETOR,INSIDE,LH
€ 228.50
3
160011321
ref: 3
CARBURETOR,L.H.INSIDE
€ 367.50
4
160011311
ref: 4
CARBURETOR,INSIDE,RH
€ 280.00
4
160011322
ref: 4
CARBURETOR,R.H,INSIDE
€ 286.50
5
160011312
ref: 5
CARBURETOR,OUTSIDE,RH
€ 284.50
5
160011323
ref: 5
CARBURETOR,R.H.OUTSID
€ 286.50
6
220B0520
ref: 6
SCREW-PAN-CROS
€ 0.50
7
461F0500
ref: 7
WASHER-SPRING,5MM
€ 0.50
8
160411017
ref: 8
SHAFT,CHOKE LINK
€ 29.50
9
921401004
ref: 9
BALL,STEEL,3/16"
€ 1.50
10
920811249
ref: 10
SPRING
€ 4.00
11
920091096
ref: 11
SCREW,LINK SHAFT
€ 6.00
12
920811262
ref: 12
SPRING,WAVED WASHER
€ 3.00
13
920221204
ref: 13
WASHER
€ 2.00
14
920221199
ref: 14
WASHER,6.1X11X0.8,POL
€ 3.00
15
920221200
ref: 15
WASHER,6.4X9.4X0.8,PO
€ 2.00
16
311B0500
ref: 16
NUT-HEX
€ 0.50
17
920221201
ref: 17
WASHER,LOCK,5M/M
€ 2.00
18
461F0500
ref: 18
WASHER-SPRING,5MM
€ 0.50
19
131681065
ref: 19
LEVER,CHOKE
€ 8.50
20
110341800
ref: 20
PLATE,CARBURETOR STAY
€ 39.50
21
920091129
ref: 21
SCREW,6X16
€ 3.00
22
920811250
ref: 22
SPRING
€ 3.50
23
920051026
ref: 23
FITTING,FUEL TUBE
€ 28.00
24
920551004
ref: 24
O RING
€ 2.50
25
130911078
ref: 25
HOLDER,ADJUST
€ 9.00
26
920011328
ref: 26
BOLT,HEX HEAD,5X70
€ 6.50
27
920221203
ref: 27
WASHER
€ 2.50
28
920811251
ref: 28
SPRING
€ 3.00
29
160211027
ref: 29
SCREW,SLOTTED
€ 12.00
30
920151118
ref: 30
NUT,5MM
€ 4.50
31
920811252
ref: 31
SPRING
€ 2.50
32
920591029
ref: 32
TUBE,FUEL,7.3X12.5X20
€ 18.50
33
920371075
ref: 33
CLAMP,FUEL INLET TUBE
€ 2.50
34
920591001
ref: 34
HOSE, FUEL INLET
€ 13.50
35
920371682
ref: 35
CLAMP,TUBE
€ 4.00
36
920591140
ref: 36
TUBE,3.5X6.5X180
€ 17.50
37
110121130
ref: 37
TUBE,DUST SEAL
€ 2.00
38
920371201
ref: 38
CLAMP
€ 3.00
39
110341799
ref: 39
BRACKET,THROTTLE CBLE
€ 9.50
40
110121129
ref: 40
CAP,RUBBER
€ 4.50
40
110121129
ref: 40
CAP,RUBBER
€ 4.50
41
920221207
ref: 41
WASHER,6.5X11X1.2,STE
€ 2.50
42
920051027
ref: 42
NIPPLE,FUEL
€ 10.50
43
920591148
ref: 43
TUBE,4.5X8X180
€ 7.50
44
920631086
ref: 44
JET-MAIN,#75
€ 7.50
