STARTER MOTOR/STARTER CLUTCH ('8
KZ750E1 1980 USA CANADA

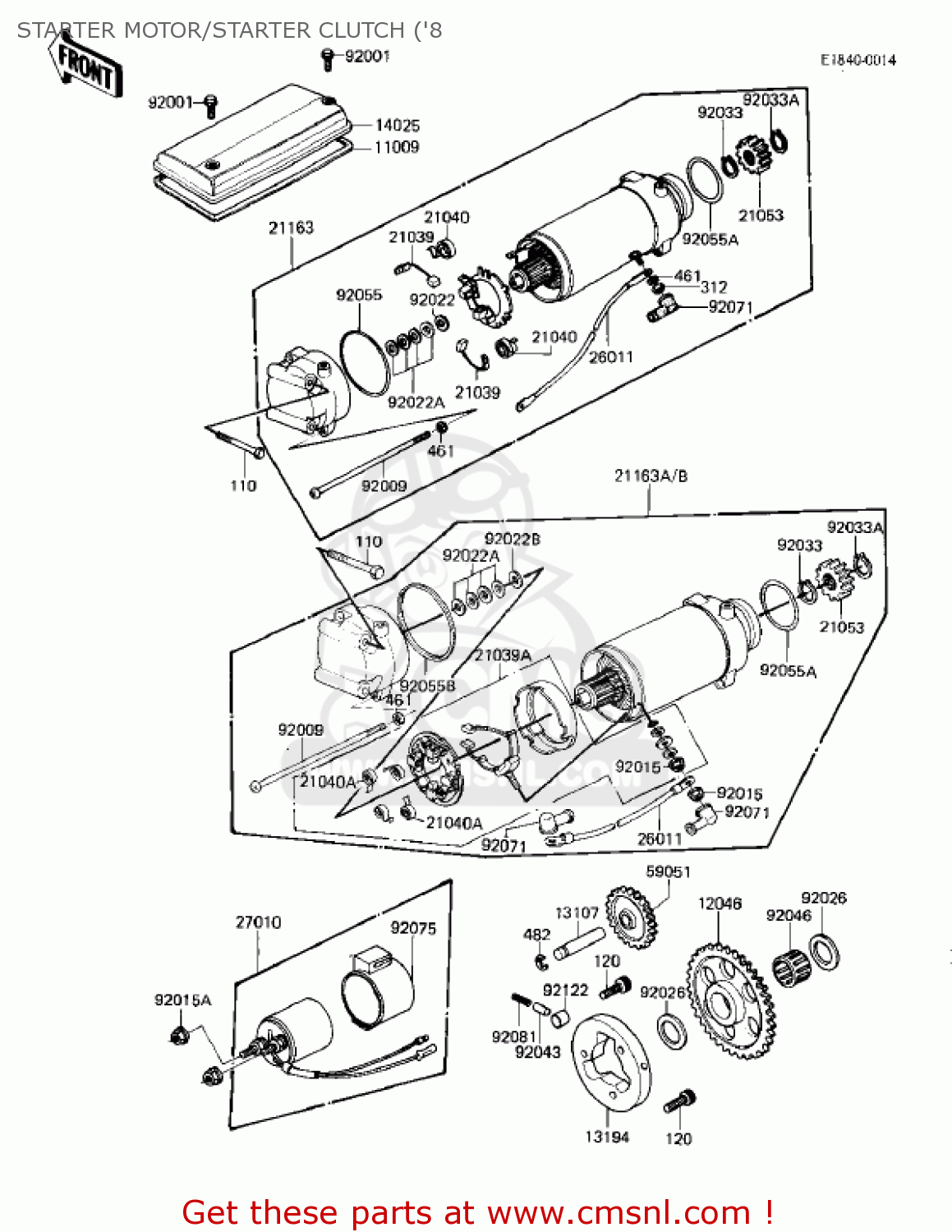

Starter motor/starter clutch ('8 diagram KZ750E1 1980 USA CANADA
STARTER MOTOR/STARTER CLUTCH ('8 KZ750E1 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
21166003
ref: 11009
GASKET,STARTER COVER (NAS)
€ 9.50
12046
120461032
ref: 12046
SPROCKET,STARTER,58T
€ 99.50
13107
21143003
ref: 13107
SHAFT,IDLE GEAR
€ 10.00
13194
131931012
ref: 13194
CLUTCH TARIER
€ 152.50
14025
21165003
ref: 14025
COVER,STARTER
€ 13.50
21039
21039003
ref: 21039
BRUSH,CARBON
€ 23.50
21039A
210391053
ref: 21039A
BRUSH,CARBON
€ 89.50
21040
21040003
ref: 21040
SPRING-BRUSH
€ 4.50
21040A
210401003
ref: 21040A
SPRING-BRUSH
€ 6.00
21053
21053004
ref: 21053
PINION, STARTER
€ 69.00
21163
211631190
ref: 21163
( - KZ750EE062600)
STARTER-ELECTRIC
€ 707.50
21163A
211631190
ref: 21163A
STARTER-ELECTRIC
€ 707.50
21163B
211631190
ref: 21163B
( KZ750EE062601 - )
STARTER-ELECTRIC
€ 707.50
26011
260111081
ref: 26011
WIRE,STARTER MOTR LD
€ 51.50
27010
21164005
ref: 27010
SWITCH ASSY,MAGNETIC
€ 99.00
59051
21167004
ref: 59051
GEAR-SPUR,IDLE,29T
€ 69.50
92001
920011151
ref: 92001
BOLT,6X10
€ 3.00
92009
21099006
ref: 92009
SCREW,PAN HEAD, 6X130
€ 4.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
92017014
ref: 92015A
NUT,LOCK,6MM
€ 4.00
92022
21025010
ref: 92022
WASHER,THRUST,T=1.6
€ 4.00
92022A
21025011
ref: 92022A
WASHER, THRUST, 0.2T
€ 4.00
92022B
920221132
ref: 92022B
WASHER,9.1X18X0.8
€ 4.00
92026
920261025
ref: 92026
SPACER,25X36X3.2
€ 3.50
92033
92033034
ref: 92033
CIRCLIP
€ 7.00
92033A
92033037
ref: 92033A
RING-SNAP,13MM
€ 6.50
92043
92043087
ref: 92043
PIN
€ 8.00
92046
92046056
ref: 92046
BEARING-NEEDLE,K25301
€ 24.00
92055
21027006
ref: 92055
RING-O,62MM
€ 8.00
92055A
21027008
ref: 92055A
O RING, 40M/M
€ 8.50
92055B
920551086
ref: 92055B
O RING,64MM
€ 6.50
92071
21017017
ref: 92071
GROMMET-CORD
€ 6.50
92075
21064002
ref: 92075
DAMPER,MAGNETIC SWITC
€ 13.50
92081
92081110
ref: 92081
SPRING
€ 3.00
92122
92122004
ref: 92122
ROLLER,15X13
€ 7.00
110
112G0660
ref: 110
BOLT-UPSET
€ 3.00
120
120P0812
ref: 120
BOLT,SOCKET,8X12
€ 2.50
312
312B0600
ref: 312
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
482
482K0200
ref: 482
CIRCLIP-TYPE-E,12MM
€ 0.50
