CRANKCASE BOLT & STUD PATTERN ('
KZ750E1 1980 USA CANADA

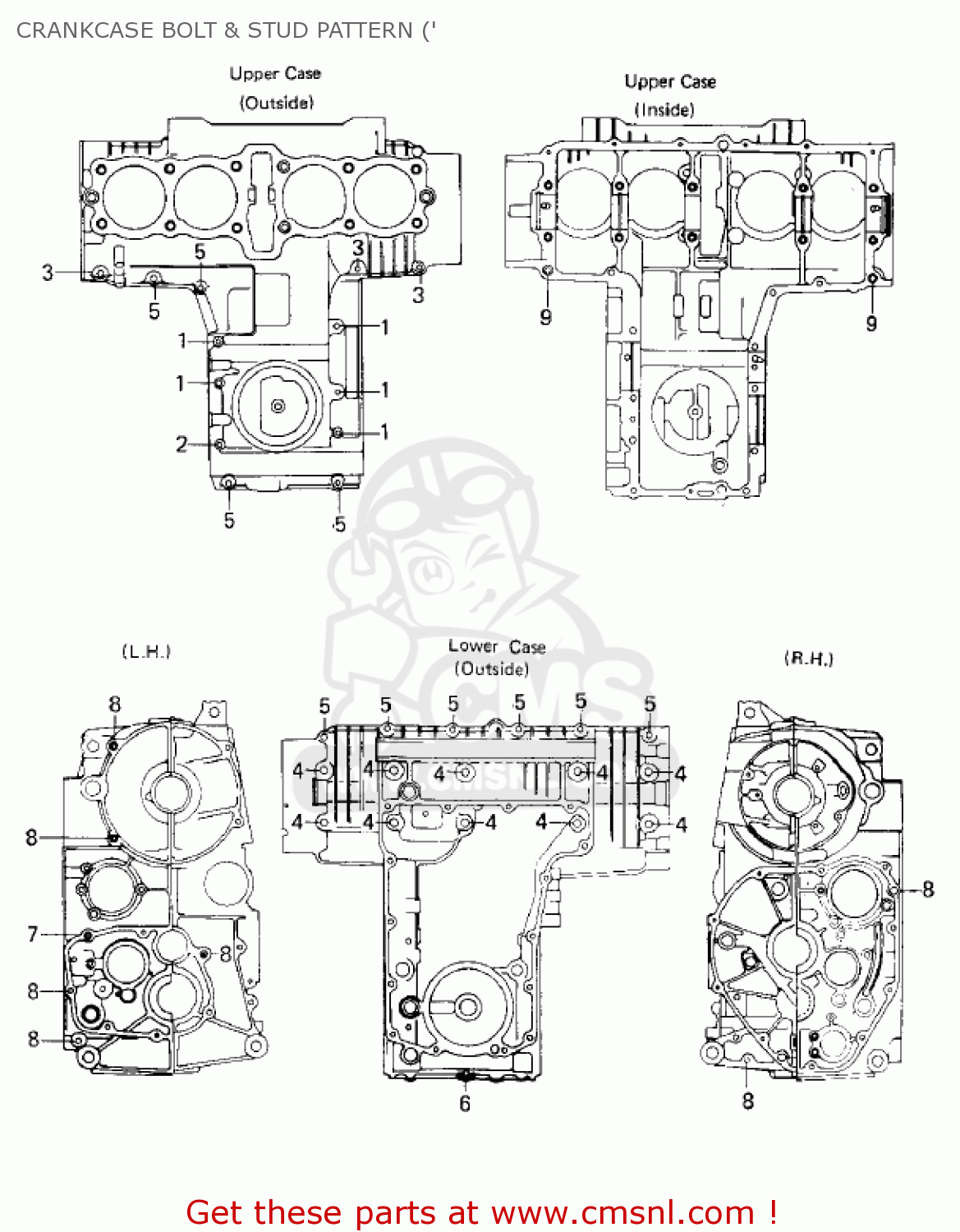

Crankcase bolt & stud pattern (' diagram KZ750E1 1980 USA CANADA
CRANKCASE BOLT & STUD PATTERN (' KZ750E1 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92003111
ref: 1
BOLT-HEX HEAD,6X99
€ 2.00
2
92003113
ref: 2
BOLT-HEX HEAD,6X116
€ 3.00
3
130G0650
ref: 3
(*) MARKED PARTS ARE
BOLT-FLANGED,6X50
€ 1.00
3
130G0650
ref: 3
BOLT-FLANGED,6X50
€ 1.00
4
130P0895
ref: 4
BOLT-FLANGED,8X95
€ 7.00
5
92003109
ref: 5
(*) MARKED PARTS ARE
BOLT-HEX HEAD,6X41
€ 5.50
5
92003109
ref: 5
BOLT-HEX HEAD,6X41
€ 5.50
6
92003194
ref: 6
BOLT,6X105
€ 1.50
7
551A0614
ref: 7
PIN,DOWEL, 6X14
€ 2.50
8
92042007
ref: 8
PIN-DOWEL
€ 4.00
9
920431037
ref: 9
(*) MARKED PARTS ARE
PIN,DOWEL,10X8.2X14
€ 0.50
