CRANKCASE ('81 -'82 KZ750-E2/E3)
KZ750E1 1980 USA CANADA

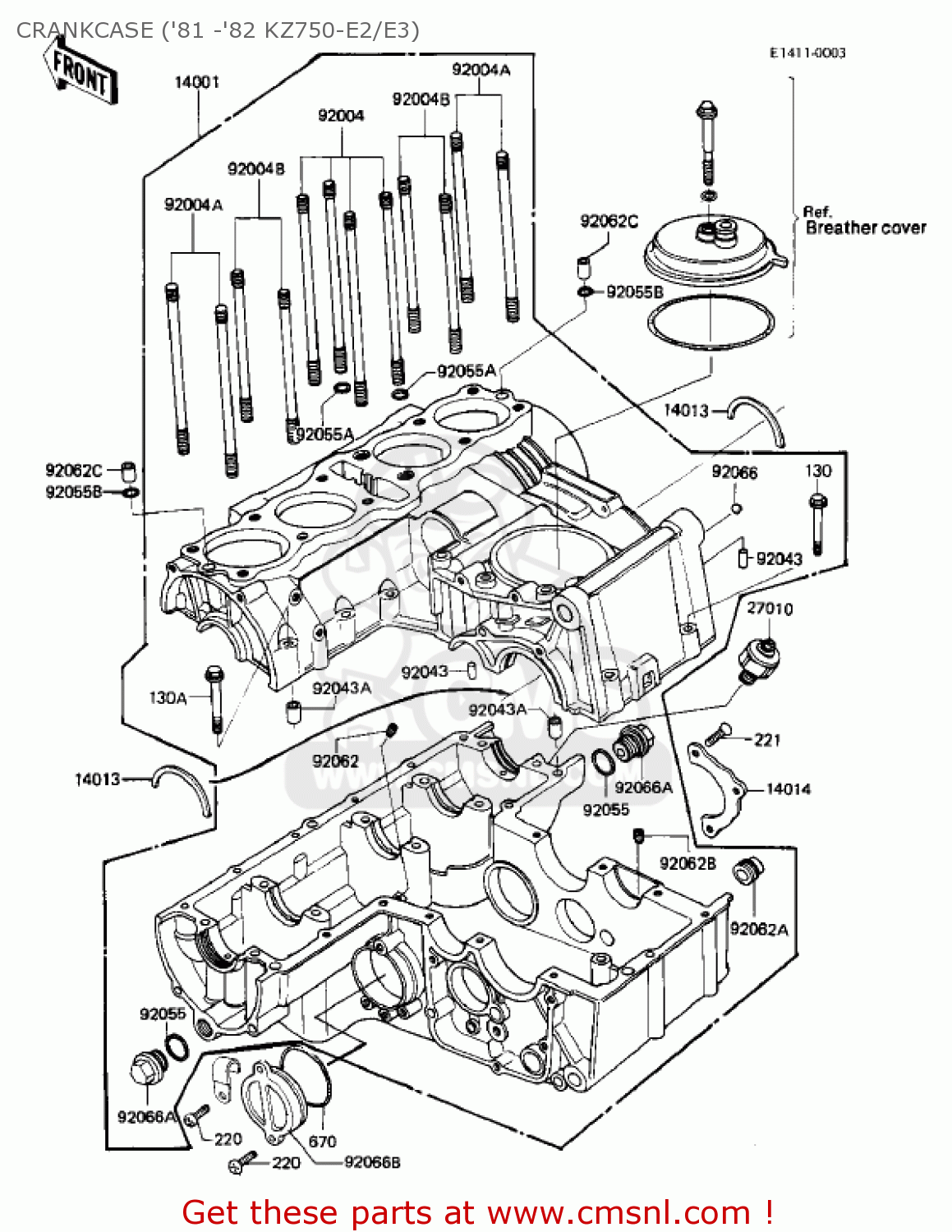

Crankcase ('81 -'82 kz750-e2/e3) diagram KZ750E1 1980 USA CANADA
CRANKCASE ('81 -'82 KZ750-E2/E3) KZ750E1 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
14001
140015170
ref: 14001
SET-CRANKCASE
€ 1,374.00
14013
14013004
ref: 14013
RING-BEARING SETTING
€ 7.00
14014
140141007
ref: 14014
PLATE-POSITION,SECOND
€ 7.00
27010
16144006
ref: 27010
SWITCH,OIL PRESSURE
€ 28.00
92004
92004062
ref: 92004
STUD, 10X153
€ 13.50
92004A
920041004
ref: 92004A
STUD, 10X133
€ 11.50
92004B
920041007
ref: 92004B
STUD, 10X116
€ 6.00
92043
92042016
ref: 92043
PIN,DOWEL,6X16
€ 3.50
92043A
920431037
ref: 92043A
PIN,DOWEL,10X8.2X14
€ 0.50
92055
920551146
ref: 92055
RING-O
€ 5.50
92055A
92055099
ref: 92055A
O RING, 8.8MM
€ 3.00
92055B
670D2010
ref: 92055B
O RING,10MM
€ 1.00
92062
92062011
ref: 92062
NOZZLE,OIL
€ 5.50
92062A
92062014
ref: 92062A
NOZZLE
€ 6.00
92062B
92062015
ref: 92062B
NOZZLE
€ 4.00
92062C
92062016
ref: 92062C
NOZZLE
€ 3.50
92066
92066057
ref: 92066
PLUG,RUBBER BALL,6.7
€ 3.00
92066A
92066066
ref: 92066A
PLUG
€ 7.00
92066B
920661019
ref: 92066B
PLUG,SECONDARY SHAFT,
€ 12.50
130
130G0640
ref: 130
BOLT,FLANGED,6X40
€ 0.50
130A
130G0650
ref: 130A
BOLT-FLANGED,6X50
€ 1.00
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
€ 2.50
221
221B0620
ref: 221
SCREW-CNTSNK HD,6X20
€ 0.50
670
670B3046
ref: 670
O RING,46MM
€ 3.50
