FUEL TANK ('80 KZY 50-E1)
KZ750E1 1980 USA CANADA

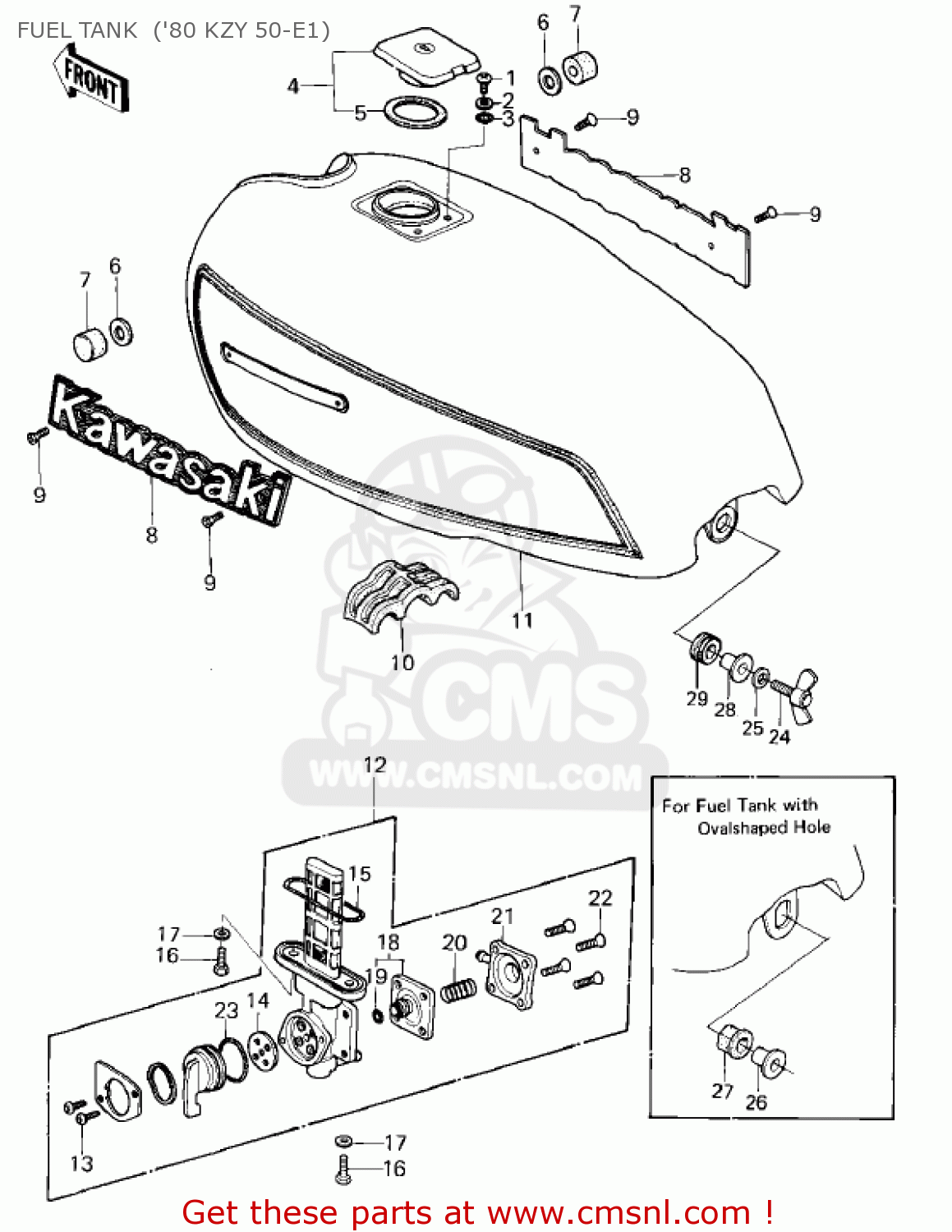

Fuel tank ('80 kzy 50-e1) diagram KZ750E1 1980 USA CANADA
FUEL TANK ('80 KZY 50-E1) KZ750E1 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
220B0510
ref: 1
SCREW-PAN-CROS,5X10
€ 0.50
2
920221038
ref: 2
WASHER,PLAIN
€ 2.50
3
920551023
ref: 3
ORING
€ 2.50
4
510481018
ref: 4
CAP-ASSY-TANK
€ 75.50
5
110091051
ref: 5
GASKET,FUEL TANK CAP (NAS)
€ 7.00
6
92022044
ref: 6
WASHER,10.5X26X2.3
€ 2.50
7
92075125
ref: 7
DAMPER RUBBER-FL TANK
€ 4.00
8
560141037
ref: 8
EMBLEM,FUEL TANK
€ 41.50
9
221C0306
ref: 9
SCREW-CSR-CROS
€ 0.50
10
920751245
ref: 10
DAMPER,FUEL TANK
€ 19.00
11
5100110497Y
ref: 11
TANK,FUEL,L.DARK RED
€ 609.00
12
510231029
ref: 12
TAP ASSY,FUEL
€ 94.50
13
220B0308
ref: 13
SCREW-PAN-CROS
€ 0.50
14
110091194
ref: 14
GASKET,TAP VALVE (NAS)
€ 6.50
15
51039010
ref: 15
RING,TAP FLANGED
€ 4.50
16
920011091
ref: 16
BOLT,6X20,FUEL TAP
€ 2.50
17
92022183
ref: 17
WASHER,6.2X11X1.5
€ 2.50
18
430281015
ref: 18
DIAPHRAGM,TAP
€ 14.50
19
670B1504
ref: 19
O RING,4MM
€ 2.50
20
920811171
ref: 20
SPRING,TAP
€ 2.50
21
161461005
ref: 21
COVER-ASSY,TAP DIAPHR
€ 14.00
22
221B0414
ref: 22
SCREW-CSR-CROS,4X14
€ 2.50
23
920551027
ref: 23
RING-O,TAP LEVER
€ 3.50
24
920011054
ref: 24
BOLT,WINGED,8MM
€ 14.50
25
92022101
ref: 25
WASHER,8.5X26X0.8
€ 2.50
26
920271134
ref: 26
COLLAR,FUEL TANK FITT
€ 7.00
27
920751116
ref: 27
DAMPER,FUEL TANK
€ 4.00
28
920271116
ref: 28
COLLAR,L=16.3
€ 6.00
29
920751086
ref: 29
DAMPER
€ 3.50
