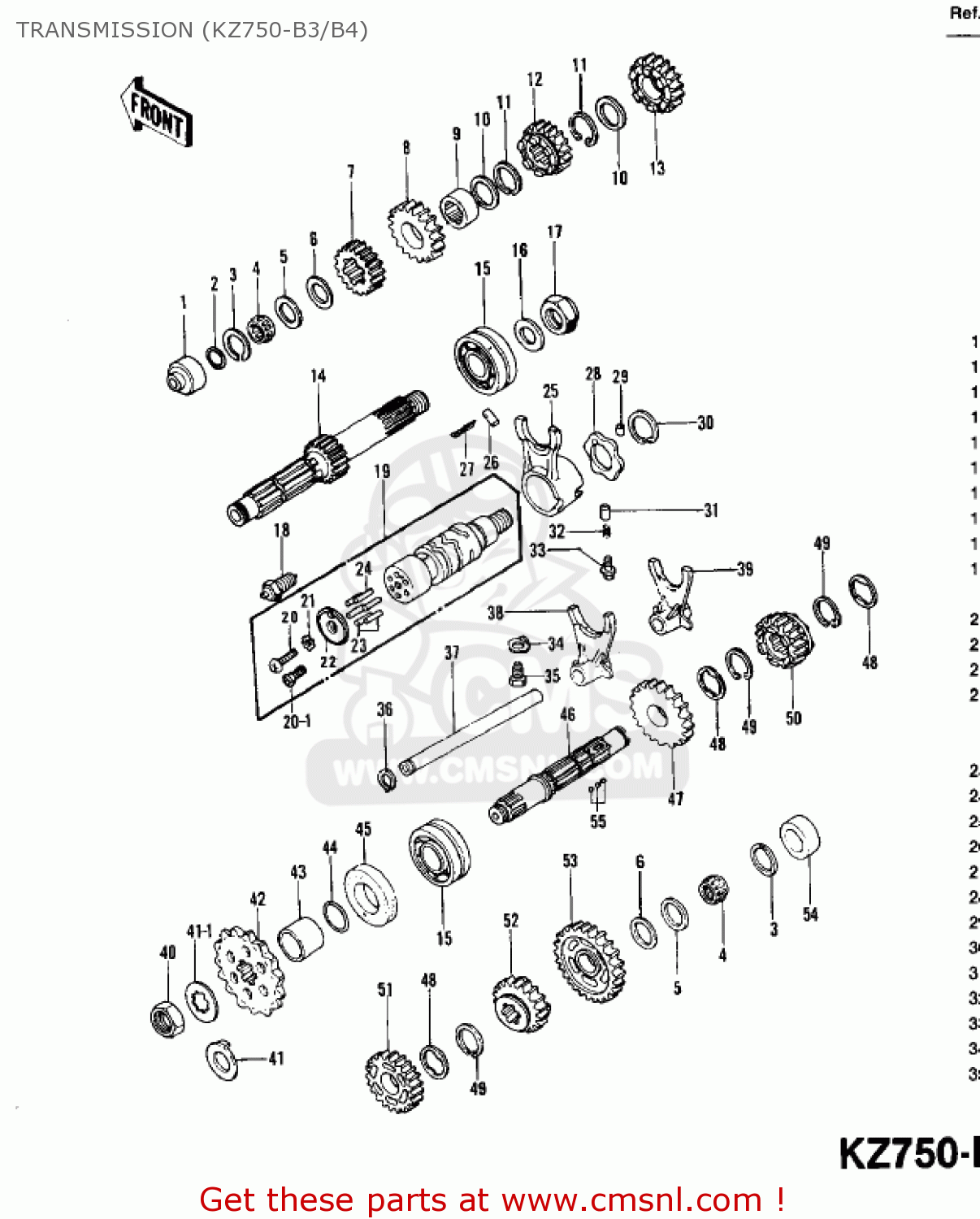

TRANSMISSION (KZ750-B3/B4)

ref

part #

description

quantity

1

92028179
ref: 1

BUSHING,INPUT SHAFT

€ 57.50

2

670B1507
ref: 2

O RING,7MM

€ 1.00

3

92033015
ref: 3

CIRCLIP

€ 2.50

4

920461030
ref: 4

BEARING-NEEDLE,VS20/1

€ 23.00

5

92022112
ref: 5

WASHER,20.5X30X1,STEE

€ 6.00

5

92022144
ref: 5

SHIM-KICK SHAFT

€ 4.50

5

920221026
ref: 5

WASHER,20.3X30X0.7,ST

€ 4.00

6

92022113
ref: 6

WASHER,20.5X30X1

€ 6.00

7

13130041
ref: 7

2ND GEAR,DRIVE

€ 69.50

8

131291045
ref: 8

TOP GEAR,DRIVE SHAFT

€ 50.50

9

920281007
ref: 9

BUSHING,INPUT TOP GEA

€ 26.50

10

92022161
ref: 10

WASHER-THRUST,25MM

€ 7.00

11

92033026
ref: 11

CIRCLIP

€ 6.00

12

131291032
ref: 12

3RD GEAR,DRIVE SHAFT

€ 90.00

13

131291044
ref: 13

GEAR,INPUT 4TH,25T

€ 87.50

14

13127051
ref: 14

SHAFT,DRIVE

€ 89.50

15

92045035
ref: 15

BEARING-BALL,83993SH2

€ 66.50

16

92125002
ref: 16

WASHER,SPRING,20MM

€ 8.50

17

920151555
ref: 17

NUT,20MM

€ 9.00

18

131515002
ref: 18

SWITCH,NEUTRAL

€ 22.50

19

132391017
ref: 19
E/NO. 025701-032742

DRUM ASSY,GEAR SHIFT

€ 117.50

19

132391017
ref: 19
E/NO. 032743-

DRUM ASSY,GEAR SHIFT

€ 117.50

20

220B0614
ref: 20
USE WITH 13239-1007

SCREW-PAN HEAD,6X14

€ 2.00

20-1

221B0620
ref: 20-1
USE WITH 13239-1017

SCREW-CNTSNK HD,6X20

€ 0.50

21

464G0600
ref: 21
NOT REQUIRED WITH 13

WASHER-TOOTHED,6MM

€ 2.50

22

13142018
ref: 22
USE WITH 13239-1007

HOLDER,SHIFT DRUM PIN

€ 7.50

22

130911104
ref: 22
USE WITH 13239-1017

HOLDER,CHANGE DRUM PI

€ 16.50

22

130911104
ref: 22
USE WITH 13239-1017

HOLDER,CHANGE DRUM PI

€ 16.50

23

92042030
ref: 23

PIN,GEAR CHNGE DRUM

€ 2.50

24

92042014
ref: 24

PIN-GEAR CHANGE DRUM

€ 0.50

25

131401009
ref: 25

FORK-SHIFT,4TH&TOP

€ 79.00

26

92042021
ref: 26

PIN,DOWEL,8X18

€ 7.00

27

550D3020
ref: 27

PIN-COTTER,3.0X20

€ 2.00

28

131451058
ref: 28

CAM-CHANGE DRUM

€ 15.00

29

610A0406
ref: 29

ROLLER,4X6

€ 2.50

30

480J3000
ref: 30

CIRCLIP-TYPE-C,30MM

€ 3.50

31

92043076
ref: 31

PIN-NEUTRAL PISTON

€ 8.00

32

92081112
ref: 32

SPRING

€ 4.00

33

92001131
ref: 33

BOLT,10MM

€ 14.00

34

92024047
ref: 34

WASHER-LOCK

€ 2.50

35

920011052
ref: 35

BOLT, CHG DRUM POSITN

€ 12.50

36

480J1200
ref: 36

CIRCLIP-TYPE-C,12MM

€ 0.50

37

490475003
ref: 37

ROD-SHIFT

€ 21.50

38

131401008
ref: 38

FORK-SHIFT,LOW,2ND&3R

€ 79.00

39

131401008
ref: 39

FORK-SHIFT,LOW,2ND&3R

€ 79.00

40

92016043
ref: 40
KZ750-B3

NUT,20MM

€ 9.50

40

920151254
ref: 40
KZ750-B4

NUT,20MM

€ 10.50

41

92024044
ref: 41
KZ750-B3

WASHER,CLAW,20.5X36X1

€ 8.00

41-1

922001065
ref: 41-1
KZ750-B4

WASHER

€ 4.50

42

13144063
ref: 42
STD

SPROCKET-OUTPUT,16T

€ 34.00

42

131441009
ref: 42

SPROCKET-OUTPUT,17T(#

€ 29.00

43

92027288
ref: 43

COLLAR,25X32X23.5

€ 22.50

44

92055035
ref: 44

O RING

€ 3.00

45

92050024
ref: 45

OIL SEAL SC325210

€ 5.00

46

131285005
ref: 46
E/NO. 025701-032293

SHAFT,OUTPUT

€ 135.00

46

131281012
ref: 46
E/NO. 032294-

SHAFT,OUTPUT

€ 136.00

47

131291047
ref: 47

2ND GEAR,OUTPUT SHAFT

€ 107.00

48

92024069
ref: 48

WASHER,TOOTHED,30.5X3

€ 3.50

49

480J3000
ref: 49

CIRCLIP-TYPE-C,30MM

€ 3.50

50

131291033
ref: 50

TOP GEAR,OUTPUT SHAFT

€ 59.50

51

131291048
ref: 51

3RD GEAR,OUTPUT SHAFT

€ 100.00

52

131291049
ref: 52

4TH GEAR,OUTPUT SHAFT

€ 107.00

53

131291046
ref: 53

GEAR,OUTPUT LOW,35T

€ 105.00

54

92028180
ref: 54

BUSHING,OUTPUT SFT

€ 21.50

55

600A0500
ref: 55

BALL-STEEL,5/32

€ 0.50
