FRAME/FRAME FITTINGS
KZ750B4 1979 USA CANADA / MPH KPH

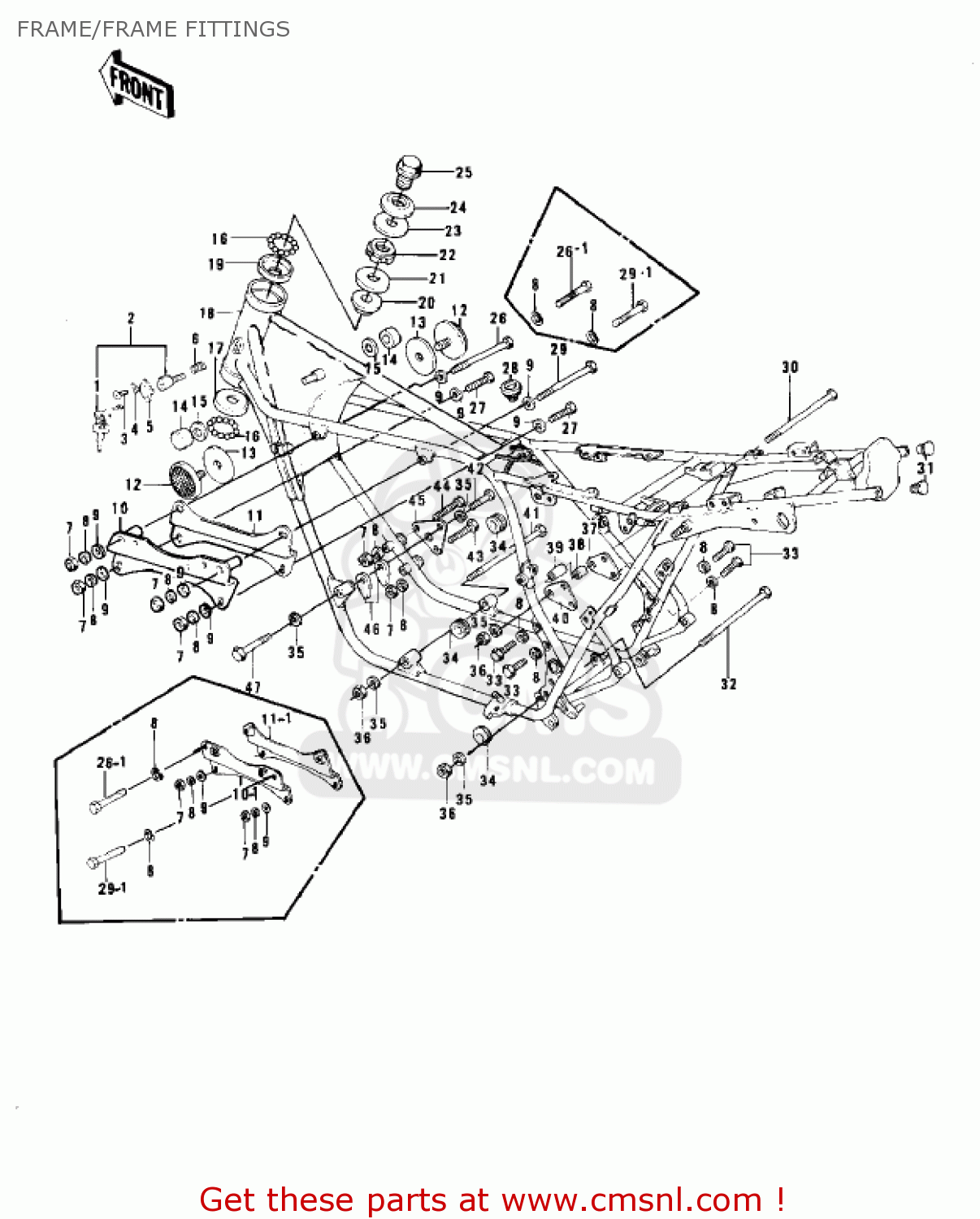

Frame/frame fittings diagram KZ750B4 1979 USA CANADA / MPH KPH
FRAME/FRAME FITTINGS KZ750B4 1979 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
2
270165009
ref: 2
KZ750-B1/B2/B3
LOCK-ASSY,STEERING
€ 97.00
2
270165009
ref: 2
KZ750-B4
LOCK-ASSY,STEERING
€ 97.00
3
92008007
ref: 3
SCREW-TAPPING
€ 2.50
4
92097003
ref: 4
WASHER
€ 2.50
5
110121134
ref: 5
CAP,STEERING LOCK
€ 4.50
6
27032001
ref: 6
SPRING-STEERING LOCK
€ 3.50
7
311B0800
ref: 7
KZ750-B1
NUT,8MM
€ 0.50
7
311B0800
ref: 7
KZ750-B2/B3/B4
NUT,8MM
€ 0.50
8
461F0800
ref: 8
KZ750-B1
WASHER-SPRING,8MM
€ 0.50
8
461F0800
ref: 8
KZ750-B2/B3/B4
WASHER-SPRING,8MM
€ 0.50
9
411B0800
ref: 9
KZ750-B1
WASHER-PLAIN,8MM
€ 0.50
9
411B0800
ref: 9
KZ750-B2/B3/B4
WASHER-PLAIN,8MM
€ 0.50
10
32030061
ref: 10
KZ750-B1
PLATE,ENG HD,L.H
€ 5.50
10-1
32030071
ref: 10-1
KZ750-B2/B3/B4
PLATE, ENGINE HEAD
€ 7.50
11
32030054
ref: 11
KZ750-B1
PLATE,ENG HD,R.H
€ 3.50
11-1
32030070
ref: 11-1
KZ750-B2/B3/B4
PLATE, ENGINE HEAD
€ 7.50
12
28012016
ref: 12
REFLECTOR REFLEX
€ 16.00
13
92094011
ref: 13
DAMPER,REFLECTOR
€ 3.00
14
92075125
ref: 14
DAMPER RUBBER-FL TANK
€ 4.00
15
92022044
ref: 15
WASHER,10.5X26X2.3
€ 2.50
16
600A0800
ref: 16
BALL-STEEL,1/4
€ 0.50
17
92048008
ref: 17
RACE-STRNG STM BRNG
€ 16.00
18
32002121
ref: 18
KZ750-B1/B2
FRAME
€ 1,392.00
18
320021016
ref: 18
KZ750-B3/B4
FRAME
€ 1,438.50
19
92048006
ref: 19
RACE-STRNG BEARIN-STE
€ 11.50
20
92047011
ref: 20
CONE-STRNG STM BRNG
€ 14.50
21
46098016
ref: 21
CAP,STEERING STEM
€ 4.00
22
92090007
ref: 22
NUT-STEERING STEM LCK
€ 8.00
23
46100003
ref: 23
WASHER,WAVE
€ 6.50
24
92022230
ref: 24
WASHER-STEERG STM HD
€ 7.50
25
92007031
ref: 25
BOLT-STEERG STEM HEAD
€ 17.50
26
92003214
ref: 26
KZ750-B1
BOLT
€ 4.50
26-1
110G0859
ref: 26-1
KZ750-B2/B3/B4
BOLT,HEX HEAD,8X59
€ 3.50
27
920011398
ref: 27
BOLT,FLANGED 8X55
€ 2.50
28
92075274
ref: 28
DAMPER,FUEL TANK
€ 4.50
29
92003215
ref: 29
KZ750-B1
BOLT
€ 8.50
29-1
920011182
ref: 29-1
KZ750-B2/B3/B4
BOLT,10X45
€ 6.00
30
92003185
ref: 30
BOLT
€ 9.00
31
32112008
ref: 31
PLUG,22X3
€ 3.00
32
92003186
ref: 32
BOLT
€ 2.50
33
920011577
ref: 33
BOLT,FLANGED,8X35
€ 2.50
34
92071056
ref: 34
GROMMET
€ 2.50
35
461F1000
ref: 35
WASHER-SPRING,10MM
€ 0.50
36
92019021
ref: 36
NUT,LOCK,10M/M
€ 2.00
37
32030049
ref: 37
PLATE,ENG FIT,RR,R.H
€ 8.50
38
92027246
ref: 38
COLLAR
€ 9.00
39
92027245
ref: 39
COLLAR
€ 7.00
40
32030048
ref: 40
KZ750-B1/B2
PLATE,ENG FIT,RR,L.H
€ 6.00
40
131691048
ref: 40
KZ750-B3/B4
PLATE,REAR ENGINE
€ 9.00
41
920011654
ref: 41
BOLT,FLANGED,10X325
€ 17.50
42
920011254
ref: 42
BOLT,HEX HEAD,10X50
€ 2.50
43
110G0859
ref: 43
BOLT,HEX HEAD,8X59
€ 3.50
44
920011583
ref: 44
BOLT,FLANGED,8X70
€ 6.00
45
32030047
ref: 45
PLATE,ENG FIT,FRONT
€ 7.50
46
92016055
ref: 46
NUT
€ 6.00
47
920011618
ref: 47
BOLT,FLANGED,10X70
€ 7.00
