CYLINDER HEAD/COVER
KZ750B4 1979 USA CANADA / MPH KPH

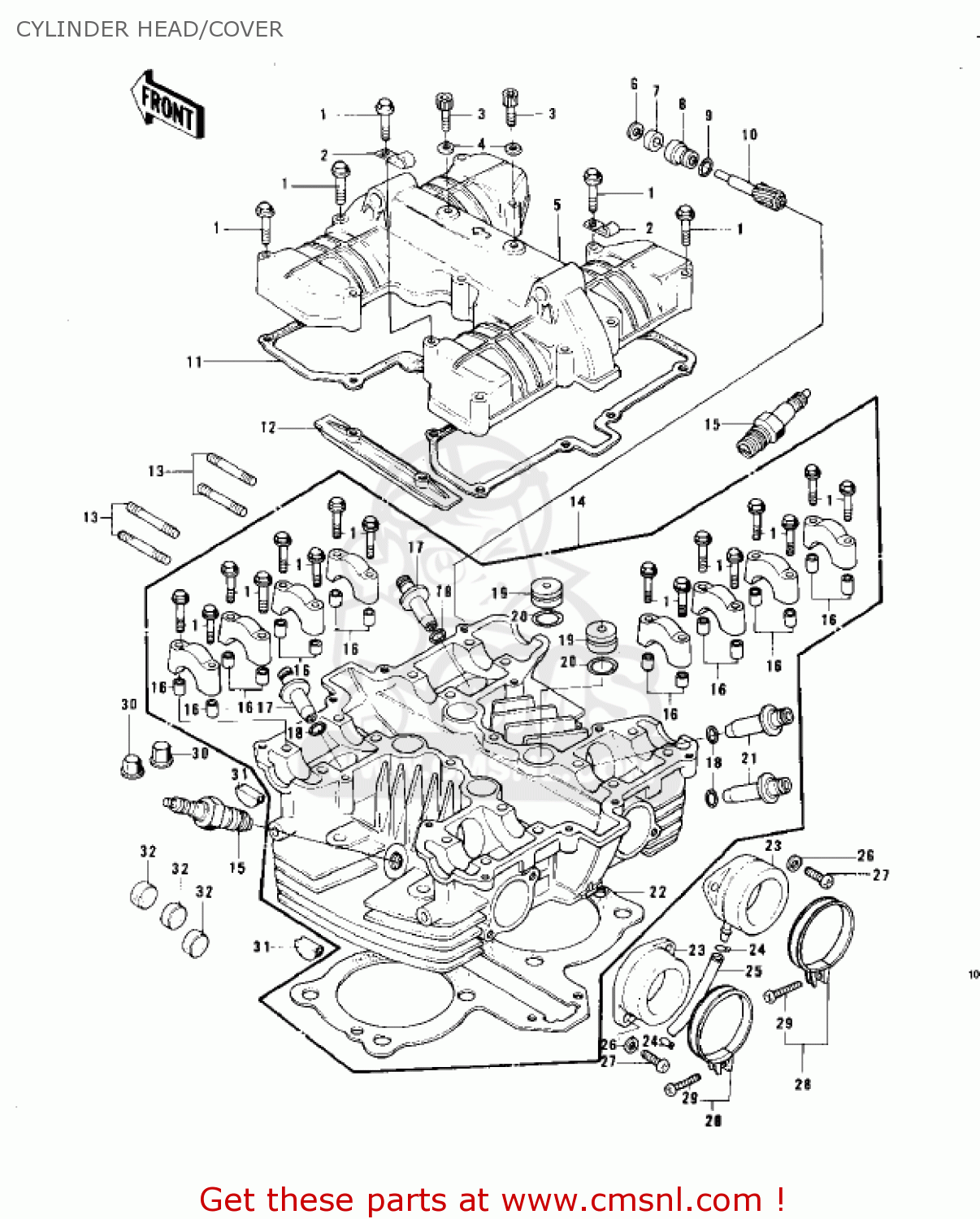

Cylinder head/cover diagram KZ750B4 1979 USA CANADA / MPH KPH
CYLINDER HEAD/COVER KZ750B4 1979 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
92003092
ref: 1
BOLT-HEX HEAD,6X45
€ 4.50
2
21126008
ref: 2
CLAMP,WIRING HARNESS
€ 3.00
3
120P0614
ref: 3
BOLT,6X14
€ 3.00
4
92065096
ref: 4
GASKET,FUEL COCK (NAS)
€ 3.00
5
110220082H
ref: 5
COVER,CYLINDER HEAD
€ 99.50
6
92065103
ref: 6
GASKET,TACHOMETER GER (NAS)
€ 2.50
7
92050075
ref: 7
OIL SEAL,TACHOMETER
€ 7.50
8
92087009
ref: 8
GUIDE,TACHO GEAR
€ 8.50
9
670B1510
ref: 9
O RING,9.8X1.9
€ 2.50
10
13223013
ref: 10
KZ750-B1
GEAR, TACHOMETER
€ 39.50
10
13223013
ref: 10
KZ750-B2/B3/B4
GEAR, TACHOMETER
€ 39.50
11
11023008
ref: 11
GASKET,CYL HEAD COVER (MCA)
€ 51.50
12
12053016
ref: 12
SLIPPER,CAM CHAIN
€ 33.00
13
92004058
ref: 13
STUD,8MM
€ 3.50
14
110025010
ref: 14
CYLINDER HEAD ASSY
€ 807.50
15
B8ESA
ref: 15
KZ750-B1/B2
NGK SPARK-PLUG B8ES
€ 3.00
15
B6ESA
ref: 15
KZ750-B3/B4
SPARK PLUG,B6ES
€ 2.50
16
92042007
ref: 16
PIN-DOWEL
€ 4.00
17
12013011
ref: 17
KZ750-B1/B2
GUIDE-VALVE,EXHAUST
€ 22.50
17
12013011
ref: 17
KZ750-B3/B4
GUIDE-VALVE,EXHAUST
€ 22.50
18
92055065
ref: 18
RING-O,VALVE GUIDE
€ 4.50
19
92066052
ref: 19
PLUG,CYLINDER HEAD
€ 6.00
20
92055095
ref: 20
RING-O
€ 9.50
21
12013007
ref: 21
GUIDE,INLET VALVE
€ 15.00
22
110041055
ref: 22
GASKET CYLINDER HEAD (MCA)
€ 62.50
23
16065036
ref: 23
HOLDER,CARBURETOR
€ 37.50
24
92037072
ref: 24
CLAMP,TUBE
€ 4.00
25
92059122
ref: 25
TUBE,BALANCER
€ 8.00
26
411B0600
ref: 26
WASHER-PLAIN,6MM
€ 0.50
27
220B0618
ref: 27
SCREW-PAN HEAD,6X18
€ 2.50
28
92037171
ref: 28
CLAMP
€ 9.00
29
220B0535
ref: 29
SCREW-PAN-CROS
€ 2.00
30
92015076
ref: 30
NUT,FLANGED CAP,10MM
€ 9.00
31
92066047
ref: 31
PLUG,CAMSHAFT,13.75X9
€ 10.50
32
92075109
ref: 32
DAMPER,CYLINDER HEAD/
€ 2.00
