HANDLEBAR
KZ750B4 1979 USA CANADA / MPH KPH

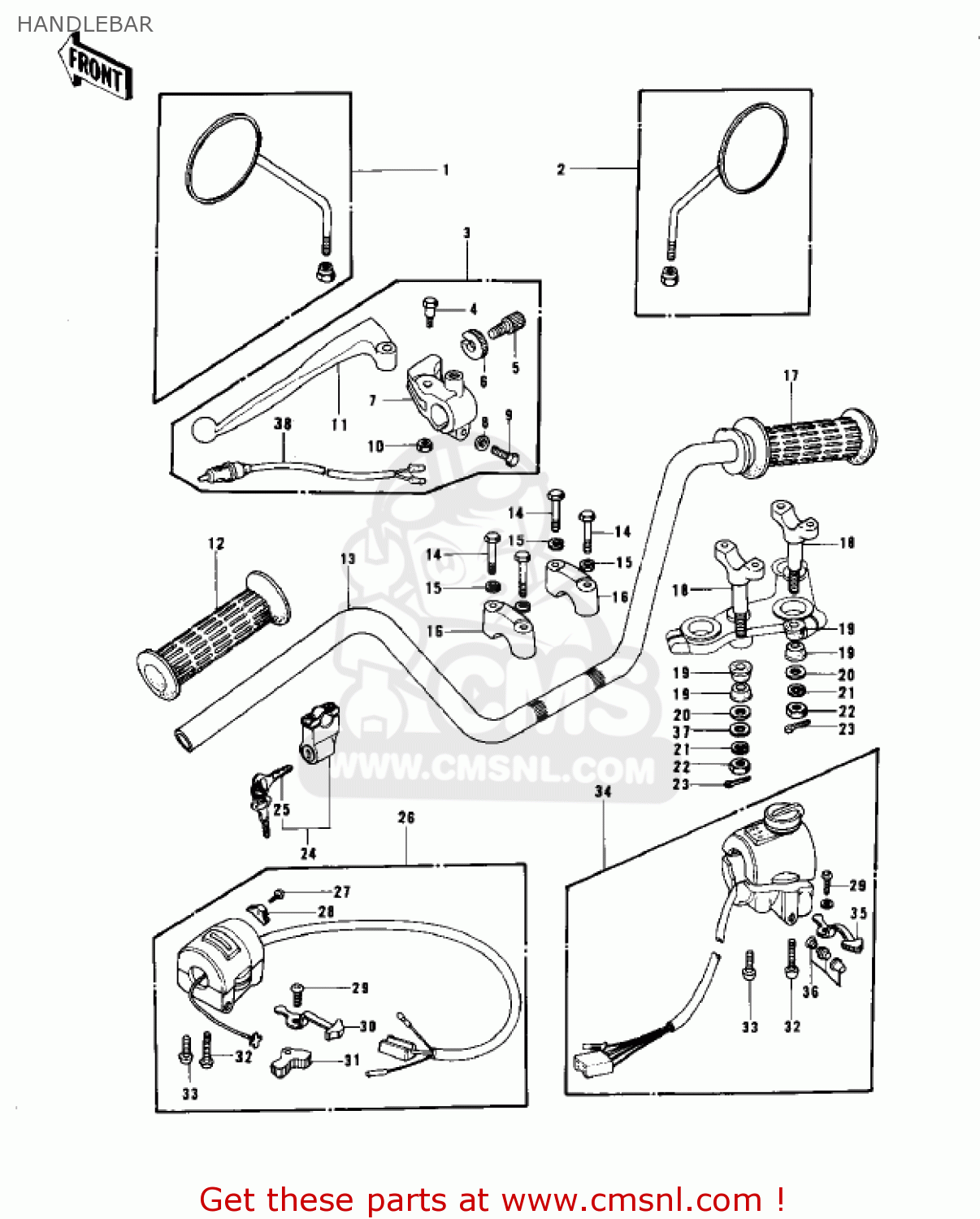

Handlebar diagram KZ750B4 1979 USA CANADA / MPH KPH
HANDLEBAR KZ750B4 1979 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
56003019
ref: 1
MIRROR-ASSY,LH
€ 51.00
2
56002029
ref: 2
MIRROR-ASSY,RH
€ 49.00
3
46076049
ref: 3
KZ750-B1
LEVER ASSY,CLUTCH
€ 101.00
3
46076054
ref: 3
KZ750-B2/B3/B4
LEVER-ASSY-GRIP,CLUTC
€ 101.00
4
92007047
ref: 4
BOLT,HEX HEAD
€ 6.50
5
46055003
ref: 5
SCREW-CABLE ADJUST
€ 11.50
6
46056005
ref: 6
KZ750-B1
NUT-LOCK
€ 6.00
6
46056007
ref: 6
KZ750-B2/B3/B4
NUT,CABLE ADJUST LOCK
€ 9.00
7
46094017
ref: 7
KZ750-B1
HOLDER,CLUTCH LEVER
€ 23.00
7
46094019
ref: 7
KZ750-B2/B3/B4
HOLDER,CLUTCH LEVER
€ 55.00
8
411B0600
ref: 8
KZ750-B1
WASHER-PLAIN,6MM
€ 0.50
8
410B0600
ref: 8
KZ750-B2/B3/B4
WASHER-PLAIN-SMALL,6M
€ 0.50
9
112B0622
ref: 9
KZ750-B1
BOLT, 6X22
€ 2.50
9
112G0625
ref: 9
KZ750-B2/B3/B4
BOLT-UPSET,6X25
€ 4.00
10
92017014
ref: 10
NUT,LOCK,6MM
€ 4.00
11
46092023
ref: 11
LEVER-GRIP,CLUTCH
€ 17.00
12
46075028
ref: 12
GRIP,LH
€ 32.00
13
46003036
ref: 13
HANDLEBAR
€ 348.00
14
920011405
ref: 14
BOLT,8X38
€ 10.00
15
461F0800
ref: 15
WASHER-SPRING,8MM
€ 0.50
16
46012008
ref: 16
HOLDER-HANDLE,UPP
€ 23.00
17
46019038
ref: 17
GRIP-ASSY,THROTTLE
€ 80.50
18
46012010
ref: 18
HOLDER-HANDLE,LWR
€ 20.00
19
92075275
ref: 19
DAMPER,HANDLE
€ 6.00
20
92022196
ref: 20
WASHER,10.5X30X2
€ 2.00
21
461F1000
ref: 21
WASHER-SPRING,10MM
€ 0.50
22
314B1000
ref: 22
KZ750-B1
NUT,10MM
€ 0.50
22
315B1000
ref: 22
KZ750-B2/B3/B4
NUT,10MM
€ 0.50
23
554A0800
ref: 23
PIN-SNAP,8MM
€ 1.00
24
27039001
ref: 24
KZ750-B1/B2/B3
LOCK,HELMET
€ 29.50
26
460911079
ref: 26
HOUSING-ASSY-CONTROL,
€ 129.50
27
221B0308A
ref: 27
SCREW-CNTSNK HD,3X8
€ 2.50
28
46044013
ref: 28
KNOB,LIGHTING SWITCH,
€ 8.00
29
220B0305A
ref: 29
NOT USED 46091-1039/
SCREW-PAN HEAD,3X5
€ 1.00
30
46043005
ref: 30
KNOB-LIGHTING SW L.H
€ 6.50
31
46028006
ref: 31
BUTTON,HORN PUSH
€ 6.50
32
220B0535
ref: 32
KZ750-B1/B2/B3
SCREW-PAN-CROS
€ 2.00
32
220B0540
ref: 32
KZ750-B4
SCREW-PAN-CROS
€ 2.00
33
220B0530
ref: 33
SCREW-PAN-CROS
€ 2.00
34
460911033
ref: 34
KZ750-B1/B2/B3
HOUSING ASSY,R.H
€ 128.50
34
460911033
ref: 34
KZ750-B1/B2/B3
HOUSING ASSY,R.H
€ 128.50
34
460911039
ref: 34
KZ750-B1/B2/B3
CASE ASSY, R.H.
€ 101.00
34
460911039
ref: 34
CASE ASSY, R.H.
€ 101.00
34
460911078
ref: 34
KZ750-B4
CONTROLLER HOUSING ASSEMBLY,RH
€ 104.00
35
46043004
ref: 35
NOT USED 46091-1039/
KNOB-LIGHTING SW R.H
€ 3.00
36
270101009
ref: 36
SWITCH ASSY,HORN BUTN
€ 5.50
37
92022239
ref: 37
KZ750-B2/B3/B4
WASHER-PLAIN
€ 2.50
38
27043002
ref: 38
KZ750-B2/B3/B4
SWITCH,CLUTCH
€ 21.00
