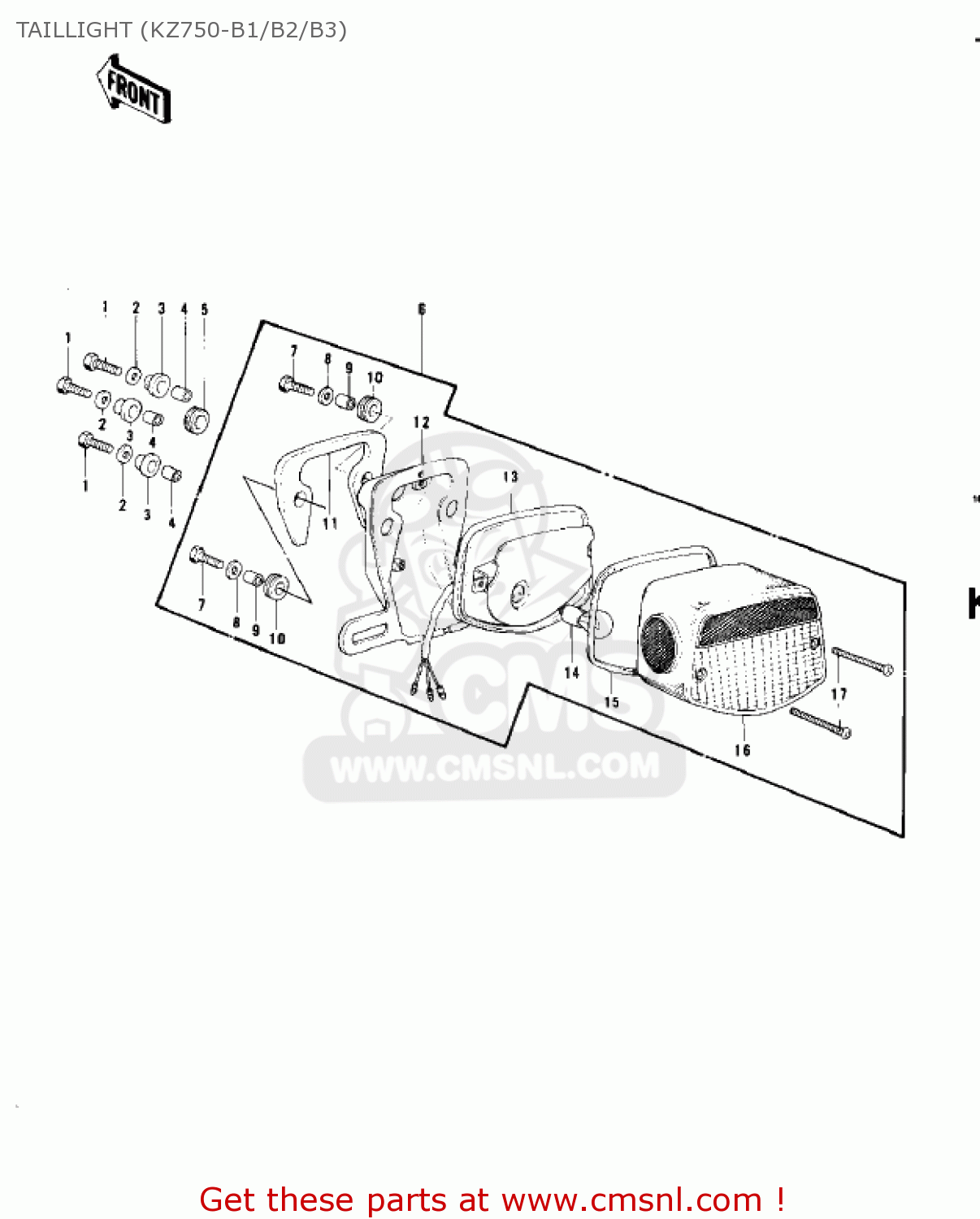

TAILLIGHT (KZ750-B1/B2/B3)

KZ750B2 1977 USA CANADA / MPH KPH

Taillight (kz750-b1/b2/b3) diagram KZ750B2 1977 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

112G0620
ref: 1

BOLT 6X20

€ 1.00

92022125
ref: 2

WASHER,6.5X20X1.6

€ 1.00

92075112
ref: 3

DAMPER RUBBER

€ 2.50

92027120
ref: 4

COLLAR

€ 3.00

92071059
ref: 5

GROMMET

€ 2.50

23024066
ref: 6

TAIL LAMP ASSEMBLY

€ 320.00

112B0622
ref: 7

BOLT, 6X22

€ 2.50

92022125
ref: 8

WASHER,6.5X20X1.6

€ 1.00

92027129
ref: 9

COLLAR,6.8X10X8.5

€ 3.00

23066020
ref: 10

DAMPER

€ 10.00

23066019
ref: 11

DAMPER RUBBER,L.B

€ 9.00

23036045
ref: 12

LICENSE PLATE BRACKET

€ 233.50

23027041
ref: 13

BODY-COMP-TAIL LAMP

€ 96.00

92069059
ref: 14

BULB,12V 32/3CP

€ 5.50

23028021
ref: 15

GASKET,TAIL LAMP LENS (NAS)

€ 8.00

23026034
ref: 16

LENS,TAIL LAMP

€ 64.50

220R0460
ref: 17

SCREW-PAN-CROS

€ 3.00

TAILLIGHT (KZ750-B1/B2/B3)

all assemblies
