CARBURETORS (KZ750-B4)
KZ750B2 1977 USA CANADA / MPH KPH

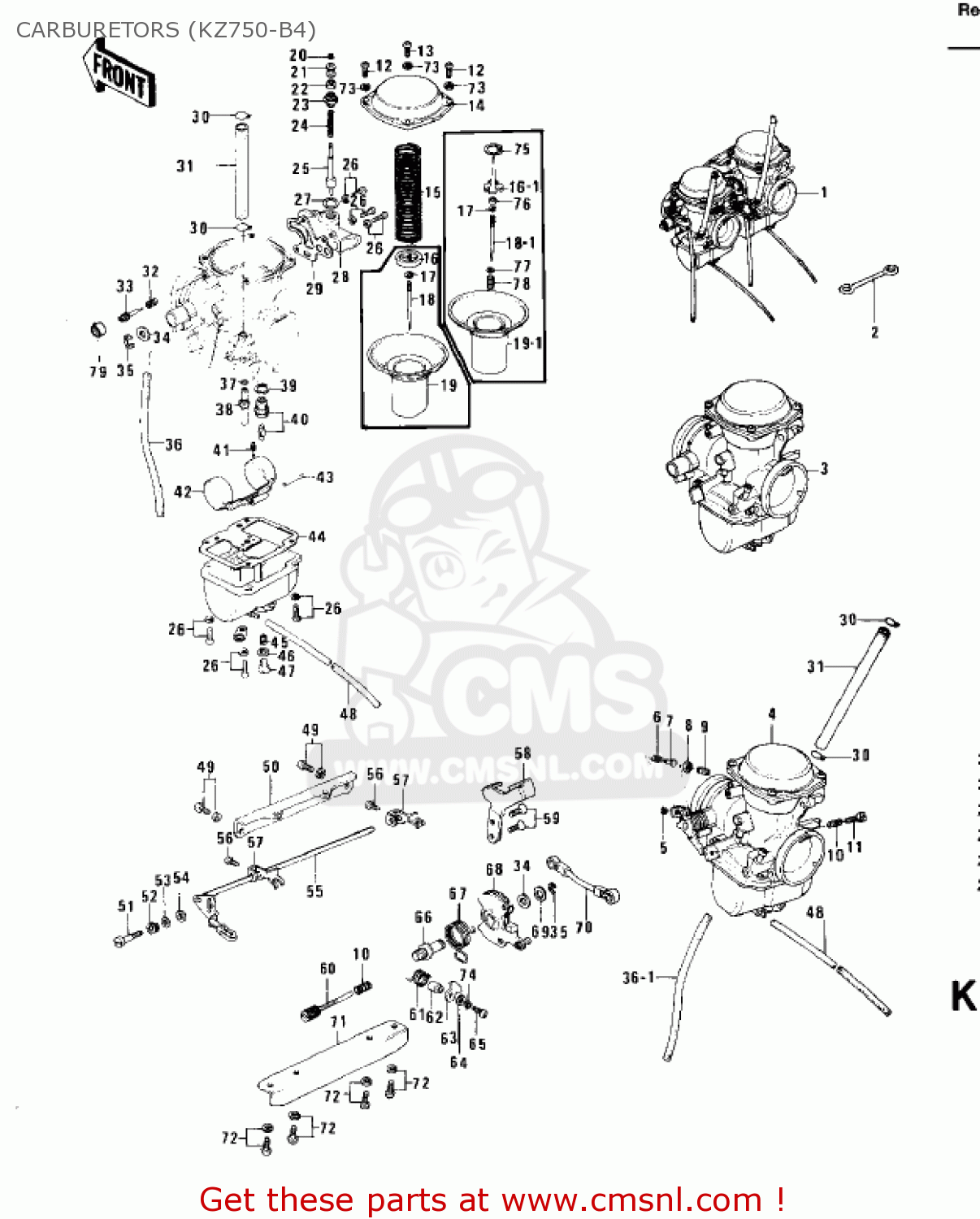

Carburetors (kz750-b4) diagram KZ750B2 1977 USA CANADA / MPH KPH
CARBURETORS (KZ750-B4) KZ750B2 1977 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
16001249
ref: 1
CARBURETOR ASSY
€ 892.50
1
160011019
ref: 1
CARBURETOR ASSEMBLY
€ 688.50
2
92037134
ref: 2
CLAMP,OVER FLOW PIPE
€ 7.50
3
16001284
ref: 3
CARBURETOR,L.H
€ 344.50
3
160011105
ref: 3
CARBURETOR,LH
€ 310.50
4
16001285
ref: 4
CARBURETOR,R.H
€ 344.50
4
160011104
ref: 4
CARBURETOR,RH
€ 241.00
5
16008017
ref: 5
CIRCLIP
€ 1.00
6
16040019
ref: 6
SPRING,LEVER
€ 2.50
7
16042008
ref: 7
PIN
€ 2.50
8
312B0500
ref: 8
NUT-HEX,5MM
€ 0.50
9
16033025
ref: 9
SCREW,LEVER
€ 2.00
10
16022010
ref: 10
SPRING,THROTTLE ADJST
€ 4.50
11
16021020
ref: 11
SCREW-THROTTLE STOP
€ 13.00
12
220B0514
ref: 12
ACREW-PAN HEAD,5X14
€ 2.50
13
214B0516A
ref: 13
UNAVAILABLE IN PRICE BOOK
€ 0.50
14
16069003
ref: 14
COVER,DIAPHRAGM
€ 9.50
14
140301003
ref: 14
DIAPHRAGM COVER
€ 9.50
15
16006030
ref: 15
SPRING,DIAPHRAGM
€ 10.00
15
920811080
ref: 15
DIAPHRAGM SPRING
€ 10.00
16
16055010
ref: 16
PLATE,NEEDLE
€ 7.00
16-1
130911026
ref: 16-1
HOLDER,JET NEEDLE
€ 9.00
17
16008014
ref: 17
CLAMP,E-TYPE
€ 5.50
18
16009070
ref: 18
JET NEEDLE
€ 14.50
18-1
160091016
ref: 18-1
JET,NEEDLE,4HL12-3
€ 8.50
19
16059004
ref: 19
DIAPHRAGM
€ 151.50
19-1
160281001
ref: 19-1
DIAPHRAGM
€ 74.50
20
16076003
ref: 20
CLAMP
€ 4.50
21
16073014
ref: 21
COLLAR,STARTER PLUNGE
€ 5.50
22
16036017
ref: 22
BOOT,STARTER PLUNGER
€ 8.00
23
16012020
ref: 23
CAP,STARTER PLUNGER
€ 11.50
24
16013008
ref: 24
SPRING-STARTER PLUNG
€ 4.50
25
16016019
ref: 25
PLUNGER,STARTER
€ 22.00
26
16033027
ref: 26
SCREW,FLOAT CHAMBER
€ 3.00
27
16039041
ref: 27
WASHER,PLAIN
€ 4.00
28
16029018
ref: 28
UNAVAILABLE IN PRICE BOOK
€ 0.00
28
160121004
ref: 28
STARTER BODY
€ 20.50
29
16029011
ref: 29
GASKET (MCA)
€ 10.00
30
92037072
ref: 30
CLAMP,TUBE
€ 4.00
31
92059130
ref: 31
PIPE,FUEL
€ 15.50
32
16022007
ref: 32
SPRING-THR STOP SCREW
€ 5.50
33
16014016
ref: 33
SCREW,PILOT AIR
€ 2.50
33
160141008
ref: 33
PILOT ADJUSTING SCREW
€ 12.50
34
16039032
ref: 34
WASHER
€ 2.50
35
16008015
ref: 35
CIRCLIP
€ 2.00
36
92059085
ref: 36
PIPE-OVER FLOW
€ 8.50
36-1
920591064
ref: 36-1
BREATHER HOSE,4.5X550
€ 17.00
37
16038021
ref: 37
GASKET,NEEDLE JET
€ 4.00
38
16017091
ref: 38
NEEDLE JET
€ 26.00
38
160171023
ref: 38
JET,NEEDLE,#Z-2
€ 18.50
39
110091076
ref: 39
GASKET,FLOAT VALVE (NAS)
€ 2.00
40
16030026
ref: 40
VALVE-FLOAT
€ 47.00
41
92064045
ref: 41
JET-PILOT,#45
€ 13.00
41
920641021
ref: 41
JET,PILOT,#A30
€ 7.00
42
16031030
ref: 42
FLOAT
€ 36.00
43
16032003
ref: 43
FLOAT PIN
€ 4.00
44
16019029
ref: 44
GASKET,FLOAT CHAMBER (NAS)
€ 15.50
45
92063143
ref: 45
STD
MAIN JET,#125
€ 6.00
45
92063141
ref: 45
MAIN JET,#115
€ 6.00
45
92063142
ref: 45
MAIN JET,#120
€ 3.00
45
92063147
ref: 45
MAIN JET,#130
€ 7.00
45
92063148
ref: 45
MAIN JET,#135
€ 7.50
46
16039036
ref: 46
WASHER,PLAIN
€ 3.00
47
16033022
ref: 47
SCREW,PLUG
€ 4.50
48
92059127
ref: 48
HOSE,FUEL OVERFLOW
€ 7.00
49
16033028
ref: 49
SCREW,5X10
€ 1.00
50
16041014
ref: 50
SHAFT
€ 3.50
51
16046005
ref: 51
SCREW
€ 4.50
52
16040009
ref: 52
SPRING,F
€ 6.50
53
16039033
ref: 53
WASHER
€ 1.50
54
16039019
ref: 54
WASHER-PLAIN
€ 3.00
55
160411003
ref: 55
SHAFT,CHOKE LEVER
€ 14.00
55
160411003
ref: 55
SHAFT,CHOKE LEVER
€ 14.00
56
220B0508
ref: 56
SCREW-PAN-CROS,5X8
€ 0.50
57
920371093
ref: 57
LEVER,CHOKE ADJUST
€ 10.50
57
920371093
ref: 57
LEVER,CHOKE ADJUST
€ 10.50
58
16070004
ref: 58
BRACKET
€ 11.50
59
16033024
ref: 59
SCREW,5X8
€ 3.50
60
16021027
ref: 60
THROTTLE ADJUSTER
€ 8.50
61
16040018
ref: 61
SPRING
€ 2.50
62
16073012
ref: 62
COLLAR
€ 2.50
63
16063010
ref: 63
LEVER
€ 3.00
64
16039038
ref: 64
WASHER,PLAIN
€ 3.00
65
220E0420A
ref: 65
SCREW-PAN HEAD,4X20
€ 2.50
66
16041015
ref: 66
SHAFT
€ 7.00
67
16040017
ref: 67
SPRING,THROT CABL PUL
€ 3.00
68
16074004
ref: 68
PULLY,THROTTLE CABLE
€ 30.50
69
16039037
ref: 69
WASHER,PLAIN
€ 1.50
70
16046008
ref: 70
JOINT
€ 18.00
71
16055011
ref: 71
PLATE
€ 6.50
72
16033026
ref: 72
SCREW
€ 2.00
73
461F0500
ref: 73
WASHER-SPRING,5MM
€ 0.50
74
461F0400
ref: 74
WASHER-SPRING,4MM
€ 0.50
75
920331009
ref: 75
RING-SNAP
€ 4.50
76
920271115
ref: 76
RING,JET NEEDLE
€ 3.50
77
920221123
ref: 77
WASHER,JET NEEDLE
€ 5.50
78
920811126
ref: 78
SPRING,JET NEEDLE
€ 4.00
79
110121046
ref: 79
LIMITER CAP
€ 3.50
