CRANKCASE/BREATHER COVER/OIL PAN

KZ750B2 1977 USA CANADA / MPH KPH

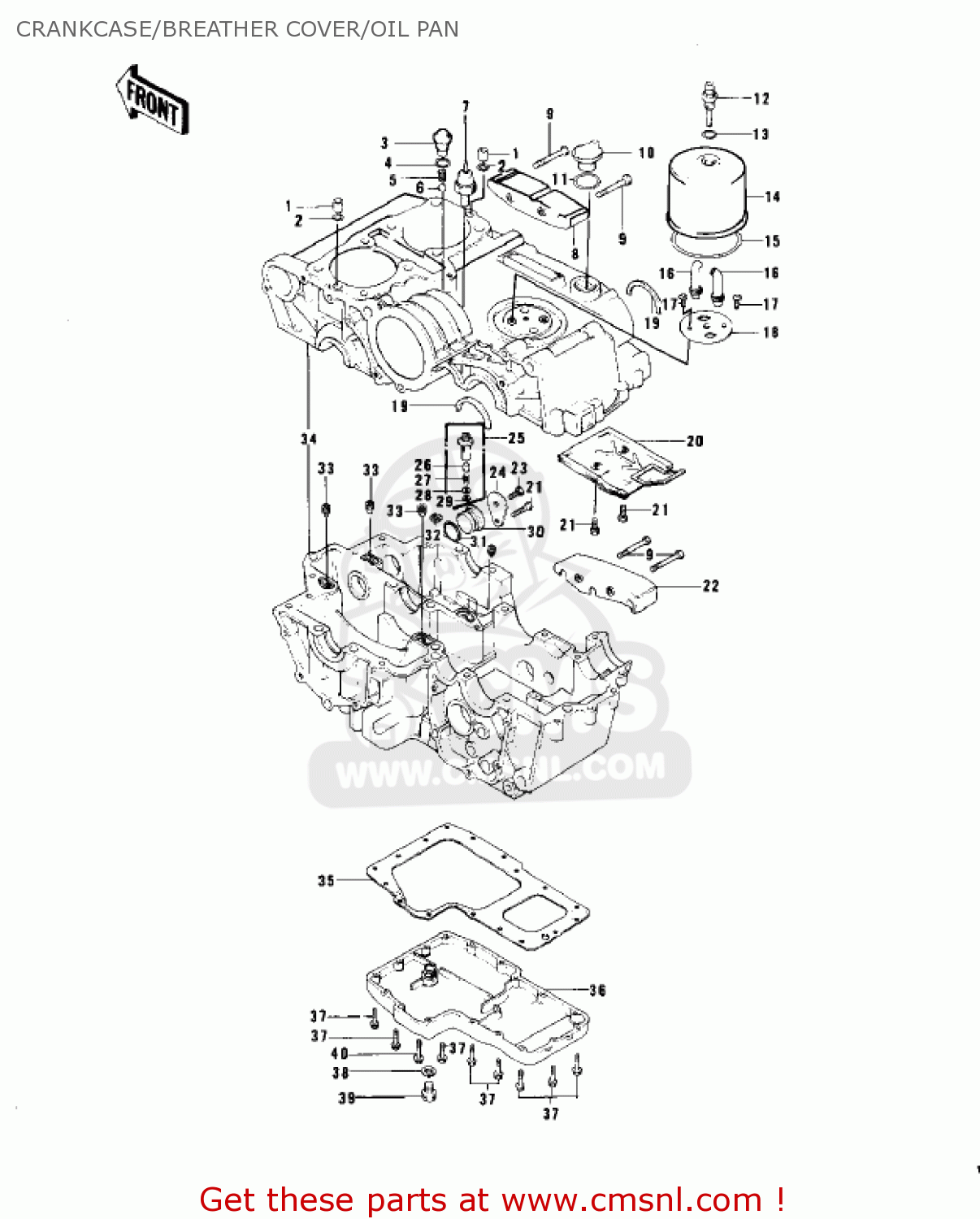

Crankcase/breather cover/oil pan diagram KZ750B2 1977 USA CANADA / MPH KPH

CRANKCASE/BREATHER COVER/OIL PAN KZ750B2 1977 USA CANADA / MPH KPH
CRANKCASE/BREATHER COVER/OIL PAN KZ750B2 1977 USA CANADA / MPH KPH
CRANKCASE/BREATHER COVER/OIL PAN KZ750B2 1977 USA CANADA / MPH KPH
prices are in EUR
ref
part #
description
quantity
1
920431266
ref: 1
PIN,11X14X12.3
920431266
€ 1.00
2
92055093
ref: 2
RING-O
92055093
€ 8.00
3
92066050
ref: 3
PLUG,FILTER COVER
92066050
€ 3.50
4
670B2018
ref: 4
O RING,18MM
670B2018
€ 1.00
5
92081109
ref: 5
SPRING
92081109
€ 7.50
6
600A1200
ref: 6
BALL-STEEL,3/8
600A1200
€ 0.50
7
270101157
ref: 7
KZ750-B1/B2/B3
SWITCH,OIL PRESSURE
270101157
€ 27.50
7
270101157
ref: 7
KZ750-B4
SWITCH,OIL PRESSURE
270101157
€ 27.50
8
12053020
ref: 8
SLIPPER,PRIMARY CHAIN
12053020
€ 37.50
9
920011577
ref: 9
BOLT,FLANGED,8X35
920011577
€ 2.50
10
16115013
ref: 10
PLUG-OIL FILLER
16115013
€ 13.50
11
92055049
ref: 11
'0'RING,31MM
92055049
€ 2.50
12
92003098
ref: 12
BOLT-BREATHER FITTING
92003098
€ 35.50
13
670B2016
ref: 13
O RING,16MM
670B2016
€ 1.00
14
14070003
ref: 14
KZ750-B1
BODY-BREATHER
€ 23.00
14
14070007
ref: 14
KZ750-B2/B3/B4
BODY, BREATHER
14070007
€ 31.50
15
92055052
ref: 15
RING-O,91.6X3.4
92055052
€ 6.00
16
92059118
ref: 16
KZ750-B1
PIPE,BREATHER PLATE
92059118
€ 7.00
16
92059140
ref: 16
KZ750-B2/B3/B4
TUBE, BREATHER
92059140
€ 4.50
17
220B0618
ref: 17
SCREW-PAN HEAD,6X18
220B0618
€ 2.50
18
14068007
ref: 18
PLATE,BREATHER
14068007
€ 6.50
19
14013004
ref: 19
RING-BEARING SETTING
14013004
€ 7.00
20
14068008
ref: 20
PLATE,BREATHER
14068008
€ 15.00
21
112B0614
ref: 21
BOLT-UPSET 6X14
112B0614
€ 2.50
22
12053021
ref: 22
SLIPPER,PRIMARY CHAIN
€ 37.50
23
110B0608
ref: 23
BOLT-HEX HEAD,6X8
€ 0.50
24
92026115
ref: 24
SPACER
€ 1.50
25
161301001
ref: 25
KZ750-B1/B2
VALVE-ASSY-RELIEF
161301001
€ 28.50
25
161301001
ref: 25
KZ750-B3/B4
VALVE-ASSY-RELIEF
161301001
€ 28.50
26
16126002
ref: 26
USE WITH 16130-003
PISTON,RELEAF VALVE
€ 7.00
27
16133003
ref: 27
USE WITH 16130-003
SPRING,RELEAF VALVE
€ 1.50
28
92026097
ref: 28
USE WITH 16130-003
SPACER,RELEAF VALVE
€ 1.00
29
481J1200
ref: 29
CIRCLIP,12MM
€ 1.00
30
92066049
ref: 30
PLUG
92066049
€ 7.50
31
670B3030
ref: 31
O RING,30MM
670B3030
€ 3.00
32
92055048
ref: 32
RING-O,OD=18
92055048
€ 3.00
33
92013007
ref: 33
SCREW,SLOTTED
€ 2.50
34
140015092
ref: 34
SET-CRANKCASE
€ 1,923.00
35
16112004
ref: 35
GASKET,OIL PAN (MCA)
16112004
€ 28.50
36
16110004
ref: 36
PAN,OIL
€ 88.50
37
130G0625
ref: 37
BOLT,FLANGED,6X25
130G0625
€ 0.50
38
92065097
ref: 38
GASKET,DRAIN PLUG BOL (NAS)
92065097
€ 1.00
39
920661174
ref: 39
PLUG,OIL DRAIN,12X15
920661174
€ 4.00
40
92003159
ref: 40
BOLT,HEX HEAD,6X34
92003159
€ 2.50
