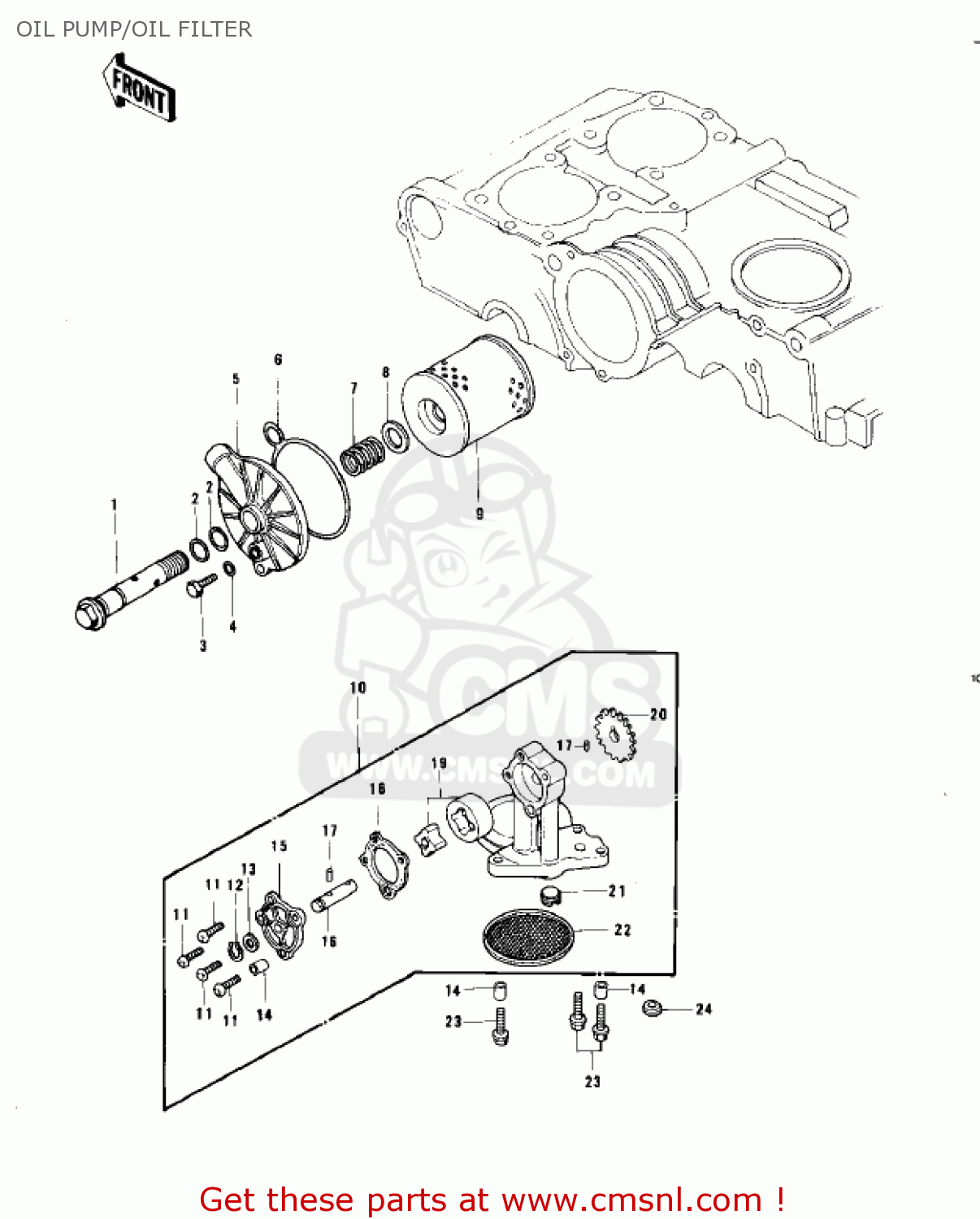

OIL PUMP/OIL FILTER

ref

part #

description

quantity

1

92003189
ref: 1

BOLT,OIL FILTER

€ 58.50

2

670B2016
ref: 2

O RING,16MM

€ 1.00

3

92066024
ref: 3

PLUG,30X8

€ 8.00

4

670B1508
ref: 4

O RING,8MM

€ 1.00

5

16146002
ref: 5

COVER,OIL FILTER

€ 19.50

6

92055084
ref: 6

RING-O

€ 15.50

7

920811018
ref: 7

SPRING,OIL FILTER

€ 3.00

8

920221012
ref: 8

WASHER,20.5X30X1

€ 3.00

9

16099002
ref: 9

ELEMENT-OIL FILTER

€ 13.00

10

16082062
ref: 10

OIL PUMP ASSY

€ 227.00

11

220B0625
ref: 11

SCREW-PAN HEAD,6X25

€ 1.50

12

480J1100
ref: 12

CIRCLIP-TYPE-C,11MM

€ 0.50

13

92022311
ref: 13

WASHER,PLAIN

€ 2.50

14

920431302
ref: 14

PIN,DOWEL,8X10

€ 1.00

15

16142004
ref: 15

COVER,OIL PUMP

€ 22.00

16

16086004
ref: 16

SHAFT,OIL PUMP

€ 17.00

17

92042041
ref: 17

PIN,DOWEL

€ 4.50

18

16145003
ref: 18

GASKET,OIL PUMP (MCA)

€ 2.50

19

16154003
ref: 19

ROTOR-PUMP

€ 47.50

20

16085024
ref: 20

GEAR,OIL PUMP

€ 37.50

21

92013008
ref: 21

SCREW,SLOTTED

€ 2.00

22

16111004
ref: 22

FILTER,OIL PUMP

€ 23.50

23

92003109
ref: 23

BOLT-HEX HEAD,6X41

€ 5.50

24

92055048
ref: 24

RING-O,OD=18

€ 3.00
