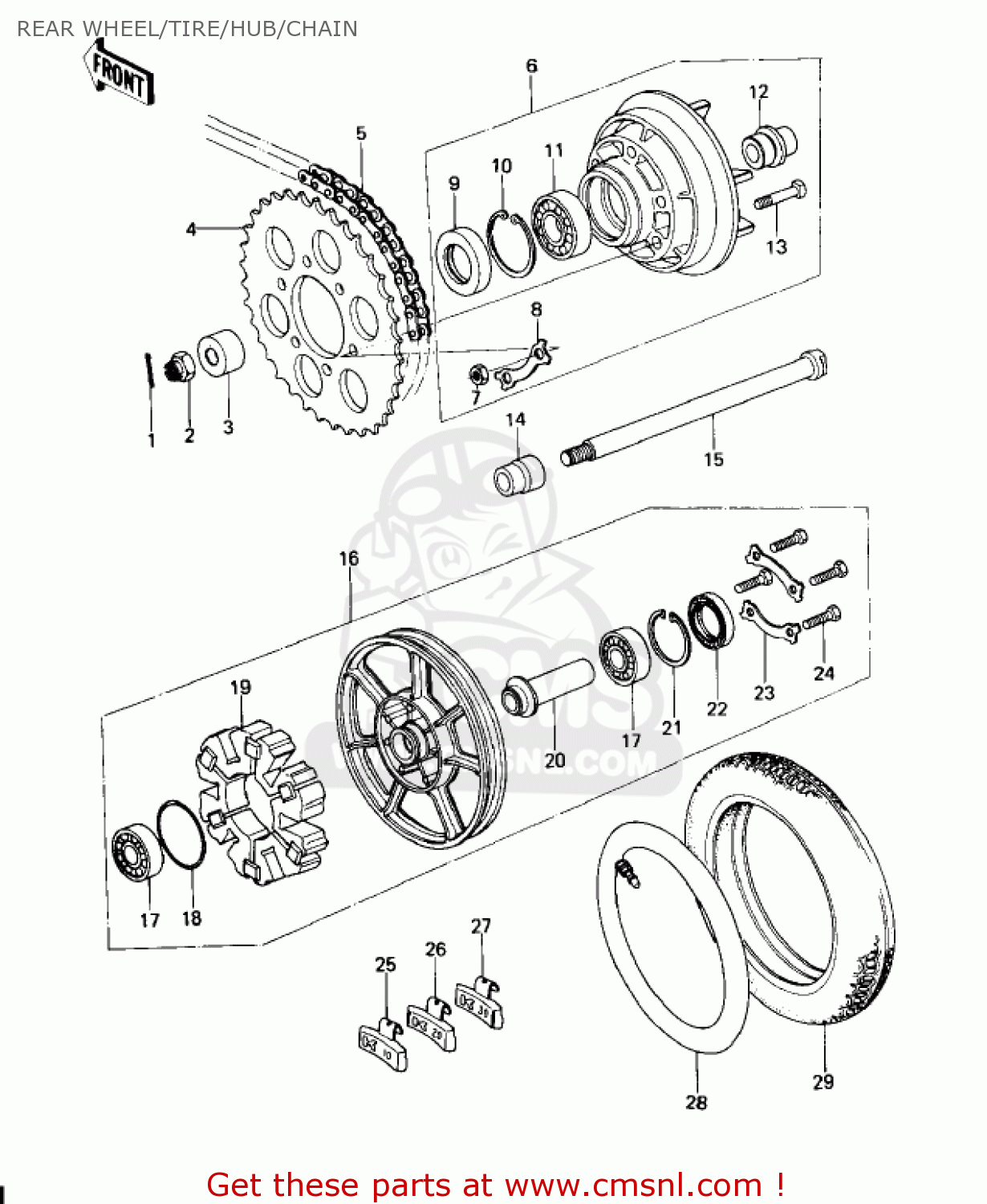

REAR WHEEL/TIRE/HUB/CHAIN

ref

part #

description

quantity

1

550D4035
ref: 1

PIN-COTTER,4.0X35

€ 1.00

2

92015055
ref: 2

NUT,16MM

€ 8.00

3

920271023
ref: 3

COLLAR,REAR AXLE,22MM

€ 26.00

4

420411100
ref: 4
KZ650-D1/D1A

SPROCKET-HUB,40T,BLAC

€ 43.00

4

420411100
ref: 4
KZ650-D2

SPROCKET-HUB,40T,BLAC

€ 43.00

4

420411024
ref: 4
KZ650-D2

REAR SPROCKET,41T

€ 79.00

5

920571232
ref: 5

CHAIN,DRIVE,EK50MV-OX

€ 167.50

6

420331004
ref: 6

COUPLING ASSY,REAR

€ 121.50

7

42045005
ref: 7

NUT,10MM

€ 5.00

8

92068007
ref: 8

PLUG

€ 1.00

9

92050027
ref: 9

OIL SEAL

€ 13.50

10

920331044
ref: 10

CIRCLIP 62 M/M

€ 7.50

11

601B6206
ref: 11

BEARING-BALL,#6206C3

€ 19.50

12

420361013
ref: 12

SLEEVE,REAR HUB COUPL

€ 35.50

13

92003087
ref: 13

BOLT-RR SPRCKT 10X49

€ 4.00

14

41069032
ref: 14

COLLAR,FRONT AXLE

€ 13.50

15

410681086
ref: 15

AXLE,RR

€ 49.00

16

410731011
ref: 16

SOLID WHEEL ASSEMBLY,REAR

€ 364.50

17

601B6303ZZ
ref: 17

BEARING-BALL,#6303ZZC

€ 32.50

18

671B2565
ref: 18

O RING,65MM

€ 6.00

19

42014033
ref: 19

DAMPER,RR HUB SHOCK,1

€ 85.50

20

920271047
ref: 20

COLLAR,REAR HUB BRG

€ 14.00

21

920331042
ref: 21

CIRCLIP,47M/M

€ 4.00

22

920491319
ref: 22

SEAL, OIL, FORK OUTER

€ 10.00

23

92088023
ref: 23

WASHER,LOCK

€ 6.00

24

92001160
ref: 24

BOLT

€ 1.50

25

410751011
ref: 25

BALANCER WHEEL 10G

€ 7.50

26

410751012
ref: 26

BALANCER WHEEL 20G

€ 7.50

27

410751013
ref: 27

BALANCER WHEEL 30G

€ 7.50

28

410221003
ref: 28

TUBE,510-16

€ 18.50

29

410021020
ref: 29
DUNLOP K87

TIRE,510-16 K87 R

€ 155.00

all assemblies
