CRANKCASE BOLT & STUD PATTERN
KZ650D2 SR 1979 USA CANADA

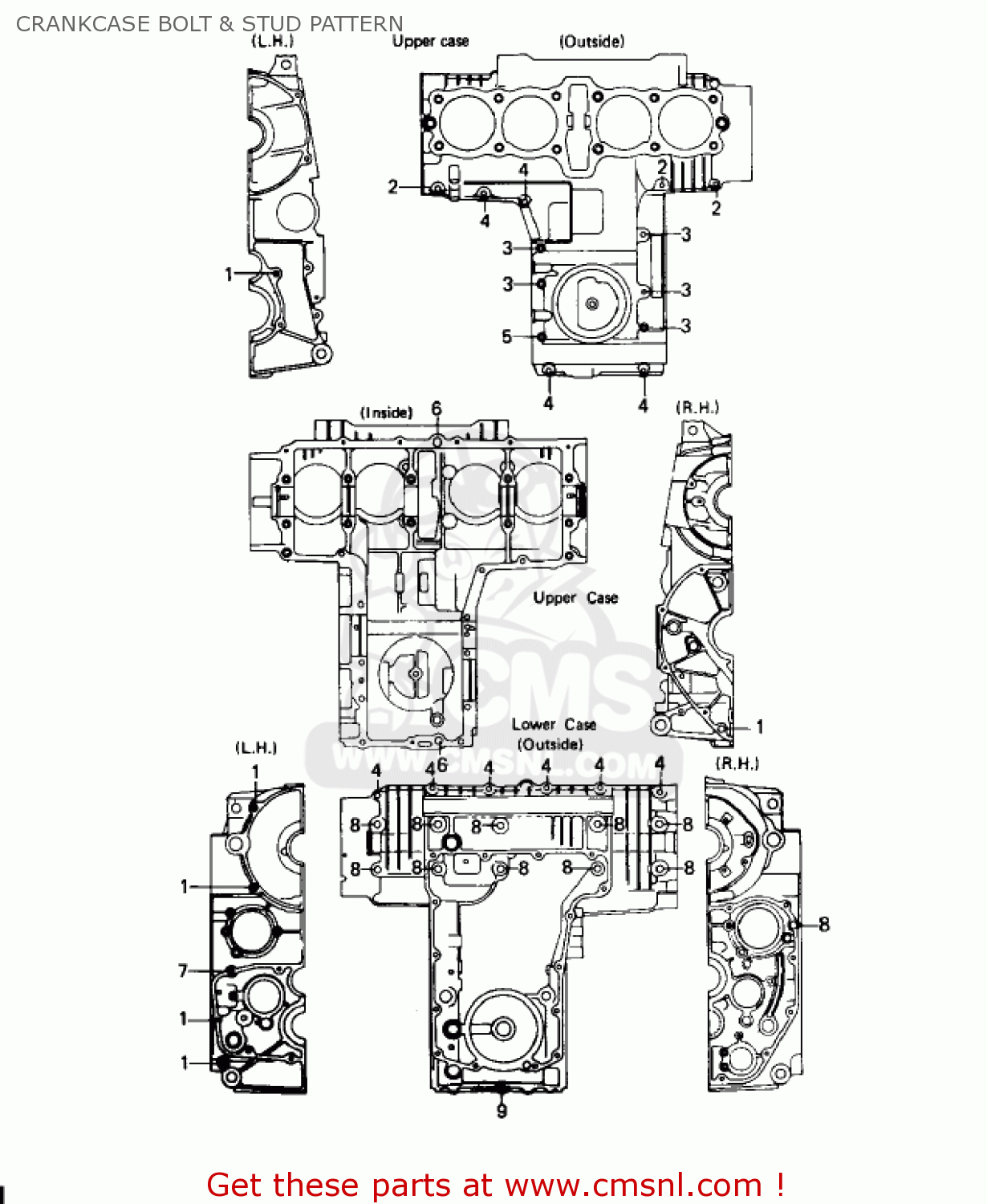

Crankcase bolt & stud pattern diagram KZ650D2 SR 1979 USA CANADA
CRANKCASE BOLT & STUD PATTERN KZ650D2 SR 1979 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92042007
ref: 1
PIN-DOWEL
€ 4.00
2
130G0650
ref: 2
BOLT-FLANGED,6X50
€ 1.00
3
92003111
ref: 3
BOLT-HEX HEAD,6X99
€ 2.00
4
920021881
ref: 4
ASTERISK (*) MARKED
BOLT, 6X43
€ 4.50
4
920021881
ref: 4
ASTERISK (*) MARKED
BOLT, 6X43
€ 4.50
4
920021881
ref: 4
BOLT, 6X43
€ 4.50
5
92003113
ref: 5
BOLT-HEX HEAD,6X116
€ 3.00
6
920431037
ref: 6
ASTERISK (*) MARKED
PIN,DOWEL,10X8.2X14
€ 0.50
6
920431037
ref: 6
ASTERISK (*) MARKED
PIN,DOWEL,10X8.2X14
€ 0.50
7
551A0614
ref: 7
PIN,DOWEL, 6X14
€ 2.50
8
130P0895
ref: 8
BOLT-FLANGED,8X95
€ 7.00
9
92003194
ref: 9
BOLT,6X105
€ 1.50
