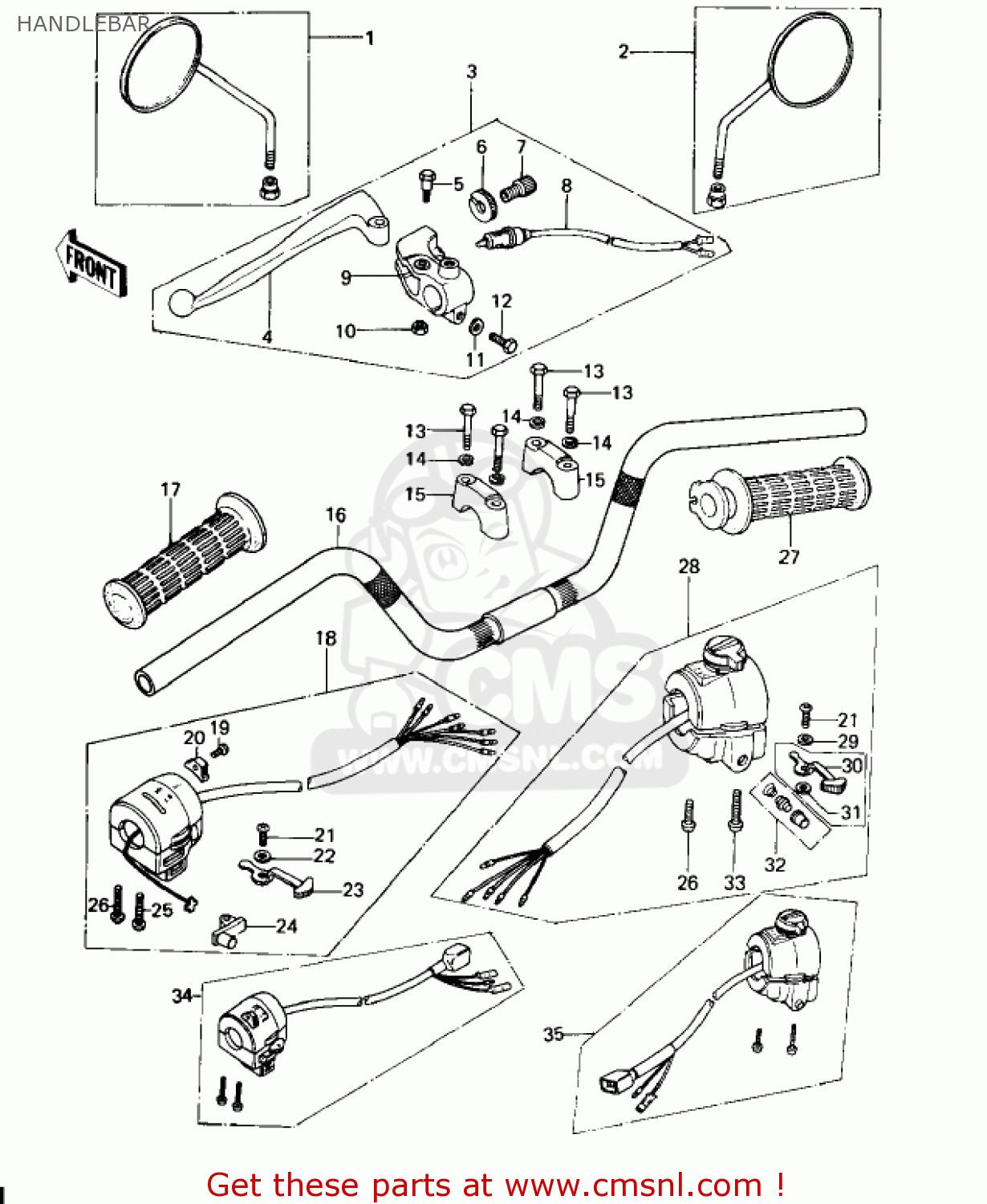

HANDLEBAR

ref

part #

description

quantity

1

560011027
ref: 1

MIRROR-ASSY,LH

€ 61.50

2

560011028
ref: 2

MIRROR-ASSY,RH

€ 66.00

3

46076054
ref: 3

LEVER-ASSY-GRIP,CLUTC

€ 101.00

4

46092023
ref: 4

LEVER-GRIP,CLUTCH

€ 17.00

5

92007047
ref: 5

BOLT,HEX HEAD

€ 6.50

6

46056007
ref: 6

NUT,CABLE ADJUST LOCK

€ 9.00

7

46055003
ref: 7

SCREW-CABLE ADJUST

€ 11.50

8

27043002
ref: 8

SWITCH,CLUTCH

€ 21.00

9

46094019
ref: 9

HOLDER,CLUTCH LEVER

€ 55.00

10

92017014
ref: 10

NUT,LOCK,6MM

€ 4.00

11

410B0600
ref: 11

WASHER-PLAIN-SMALL,6M

€ 0.50

12

110N0625
ref: 12

BOLT-HEX HEAD,6X25

€ 3.50

13

920011405
ref: 13

BOLT,8X38

€ 10.00

14

461F0800
ref: 14

WASHER-SPRING,8MM

€ 0.50

15

46012008
ref: 15

HOLDER-HANDLE,UPP

€ 23.00

16

460031018
ref: 16
KZ650-D1/D1A

HANDLEBAR

€ 87.50

16

460031029
ref: 16
KZ650-D2

HANDLEBAR

€ 82.00

17

46075028
ref: 17

GRIP,LH

€ 32.00

18

46091055
ref: 18
KZ650-D1/D1A

CASE ASSY, L.H

€ 70.00

19

221B0308A
ref: 19

SCREW-CNTSNK HD,3X8

€ 2.50

20

46044013
ref: 20

KNOB,LIGHTING SWITCH,

€ 8.00

21

220B0305A
ref: 21

SCREW-PAN HEAD,3X5

€ 1.00

22

92095010
ref: 22

WASHER

€ 2.50

23

46043005
ref: 23

KNOB-LIGHTING SW L.H

€ 6.50

24

46028007
ref: 24

HORN PUSH BUTTON

€ 66.00

25

220B0535
ref: 25

SCREW-PAN-CROS

€ 2.00

26

220B0530
ref: 26

SCREW-PAN-CROS

€ 2.00

27

46019038
ref: 27

GRIP-ASSY,THROTTLE

€ 80.50

28

460911031
ref: 28
KZ650-D1

HOUSING-ASSY-CONTROL,

€ 163.50

28

460911038
ref: 28
KZ650-D1A

CASE ASSY, R.H.

€ 75.00

28

460911038
ref: 28
KZ650-D1

CASE ASSY, R.H.

€ 75.00

29

410B0300
ref: 29

WASHER-PLAIN-SMALL,3M

€ 0.50

30

46043004
ref: 30
USE FOR 46091-1031

KNOB-LIGHTING SW R.H

€ 3.00

31

92095014
ref: 31
USE FOR 46091-1031

WASHER, PLAIN

€ 2.50

32

270101009
ref: 32

SWITCH ASSY,HORN BUTN

€ 5.50

33

220B0540
ref: 33

SCREW-PAN-CROS

€ 2.00

34

460911048
ref: 34
KZ650-D2

CONTROLLER HOUSING ASSEMBLY,LH

€ 146.00

35

460911047
ref: 35
KZ650-D2

HOUSING ASSY, CONT,RH

€ 118.50
