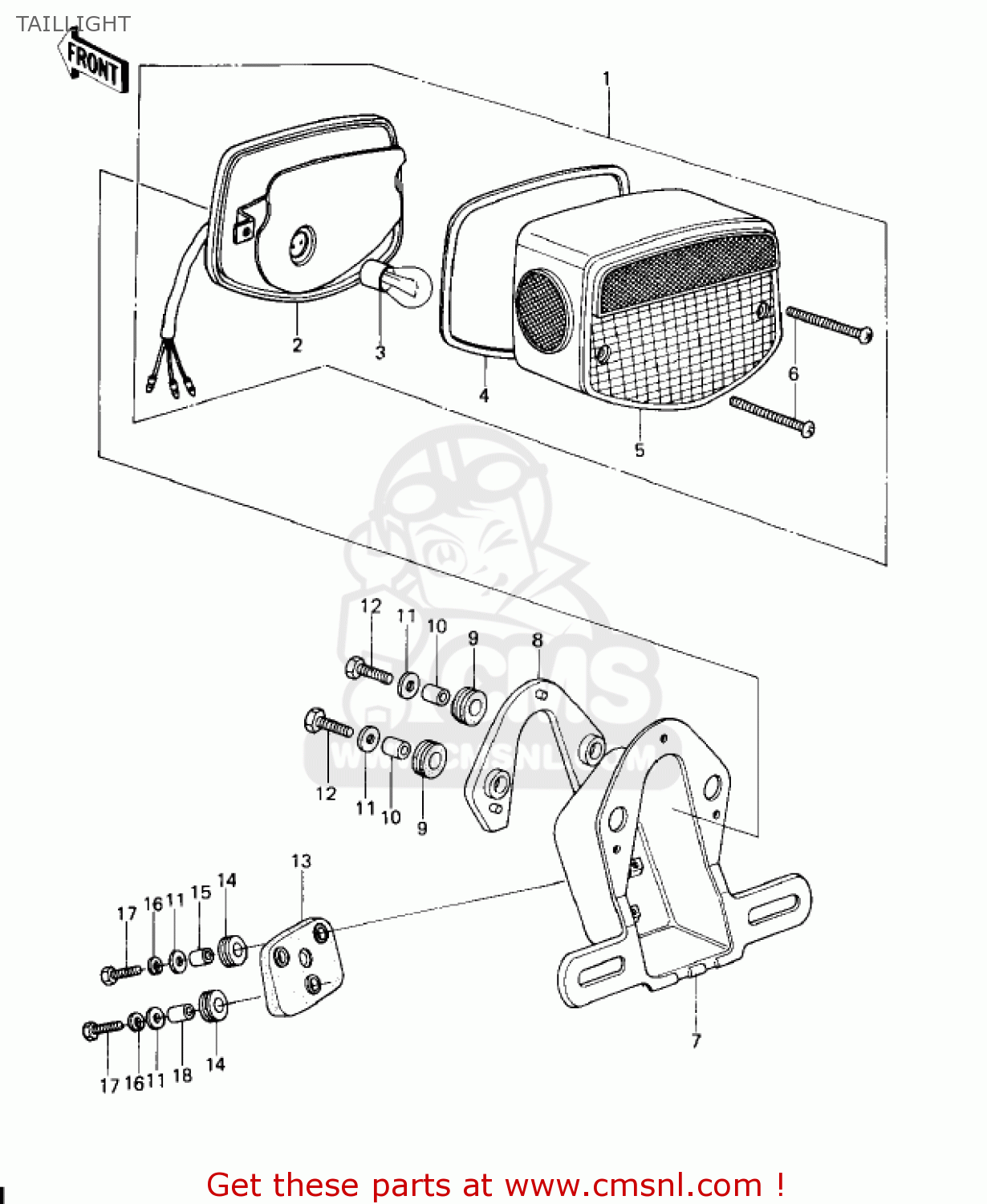

TAILLIGHT

ref

part #

description

quantity

1

23025064
ref: 1
"220-40781" MARK

LAMP-TAIL,220-40781MA

€ 139.00

2

23027041
ref: 2

BODY-COMP-TAIL LAMP

€ 96.00

3

92069059
ref: 3

BULB,12V 32/3CP

€ 5.50

4

23028021
ref: 4

GASKET,TAIL LAMP LENS (NAS)

€ 8.00

5

23026034
ref: 5

LENS,TAIL LAMP

€ 64.50

6

220R0460
ref: 6

SCREW-PAN-CROS

€ 3.00

7

230361005
ref: 7
"220-40839" MARK

TAIL LAMP BRACKET

€ 71.00

8

23066023
ref: 8

DAMPER

€ 10.50

9

23066020
ref: 9

DAMPER

€ 10.00

10

92027129
ref: 10

COLLAR,6.8X10X8.5

€ 3.00

11

92022125
ref: 11

WASHER,6.5X20X1.6

€ 1.00

12

112G0618
ref: 12

BOLT-UPSET

€ 0.50

13

920751055
ref: 13

TAIL LAMP DAMPER

€ 7.50

14

92075121
ref: 14

DAMPER,FENDER

€ 2.50

15

92027156
ref: 15

COLLAR-BATTERY CASE

€ 3.00

16

461F0600
ref: 16

WASHER-SPRING,6MM

€ 0.50

17

112G0625
ref: 17

BOLT-UPSET,6X25

€ 4.00

18

92027169
ref: 18

COLLAR,6.8X10X16

€ 4.00
