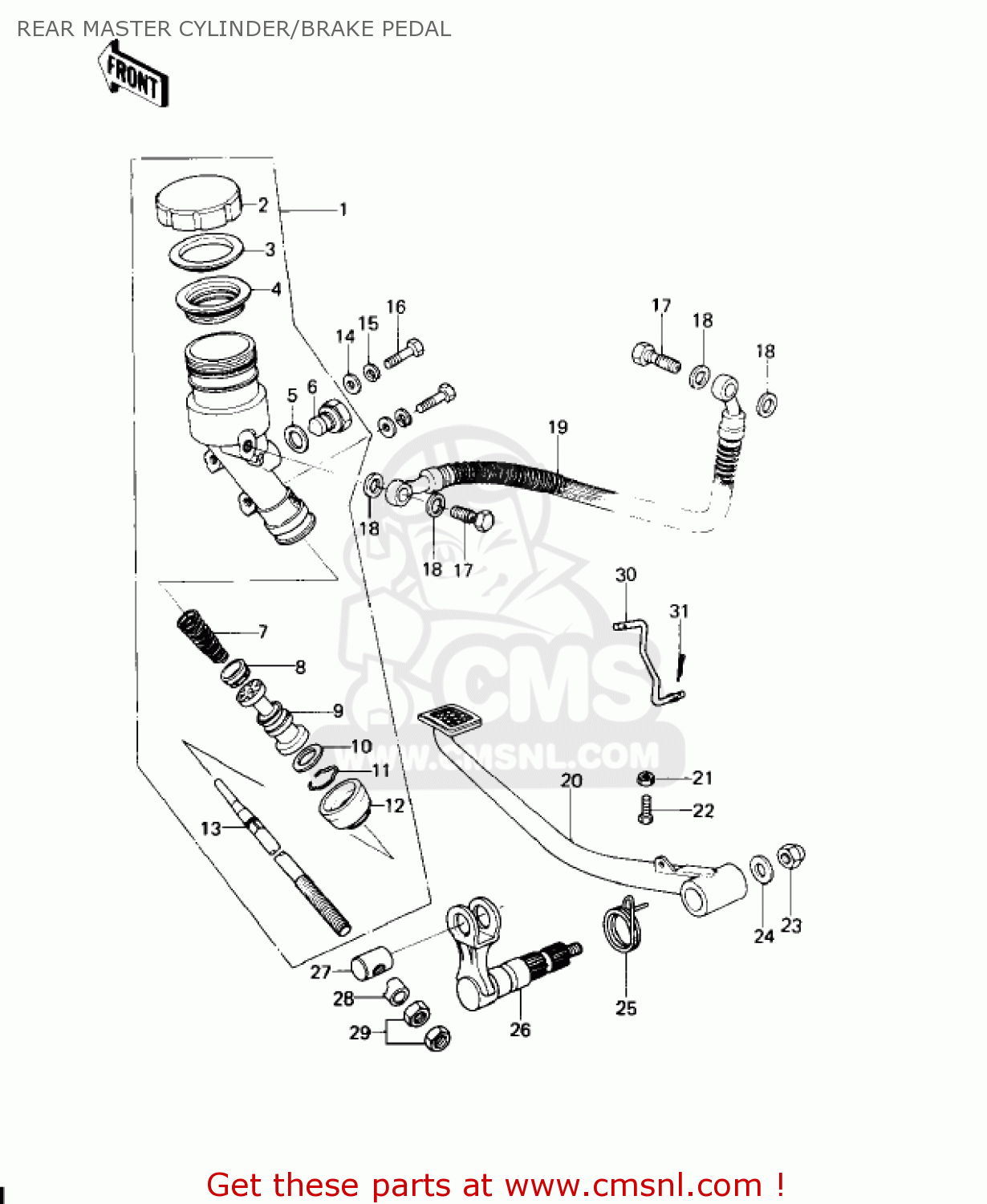

REAR MASTER CYLINDER/BRAKE PEDAL

ref

part #

description

quantity

1

430151005
ref: 1
"14 " MARK

CYLINDER ASSY,MSTR,RR

€ 240.00

2

43026004
ref: 2

CAP, OIL CUP

€ 20.50

3

43027001
ref: 3

PLATE-MASTER CYLINDER

€ 4.50

4

43028003
ref: 4

DIAPHRAGM

€ 14.00

5

43079002
ref: 5

GASKET

€ 6.00

6

920011073
ref: 6

BOLT

€ 8.00

7

43018001
ref: 7

SPRING ASSY-RETURN

€ 12.50

8

43019001
ref: 8

CUP-BRAKE

€ 8.50

9

430201007
ref: 9

PISTON-COMP-BRAKE

€ 50.00

10

43022002
ref: 10

STOPPER-BRAKE

€ 5.50

11

43024003
ref: 11

COVER-SEAL

€ 15.00

12

43024003
ref: 12

COVER-SEAL

€ 15.00

13

430111004
ref: 13

ROD-BRAKE

€ 39.00

14

411B0800
ref: 14

WASHER-PLAIN,8MM

€ 0.50

15

461F0800
ref: 15

WASHER-SPRING,8MM

€ 0.50

16

115G0830
ref: 16

BOLT-SMALL-UPSET,8X30

€ 3.00

17

920021888
ref: 17

BOLT,OIL,L=23

€ 3.50

18

43067001
ref: 18

WASHER,10.5X15X1.5

€ 1.50

19

430591006
ref: 19
L = 520M/M

HOSE,BRAKE

€ 93.50

20

430011009
ref: 20

LEVER-BRAKE,PEDAL

€ 88.00

21

311B0600
ref: 21
STOPPER

NUT,6MM

€ 0.50

22

112G0620
ref: 22
STOPPER

BOLT 6X20

€ 1.00

23

92019013
ref: 23

NUT,CAP,LOCK,8MM

€ 5.50

24

920221561
ref: 24

WASHER,8.5X20X1.6

€ 2.50

25

920811015
ref: 25

SPRING,BRAKE PEDAL

€ 6.00

26

430041002
ref: 26

SHAFT,BRAKE PEDAL

€ 13.50

27

920431003
ref: 27

PIN,BRAKE ROD

€ 2.00

28

920271019
ref: 28

COLLAR,BRAKE ROD

€ 5.50

29

315B1000
ref: 29

NUT,10MM

€ 0.50

30

270121003
ref: 30

HOOK,BRAKE SW SPRING

€ 3.00

31

550D1610
ref: 31

PIN-COTTER,1.6X10

€ 2.00
