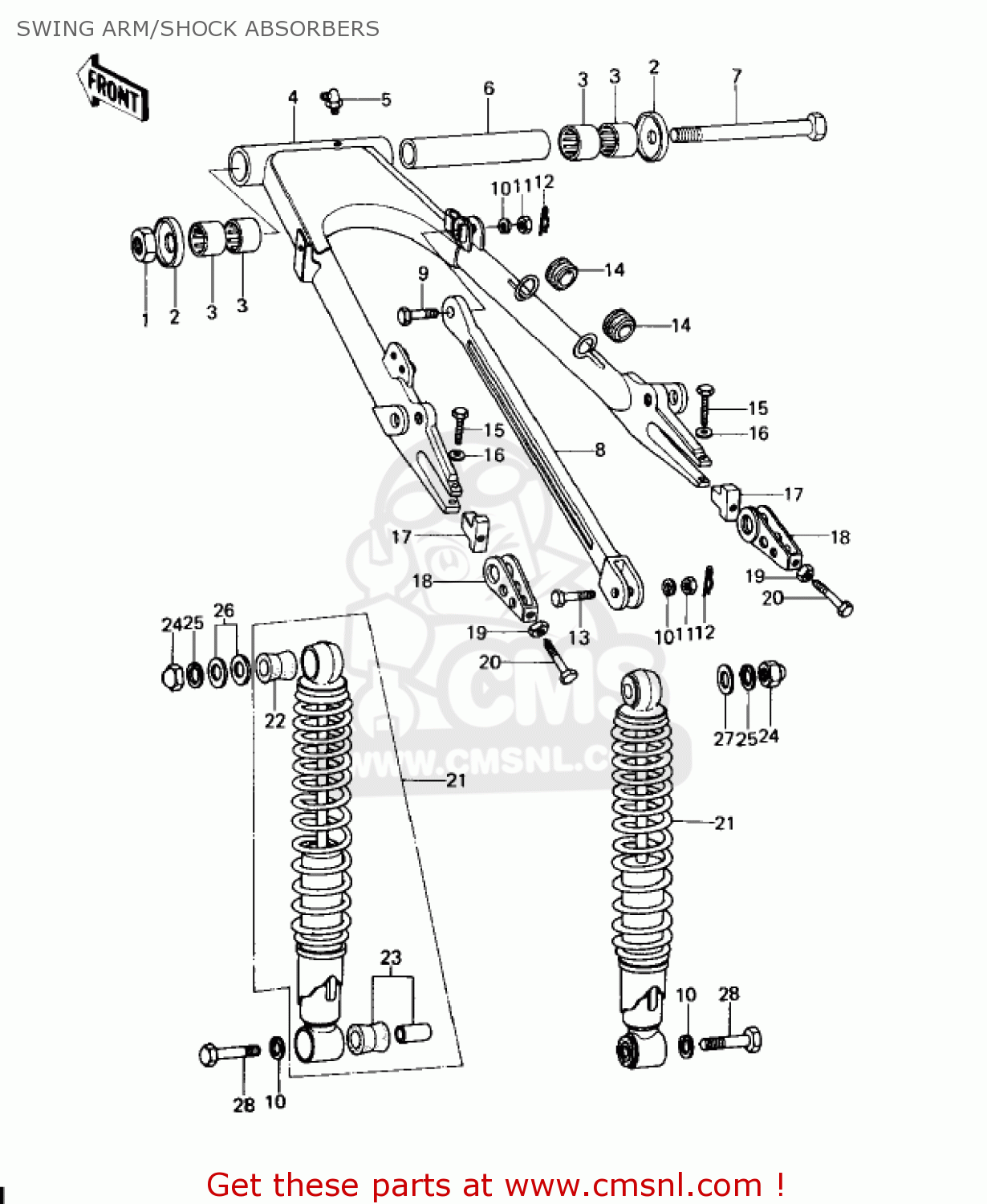

SWING ARM/SHOCK ABSORBERS

ref

part #

description

quantity

1

92019012
ref: 1

NUT,LOCK,16MM

€ 11.00

2

33035009
ref: 2

CAP,SWING ARM

€ 10.50

3

920461115
ref: 3

BEARING-NEEDLE,HK2216

€ 24.00

4

330011081
ref: 4
*INCLUDES REF. NO'S

ARM-COMP-SWING

€ 271.00

5

92005002
ref: 5

GREASE NIPPLE

€ 4.00

6

420361012
ref: 6

SLEEVE,16.1X22X225.5

€ 26.50

7

33032050
ref: 7

SHAFT-SWING ARM

€ 55.50

8

43007049
ref: 8

TORQUE LINK, REAR HUB

€ 36.50

9

92003218
ref: 9
FRONT

BOLT, HEX HEAD, 10X39

€ 5.50

10

461F1000
ref: 10

WASHER-SPRING,10MM

€ 0.50

11

314B1000
ref: 11

NUT,10MM

€ 0.50

12

554A0800
ref: 12

PIN-SNAP,8MM

€ 1.00

13

920011145
ref: 13
REAR

BOLT,10X47

€ 4.00

14

43064007
ref: 14

43064007

15

920011577
ref: 15

BOLT,FLANGED,8X35

€ 2.50

16

461F0800
ref: 16

WASHER-SPRING,8MM

€ 0.50

17

33044002
ref: 17

STOPPER,CHAIN ADJUSTE

€ 14.00

18

33040056
ref: 18

ADJUSTER-CHAIN

€ 16.50

19

312B0800
ref: 19

NUT,8MM

€ 0.50

20

920011399
ref: 20

BOLT,8X50

€ 6.00

21

450141009
ref: 21

SHOCK ABSORBER,REAR

€ 319.00

22

45017020
ref: 22

BUSHING,SHOCK ABSORB

€ 3.00

23

45017019
ref: 23

DAMPER,SHOCKABSORBER,

€ 13.00

24

92020014
ref: 24

NUT,CAP,12MM

€ 6.50

25

461F1200
ref: 25

WASHER-SPRING,12MM

€ 0.50

26

410B1200
ref: 26

WASHER-PLAIN-SMALL,12

€ 0.50

27

920221057
ref: 27

WASHER,12.5X22X4.5

€ 2.00

28

113N1035
ref: 28

BOLT-HEX HEAD,10X35

€ 6.00
