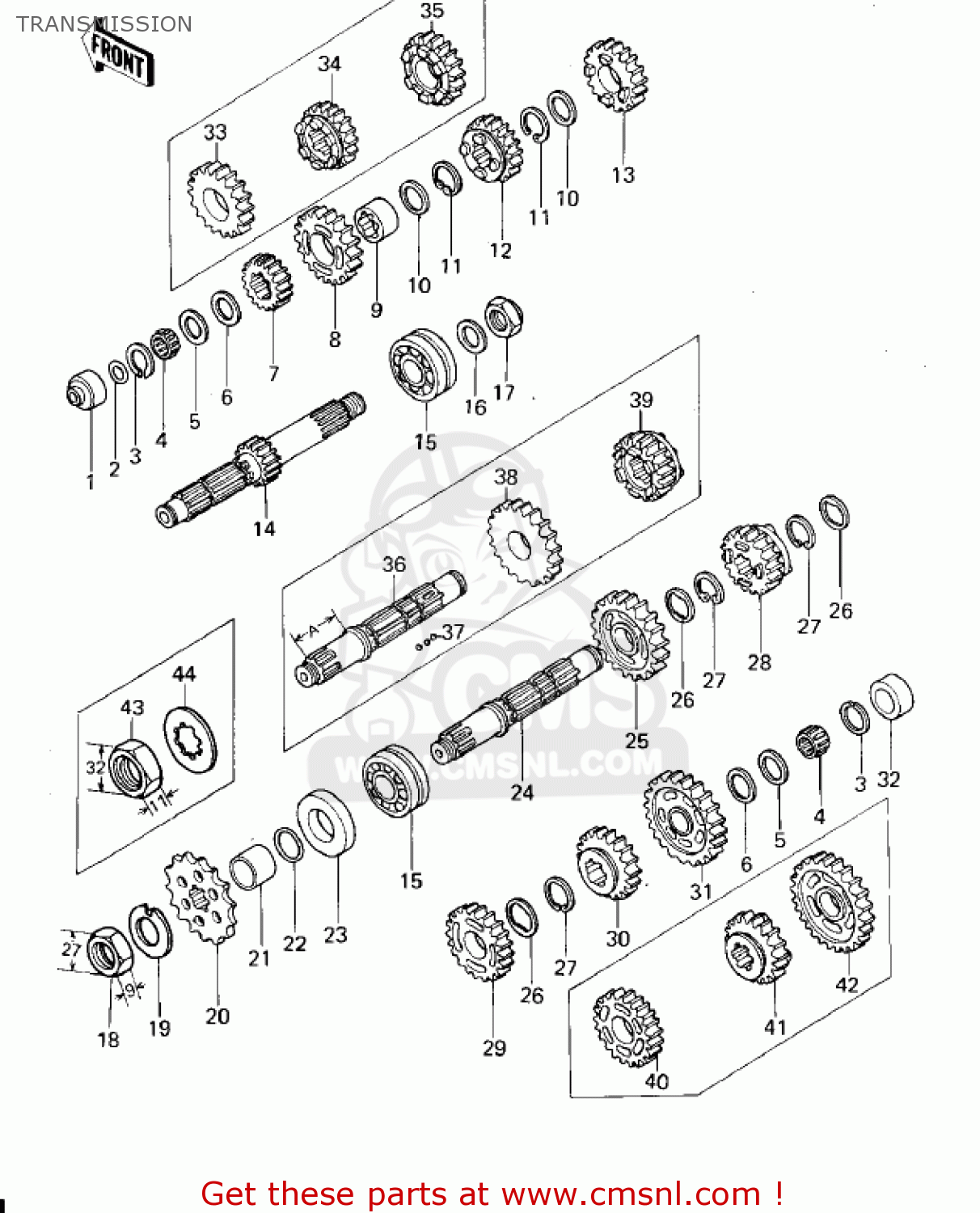

TRANSMISSION

ref

part #

description

quantity

1

92028179
ref: 1

BUSHING,INPUT SHAFT

€ 57.50

2

670B1507
ref: 2

O RING,7MM

€ 1.00

3

92033015
ref: 3

CIRCLIP

€ 2.50

4

920461030
ref: 4

BEARING-NEEDLE,VS20/1

€ 23.00

5

92022112
ref: 5
STEEL

WASHER,20.5X30X1,STEE

€ 6.00

5

92022144
ref: 5
STEEL

SHIM-KICK SHAFT

€ 4.50

5

920221026
ref: 5
STEEL

WASHER,20.3X30X0.7,ST

€ 4.00

6

92022113
ref: 6
PHOSPHOR-BRONZE

WASHER,20.5X30X1

€ 6.00

7

13130041
ref: 7

2ND GEAR,DRIVE

€ 69.50

8

13136060
ref: 8
KZ650-B1

TOP GEAR,DRIVE

€ 52.00

9

920281007
ref: 9

BUSHING,INPUT TOP GEA

€ 26.50

10

92022161
ref: 10

WASHER-THRUST,25MM

€ 7.00

11

92033026
ref: 11

CIRCLIP

€ 6.00

12

13132044
ref: 12
KZ650-B1

3RD GEAR,DRIVE

€ 67.00

13

13134029
ref: 13
KZ650-B1

4TH GEAR,DRIVE

€ 41.50

14

13127051
ref: 14
KZ650-B1

SHAFT,DRIVE

€ 89.50

15

92045035
ref: 15

BEARING-BALL,83993SH2

€ 66.50

16

92125002
ref: 16

WASHER,SPRING,20MM

€ 8.50

17

920151555
ref: 17

NUT,20MM

€ 9.00

18

92016028
ref: 18
USE FOR 13128-1005

NUT

€ 9.50

19

92024044
ref: 19
USE FOR 13128-1005

WASHER,CLAW,20.5X36X1

€ 8.00

20

13144063
ref: 20

SPROCKET-OUTPUT,16T

€ 34.00

20

131441009
ref: 20
RACING USE ONLY

SPROCKET-OUTPUT,17T(#

€ 29.00

21

92027288
ref: 21

COLLAR,25X32X23.5

€ 22.50

22

92055035
ref: 22

O RING

€ 3.00

23

92050024
ref: 23

OIL SEAL SC325210

€ 5.00

24

13128044
ref: 24
KZ650-B1

SHAFT,OUT PUT

€ 93.00

25

13131052
ref: 25
KZ650-B1

2ND GEAR,OUT PUT

€ 47.50

26

92024069
ref: 26

WASHER,TOOTHED,30.5X3

€ 3.50

27

480J3000
ref: 27

CIRCLIP-TYPE-C,30MM

€ 3.50

28

13137039
ref: 28
KZ650-B1

TOP GEAR,OUT PUT

€ 55.00

29

13133041
ref: 29
KZ650-B1

3RD GEAR,OUT PUT

€ 41.50

30

13135030
ref: 30
KZ650-B1

4TH GEAR,OUT PUT

€ 40.00

31

13129056
ref: 31
KZ650-B1

LOW GEAR,OUT PUT

€ 33.00

32

92028180
ref: 32

BUSHING,OUTPUT SFT

€ 21.50

33

131291045
ref: 33
KZ650-B2~

TOP GEAR,DRIVE SHAFT

€ 50.50

34

131291032
ref: 34
KZ650-B2~

3RD GEAR,DRIVE SHAFT

€ 90.00

35

131291044
ref: 35
KZ650-B2~

GEAR,INPUT 4TH,25T

€ 87.50

36

131285005
ref: 36
E/NO.046001~069730

SHAFT,OUTPUT

€ 135.00

36

131281012
ref: 36
E/NO.069731~

SHAFT,OUTPUT

€ 136.00

37

600A0500
ref: 37
KZ650-B2~

BALL-STEEL,5/32

€ 0.50

38

131291047
ref: 38
KZ650-B2~

2ND GEAR,OUTPUT SHAFT

€ 107.00

39

131291033
ref: 39
KZ650-B2~

TOP GEAR,OUTPUT SHAFT

€ 59.50

40

131291048
ref: 40
KZ650-B2~

3RD GEAR,OUTPUT SHAFT

€ 100.00

41

131291049
ref: 41
KZ650-B2~

4TH GEAR,OUTPUT SHAFT

€ 107.00

42

131291046
ref: 42
KZ650-B2~

GEAR,OUTPUT LOW,35T

€ 105.00

43

920151254
ref: 43
USE FOR 13128-1012

NUT,20MM

€ 10.50

44

922001065
ref: 44
USE FOR 13128-1012

WASHER

€ 4.50
