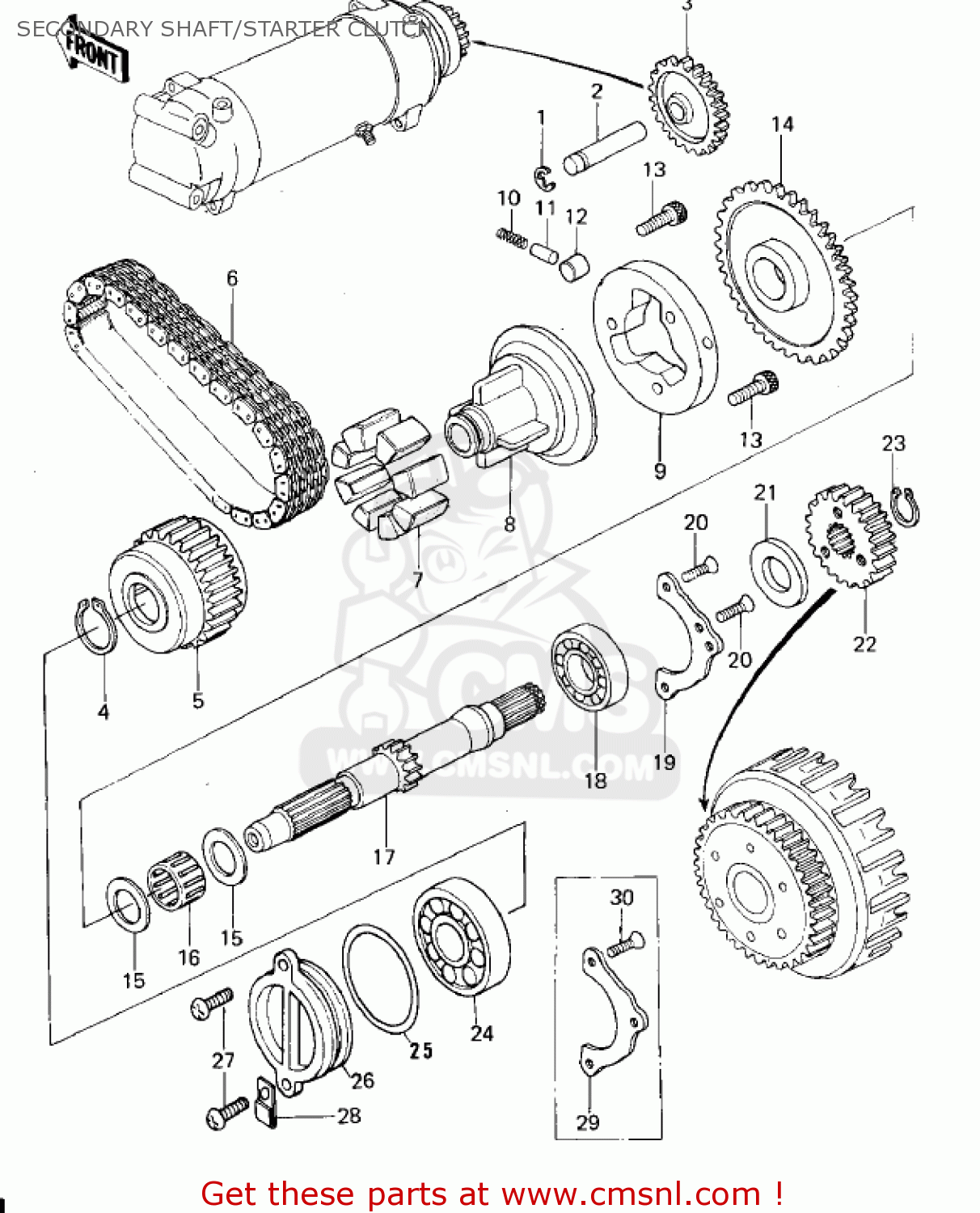

SECONDARY SHAFT/STARTER CLUTCH

ref

part #

description

quantity

1

482K0200
ref: 1

CIRCLIP-TYPE-E,12MM

€ 0.50

2

21143003
ref: 2

SHAFT,IDLE GEAR

€ 10.00

3

21167004
ref: 3
29T

GEAR-SPUR,IDLE,29T

€ 69.50

4

480J2800
ref: 4

CIRCLIP-TYPE-C,28MM

€ 3.50

5

13252001
ref: 5

COUPLING,OUTER,SECOND

€ 226.50

6

13122007
ref: 6

CHAIN,63-139X52L(TUBA

€ 325.50

7

13098029
ref: 7

DAMPER

€ 6.00

8

13253001
ref: 8

COUPLING,INNER,SECOND

€ 180.50

9

131931012
ref: 9

CLUTCH TARIER

€ 152.50

10

92081110
ref: 10

SPRING

€ 3.00

11

92043087
ref: 11

PIN

€ 8.00

12

92122004
ref: 12

ROLLER,15X13

€ 7.00

13

120P0812
ref: 13

BOLT,SOCKET,8X12

€ 2.50

14

120461032
ref: 14
58T

SPROCKET,STARTER,58T

€ 99.50

15

92026117
ref: 15

SPACER

€ 1.50

16

92046056
ref: 16

BEARING-NEEDLE,K25301

€ 24.00

17

13127054
ref: 17

SHAFT

€ 103.50

18

601B6305
ref: 18

BEARING-BALL,#6305C3

€ 30.00

19

140141007
ref: 19
KZ650-B1/B2/B2A

PLATE-POSITION,SECOND

€ 7.00

20

221B0620
ref: 20
KZ650-B1/B2/B2A

SCREW-CNTSNK HD,6X20

€ 0.50

21

92027263
ref: 21

COLLAR,23X46X4.5

€ 4.00

22

13121037
ref: 22
29T

GEAR, 29T

€ 101.50

23

480J2200
ref: 23

CIRCLIP-TYPE-C,22MM

€ 3.00

24

601B6304
ref: 24

BEARING-BALL,#6304C3

€ 31.00

25

670B3046
ref: 25

O RING,46MM

€ 3.50

26

920661019
ref: 26

PLUG,SECONDARY SHAFT,

€ 12.50

27

220B0620
ref: 27

SCREW-PAN HEAD,6X20

€ 2.50

28

21126008
ref: 28

CLAMP,WIRING HARNESS

€ 3.00

29

140141007
ref: 29
KZ650-B3

PLATE-POSITION,SECOND

€ 7.00

30

221B0620
ref: 30
KZ650-B3

SCREW-CNTSNK HD,6X20

€ 0.50

all assemblies
