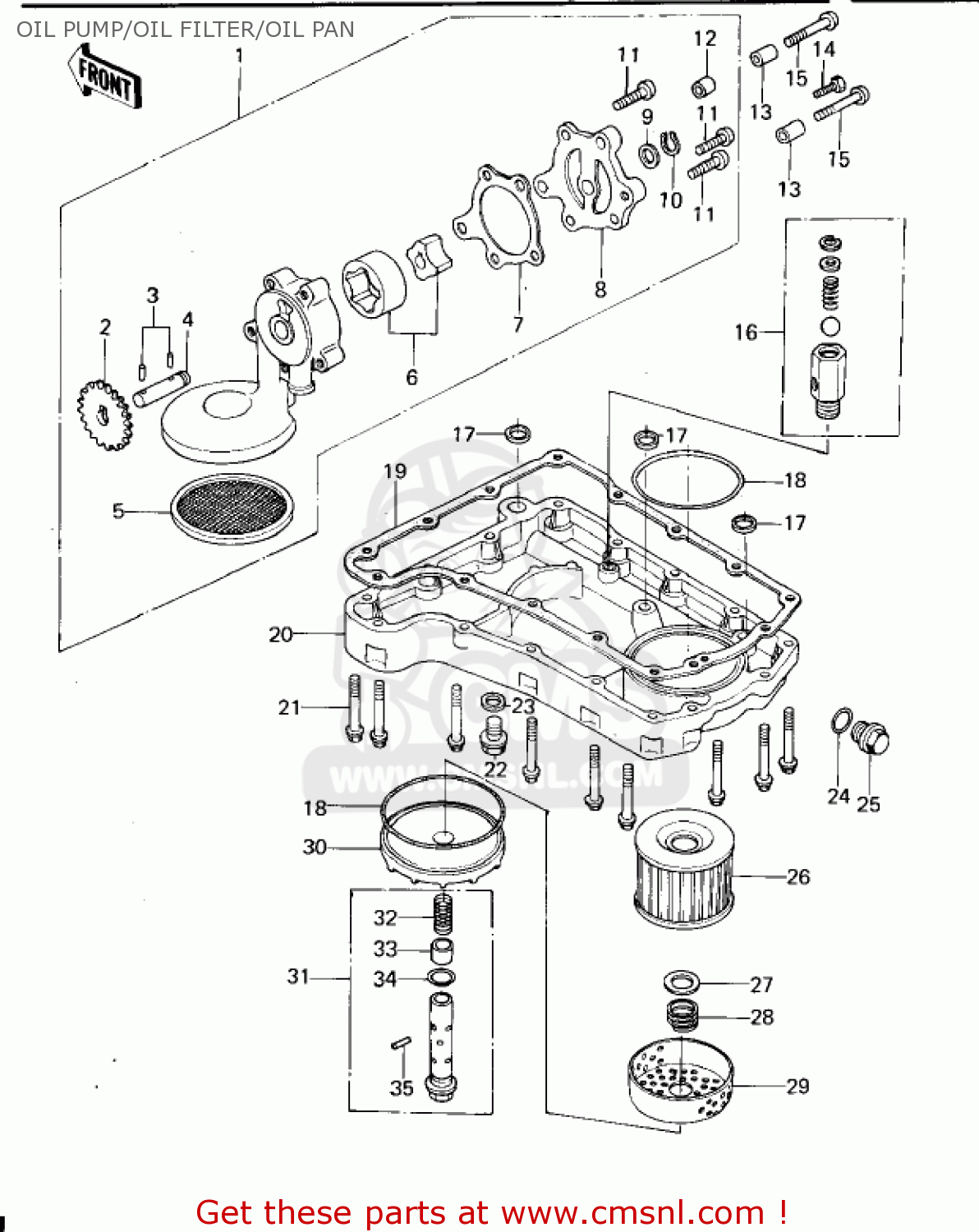

OIL PUMP/OIL FILTER/OIL PAN

ref

part #

description

quantity

1

16082064
ref: 1

PUMP-ASSY-OIL

€ 165.00

2

16085025
ref: 2
57T

GEAR, OIL PUMP, 57T

€ 31.50

3

92042041
ref: 3

PIN,DOWEL

€ 4.50

4

16086004
ref: 4

SHAFT,OIL PUMP

€ 17.00

5

16111004
ref: 5

FILTER,OIL PUMP

€ 23.50

6

16154003
ref: 6

ROTOR-PUMP

€ 47.50

7

16145004
ref: 7

GASKET,OIL PUMP COVER (NAS)

€ 2.50

8

16142005
ref: 8

COVER-PUMP

€ 24.00

9

92022311
ref: 9

WASHER,PLAIN

€ 2.50

10

480J1100
ref: 10

CIRCLIP-TYPE-C,11MM

€ 0.50

11

220B0622
ref: 11

SCREW-PAN HEAD,6X22

€ 2.50

12

920431302
ref: 12

PIN,DOWEL,8X10

€ 1.00

13

92042050
ref: 13

PIN, DOWEL, 6.2X8X28

€ 2.50

14

92001165
ref: 14

BOLT,HEX HEAD,6X45

€ 3.00

15

221B0650
ref: 15

SCREW, CONTRUNK HEAD

€ 2.50

16

161301001
ref: 16

VALVE-ASSY-RELIEF

€ 28.50

17

92055077
ref: 17
O.D.=19.5

O RING

€ 4.00

18

671B2590
ref: 18

O RING,90MM

€ 6.50

19

110091983
ref: 19

GASKET,OIL PAN (NAS)

€ 20.50

20

490345011
ref: 20

PAN-OIL

€ 125.00

21

130G0625
ref: 21

BOLT,FLANGED,6X25

€ 0.50

22

920661174
ref: 22

PLUG,OIL DRAIN,12X15

€ 4.00

23

92065097
ref: 23

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

24

920551146
ref: 24

RING-O

€ 5.50

25

92066066
ref: 25

PLUG

€ 7.00

26

16099003
ref: 26

FILTER,OIL

€ 6.50

27

92022144
ref: 27

SHIM-KICK SHAFT

€ 4.50

27

920221012
ref: 27

WASHER,20.5X30X1

€ 3.00

28

920811018
ref: 28

SPRING,OIL FILTER

€ 3.00

29

131691110
ref: 29

PLATE,OIL FILTER

€ 4.50

30

16101004
ref: 30

COVER,OIL FILTER

€ 31.00

31

161261108
ref: 31

VALVE,OIL FILTER

€ 29.00

32

92081133
ref: 32

SPRING,PISTON

€ 5.50

33

92136001
ref: 33

PISTON

€ 3.50

34

670B2016
ref: 34

O RING,16MM

€ 1.00

35

92043111
ref: 35

SPRING PIN

€ 4.00

all assemblies
