GEAR CHANGE MECHANISM
KZ650B3 1979 USA CANADA / MPH KPH

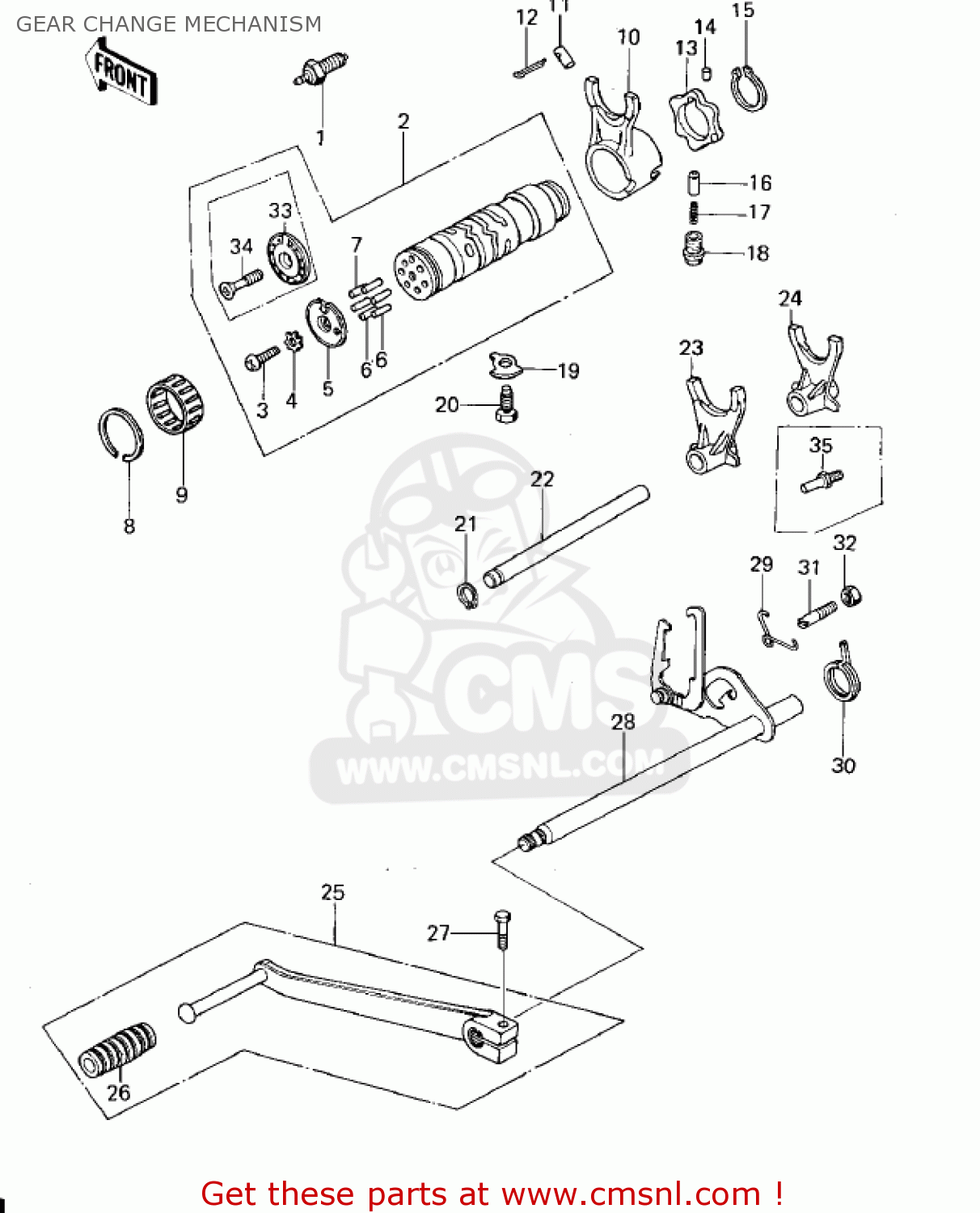

Gear change mechanism diagram KZ650B3 1979 USA CANADA / MPH KPH
GEAR CHANGE MECHANISM KZ650B3 1979 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
131515002
ref: 1
SWITCH,NEUTRAL
€ 22.50
2
132391005
ref: 2
E/NO.000101~045147
DRUM ASSY, SHIFT
€ 79.00
2
132391005
ref: 2
DRUM ASSY, SHIFT
€ 79.00
2
132391069
ref: 2
E/NO.046001~078381
DRUM-ASSY-CHANGE
€ 148.50
2
132391069
ref: 2
E/NO.078382~
DRUM-ASSY-CHANGE
€ 148.50
3
220B0614
ref: 3
USE FOR 13239-025/-1
SCREW-PAN HEAD,6X14
€ 2.00
4
464G0600
ref: 4
USE FOR 13239-025/-1
WASHER-TOOTHED,6MM
€ 2.50
5
13142020
ref: 5
USE FOR 13239-025/-1
PLATE, SHIFT DRUM PIN
€ 7.00
6
92042030
ref: 6
PIN,GEAR CHNGE DRUM
€ 2.50
7
92042014
ref: 7
PIN-GEAR CHANGE DRUM
€ 0.50
8
92033035
ref: 8
RING-SNAP,37MM
€ 4.00
9
92046051
ref: 9
BEARING-NEEDLE,37BTM4
€ 23.00
10
131401009
ref: 10
KZ650-B1
FORK-SHIFT,4TH&TOP
€ 79.00
10
131401009
ref: 10
KZ650-B2~
FORK-SHIFT,4TH&TOP
€ 79.00
11
92042021
ref: 11
PIN,DOWEL,8X18
€ 7.00
12
550D3020
ref: 12
PIN-COTTER,3.0X20
€ 2.00
13
131451058
ref: 13
CAM-CHANGE DRUM
€ 15.00
14
610A0406
ref: 14
ROLLER,4X6
€ 2.50
15
480J3000
ref: 15
CIRCLIP-TYPE-C,30MM
€ 3.50
16
92043076
ref: 16
PIN-NEUTRAL PISTON
€ 8.00
17
92081112
ref: 17
SPRING
€ 4.00
18
92001131
ref: 18
BOLT,10MM
€ 14.00
19
92024074
ref: 19
WASHER,LOCK,10MM
€ 2.50
20
92001174
ref: 20
BOLT, HEX HEAD, 10X26
€ 4.50
21
480J1200
ref: 21
CIRCLIP-TYPE-C,12MM
€ 0.50
22
490475003
ref: 22
ROD-SHIFT
€ 21.50
23
131401008
ref: 23
KZ650-B1
FORK-SHIFT,LOW,2ND&3R
€ 79.00
23
131401008
ref: 23
KZ650-B2~
FORK-SHIFT,LOW,2ND&3R
€ 79.00
24
13140069
ref: 24
KZ650-B1
SHIFT FORK,LOW
€ 46.50
24
131401008
ref: 24
KZ650-B2~
FORK-SHIFT,LOW,2ND&3R
€ 79.00
25
13242022
ref: 25
LEVER-ASSY-CHANGE,PED
€ 44.50
26
921601036
ref: 26
DAMPER,CHANGE PEDAL
€ 3.50
27
112G0620
ref: 27
BOLT 6X20
€ 1.00
28
13161042
ref: 28
LEVER-COMP-CHANGE SHA
€ 102.50
29
92083018
ref: 29
SPRING-KICK PAWL
€ 6.00
30
92083028
ref: 30
SPRING,CHG PEDL RTRN
€ 9.50
31
92043057
ref: 31
KZ650-B1/B2/B2A
PIN-CHANGE PEDAL SPRG
€ 6.00
32
312B0800
ref: 32
KZ650-B1/B2/B2A
NUT,8MM
€ 0.50
33
130911104
ref: 33
USE FOR 13239-1019
HOLDER,CHANGE DRUM PI
€ 16.50
34
221B0620
ref: 34
USE FOR 13239-1019
SCREW-CNTSNK HD,6X20
€ 0.50
35
920011401
ref: 35
KZ650-B3
BOLT,RETURN SPRING
€ 3.00
