TRANSMISSION

KZ440G1 1982 USA CANADA

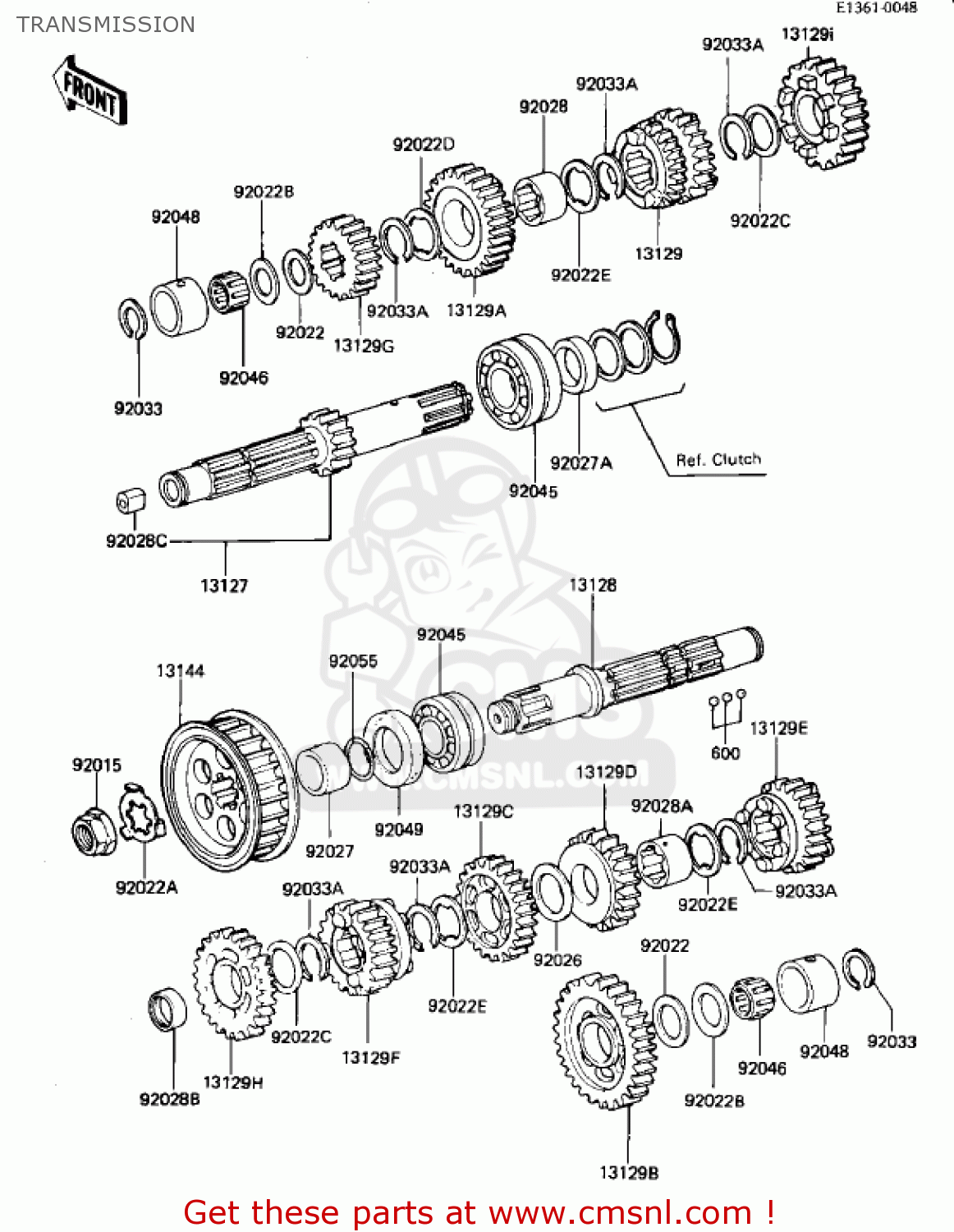

Transmission diagram KZ440G1 1982 USA CANADA

TRANSMISSION KZ440G1 1982 USA CANADA
TRANSMISSION KZ440G1 1982 USA CANADA
TRANSMISSION KZ440G1 1982 USA CANADA
prices are in EUR
ref
part #
description
quantity
13127
131271004
ref: 13127
SHAFT,DRIVE,13T
€ 109.50
13128
131281015
ref: 13128
SHAFT-TRANSMISSION OU
€ 256.50
13129
131291054
ref: 13129
3RD-4TH GEAR,DRIVE
€ 80.50
13129A
131291055
ref: 13129A
TOP GEAR,DRIVE SHAFT
€ 65.00
13129B
131291056
ref: 13129B
LOW GEAR,OUTPUT SHAFT
€ 61.00
13129C
131291058
ref: 13129C
3RD GEAR,OUTPUT SHAFT
€ 62.00
13129D
131291059
ref: 13129D
4TH GEAR OUTPUT
131291059
€ 47.50
13129E
131291060
ref: 13129E
5TH GEAR,OUTPUT SHAFT
€ 67.50
13129F
131291061
ref: 13129F
TOP GEAR,OUTPUT SHAFT
131291061
€ 40.00
13129G
131291062
ref: 13129G
2ND GEAR,DRIVE SHAFT
131291062
€ 30.00
13129H
131291172
ref: 13129H
2ND GEAR,OUTPUT,28T
€ 56.00
13129I
131291277
ref: 13129I
GEAR,INPUT5TH,23T
€ 67.00
13144
131441065
ref: 13144
SPROCKET-OUTPUT,24T
131441065
€ 67.50
92015
920151254
ref: 92015
NUT,20MM
920151254
€ 10.50
92022
92022112
ref: 92022
WASHER,20.5X30X1,STEE
92022112
€ 6.00
92022A
920221170
ref: 92022A
WASHER,CLAW
920221170
€ 3.50
92022B
92022144
ref: 92022B
SHIM-KICK SHAFT
92022144
€ 4.50
92022C
92022159
ref: 92022C
WASHER-THRUST,25MM
92022159
€ 5.50
92022D
92024033
ref: 92022D
WASHER,TOOTHED,25.5X3
92024033
€ 4.50
92022E
92024038
ref: 92022E
WASHER-LOCK
92024038
€ 4.00
92026
92026079
ref: 92026
WASHER,30X38X1
92026079
€ 6.00
92027
92027288
ref: 92027
COLLAR,25X32X23.5
92027288
€ 22.50
92027A
92027289
ref: 92027A
COLLAR
€ 10.00
92028
920281002
ref: 92028
BUSHING,TOP DRIVE
920281002
€ 26.00
92028A
920281268
ref: 92028A
BUSHING,OUTPUT GEAR
920281268
€ 21.00
92028B
920281177
ref: 92028B
BUSHING,2ND GEAR
920281177
€ 10.00
92028C
92028155
ref: 92028C
BUSHING,DRIVE SHAFT
92028155
€ 9.50
92033
92033015
ref: 92033
CIRCLIP
92033015
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
92033026
€ 6.00
92045
92045031
ref: 92045
BEARING-BALL,5205ANX4
92045031
€ 49.50
92046
92046044
ref: 92046
BEARING-NEEDLE,20R251
92046044
€ 23.00
92048
920481001
ref: 92048
RACE,OUTPUT AND DRIVE
920481001
€ 13.00
92049
92050024
ref: 92049
OIL SEAL SC325210
92050024
€ 5.00
92055
92055035
ref: 92055
O RING
92055035
€ 3.00
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
